Description

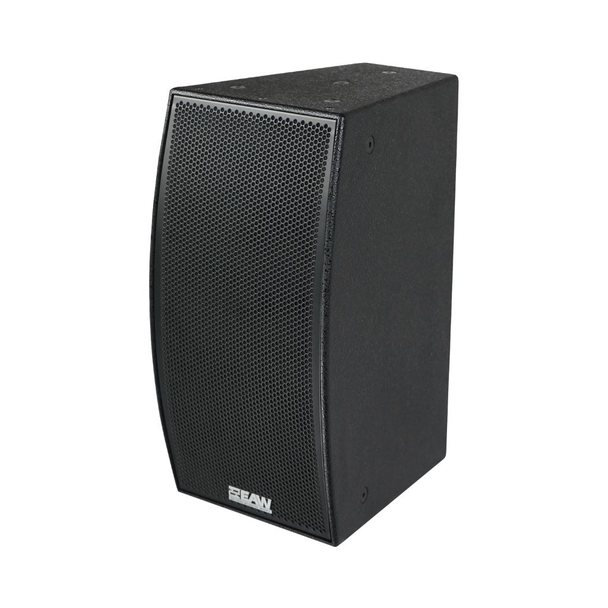

The EAW MKD864 is a passive professional loudspeaker within EAW's MKD family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue.
Features
- Driver configuration: LF: 2 × 8 in cone, 2 in voice coil, vented; HF: 1 × 1 in exit, 2 in compression driver, horn-loaded
- Operating range: 62 Hz–19 kHz
- Maximum SPL: 135 dB
- Nominal coverage: 60° Horizontal × 45° Vertical
- Power handling: 800 W @ 8 Ω
- Operating mode: Passive
Why We Like This
The MKD864 suits systems that keep amplification and processing centralized while using a purpose-built EAW loudspeaker at the coverage point.
FAQs
Q: Do I need a separate amplifier for the MKD864?
A: Yes. The MKD864 is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MKD864 to my amplifier?
A: The MKD864 connects through barrier strip; NL4. Check EAW's wiring and pinout information before making cables or terminations.
Q: Will the MKD864 cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Q: What mounting hardware do I need for the MKD864?
A: Mounting options for the MKD864 include 12 × M10 mounting points / Multi-Mount Pattern. Use EAW-approved hardware and have suspended installations designed by a qualified professional.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip; NL4 |
Driver Configuration: |
LF: 2 × 8 in cone, 2 in voice coil, vented; HF: 1 × 1 in exit, 2 in compression driver, horn-loaded |
EAW Technologies: |
EAW Focusing, Phase Aligned LF, Symmetry of Sources, Beamwidth Matched Crossovers |
Finish: |
White |
Input Impedance: |
LF/HF: 8 Ω |
Maximum SPL: |
135 dB |
Nominal Coverage: |
60° Horizontal × 45° Vertical |
Power Handling: |
800 W @ 8 Ω |
Product Height: |
21.6 in |
Product Length: |
13.8 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
10.8 in |
Rigging / Mounting: |
12 × M10 Mounting Points / Multi-Mount Pattern |
