Description

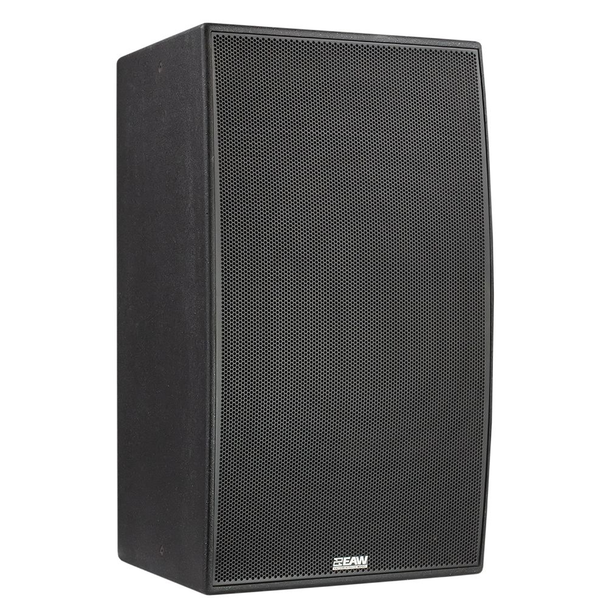

The EAW MKD1596-WP is a passive professional loudspeaker within EAW's MKD family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue. This ordering SKU is the WP weather-protected configuration.
Features
- Driver configuration: LF: 2 × 15 inch cone drivers; MF: horn-loaded compression midrange; HF: horn-loaded compression driver
- Operating range: 45 Hz–18 kHz
- Maximum SPL: 145 dB
- Nominal coverage: 90° horizontal × 60° vertical
- Weather protection: WP
- Operating mode: Bi-amp
Why We Like This
The MKD1596-WP is a practical choice when a project calls for this loudspeaker platform in its documented weather-protected configuration.
FAQs
Q: Do I need a separate amplifier for the MKD1596-WP?
A: Yes. The MKD1596-WP is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MKD1596-WP to my amplifier?
A: The MKD1596-WP connects through terminal block. Check EAW's wiring and pinout information before making cables or terminations.
Q: Will the MKD1596-WP cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Q: Is the MKD1596-WP designed for outdoor installations?
A: The MKD1596-WP is weather-protected. Follow EAW's limits for exposure, mounting orientation, drainage, and connector protection when using it outdoors.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Terminal block |
Driver Configuration: |
LF: 2 × 15 inch cone drivers; MF: horn-loaded compression midrange; HF: horn-loaded compression driver |
EAW Technologies: |
EAW Focusing, Phase Aligned LF, Symmetry of Sources, Beamwidth Matched Crossovers |
Finish: |
Black |
Maximum SPL: |
145 dB |
Nominal Coverage: |
90° horizontal × 60° vertical |
Product Height: |
935 mm |
Product Length: |
600 mm |
Product Type: |
Passive Loudspeaker |
Product Width: |
580 mm |
Weather Protection: |
WP |
