Description

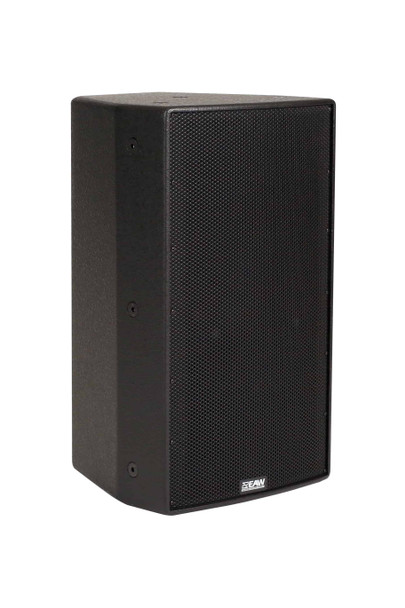

The EAW MK8126iMT is a passive professional loudspeaker within EAW's MK family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue. This ordering SKU is the transformer-equipped configuration.
Features
- Driver configuration: LF: 1 × 8 in cone; HF: 1 × 1 in exit/1.5 in voice coil compression driver on CD horn
- Operating range: 65 Hz–19 kHz
- Maximum SPL: 130 dB
- Nominal coverage: 120° Horizontal × 60° Vertical
- Power handling: Full Range: 300 W @ 8 Ω
- Operating mode: Passive
Why We Like This
The MK8126iMT gives system designers a factory transformer-equipped version for projects that call for distributed-voltage loudspeaker infrastructure.
FAQs
Q: Do I need a separate amplifier for the MK8126iMT?
A: Yes. The MK8126iMT is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MK8126iMT to my amplifier?
A: The MK8126iMT connects through barrier strip; NL4. Check EAW's wiring and pinout information before making cables or terminations.
Q: Can the MK8126iMT connect to a distributed speaker system?
A: Yes. The MK8126iMT has a transformer for distributed speaker systems. Confirm the available taps and wiring before installation.
Q: Will the MK8126iMT cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Q: What mounting hardware do I need for the MK8126iMT?
A: Mounting options for the MK8126iMT include U-Bracket. Use EAW-approved hardware and have suspended installations designed by a qualified professional.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Barrier strip; NL4 |
Driver Configuration: |
LF: 1 × 8 in cone; HF: 1 × 1 in exit/1.5 in voice coil compression driver on CD horn |
EAW Technologies: |
EAW Focusing, Beamwidth Matched Crossovers |
Finish: |
Black |
Frequency Response: |
60 Hz–18 kHz |
Input Impedance: |
LF/HF: 8 Ω |
Maximum SPL: |
130 dB |
Nominal Coverage: |
120° Horizontal × 60° Vertical |
Power Handling: |
Full Range: 300 W @ 8 Ω |
Product Height: |
19.75 in |
Product Length: |
11.03 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
11.75 in |
Rigging / Mounting: |
U-Bracket |
Transformer Equipped: |
Yes |
Transformer Rated Power: |
128 W |
