Description

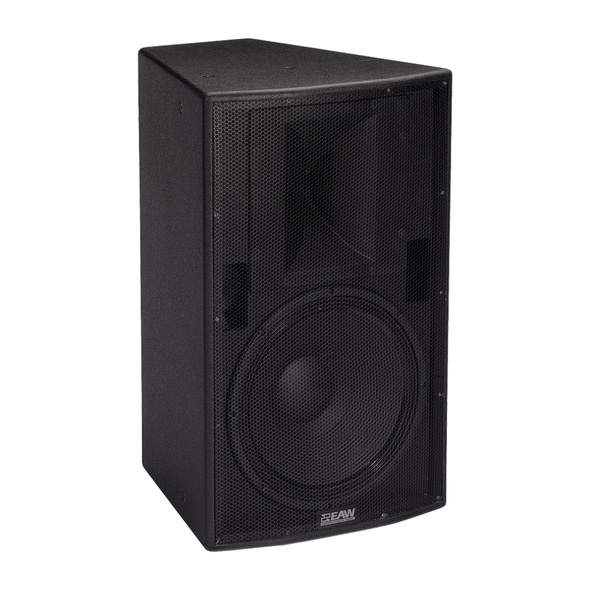

The EAW MK5399i-WP is a passive professional loudspeaker within EAW's MK family for sound reinforcement and installed audio. It fits engineered systems where coverage, external amplification, and processing are selected for the venue. This ordering SKU is the WP weather-protected configuration.
Features
- Driver configuration: LF: 1 × 15 in cone; HF: 1 × 1.4 in exit, 3 in voice coil compression drive
- Operating range: 48 Hz–18 kHz
- Maximum SPL: 139 dB
- Nominal coverage: 90° H × 90° V
- Power handling: Full Range: 800 W @ 8 Ω; LF: 800 W @ 8 Ω; HF: 150 W @ 8 Ω
- Weather protection: WP
Why We Like This
The MK5399i-WP is a practical choice when a project calls for this loudspeaker platform in its documented weather-protected configuration.
FAQs
Q: Do I need a separate amplifier for the MK5399i-WP?
A: Yes. The MK5399i-WP is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the MK5399i-WP to my amplifier?
A: The MK5399i-WP connects through 6-pin terminal strip input/output. Check EAW's wiring and pinout information before making cables or terminations.
Q: Will the MK5399i-WP cover my audience area?
A: That depends on the room, aiming, and seating geometry. Model the coverage before deciding speaker placement and quantity.
Q: Is the MK5399i-WP designed for outdoor installations?
A: The MK5399i-WP is weather-protected. Follow EAW's limits for exposure, mounting orientation, drainage, and connector protection when using it outdoors.
Q: What mounting hardware do I need for the MK5399i-WP?
A: Mounting options for the MK5399i-WP include 15 × 3/8 in-16 mounting points and 4 × 5/16 in-18 Multimount MM-120 Points. Use EAW-approved hardware and have suspended installations designed by a qualified professional.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
6-pin terminal strip input/output |
Driver Configuration: |
LF: 1 × 15 in cone; HF: 1 × 1.4 in exit, 3 in voice coil compression drive |
EAW Technologies: |
EAW Focusing, Beamwidth Matched Crossovers |
Enclosure Material: |
Exterior grade Baltic birch plywood with wear-resistant textured black paint |
Finish: |
White |
Frequency Response: |
48 Hz–19 kHz |
Input Impedance: |
LF/HF: 8 Ω; LF: 8 Ω; HF: 8 Ω |
Maximum SPL: |
139 dB |
Nominal Coverage: |
90° H × 90° V |
Power Handling: |
Full Range: 800 W @ 8 Ω; LF: 800 W @ 8 Ω; HF: 150 W @ 8 Ω |
Product Height: |
30 in |
Product Length: |
19.73 in |
Product Type: |
Passive Loudspeaker |
Product Width: |
18.71 in |
Rigging / Mounting: |
15 × 3/8 in-16 Mounting Points and 4 × 5/16 in-18 Multimount MM-120 Points |
Weather Protection: |
WP |
