Description

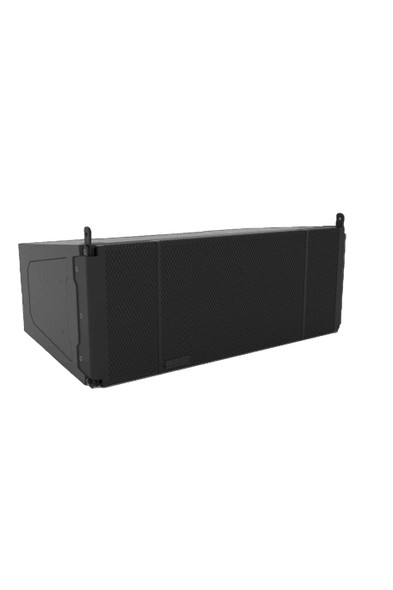

The EAW KF810P|110-WHITE is a passive line-array loudspeaker within EAW's KF800 family for scalable professional sound-reinforcement systems. It fits engineered arrays in which coverage, processing, and system deployment are planned together. This ordering SKU is the specified horizontal-coverage configuration.
Features
- Driver configuration: LF: 2 × 10 in, 3.0 in VC; MF: 4 × 5 in, 1.7 in VC; HF: 2 × 1.4 in exit, 3 in VC
- Operating range: 50 Hz to 20 kHz
- Maximum SPL: 145 dB
- Nominal coverage: 110° H × 10° V
- Power handling: LF: 1000 W @ 8 Ω; MF/HF: 500 W @ 8 Ω
- Operating mode: Bi-amp LF and MF/HF; external DSP with EAW Focusing
Why We Like This
The KF810P|110-WHITE lets the system designer choose the coverage version that best matches the audience geometry.
FAQs
Q: Do I need a separate amplifier for the KF810P|110?
A: Yes. The KF810P|110 is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the KF810P|110 to my amplifier?
A: The KF810P|110 connects through pluggable Phoenix-style terminal; barrier strip. Check EAW's wiring and pinout information before making cables or terminations.
Q: What do I need to add the KF810P|110 to an array?
A: Plan the array in EAW software and confirm external amplification, processing, signal distribution, and approved rigging hardware before deployment.
Q: Which rigging hardware should I use with the KF810P|110?
A: Mounting options for the KF810P|110 include 3-Point integrated rigging. Use EAW-approved hardware and have suspended installations designed by a qualified professional.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
Pluggable Phoenix-style terminal; Barrier strip |
Driver Configuration: |
LF: 2 × 10 in, 3.0 in VC; MF: 4 × 5 in, 1.7 in VC; HF: 2 × 1.4 in exit, 3 in VC |
EAW Technologies: |
EAW Focusing, Isophasic Waveguide, Phase Aligned LF, Symmetry of Sources, Concentric Summation Array (CSA) |
Finish: |
White |
Input Impedance: |
LF: 8 Ω; MF/HF: 8 Ω |
Maximum SPL: |
145 dB |
Nominal Coverage: |
110° H × 10° V |
Power Handling: |
LF: 1000 W @ 8 Ω; MF/HF: 500 W @ 8 Ω |
Product Height: |
12.6 in |
Product Length: |
17.4 in |
Product Type: |
Passive Line Array Loudspeaker |
Product Width: |
32.9 in |
Rigging / Mounting: |
3-Point Integrated Rigging |
