Description

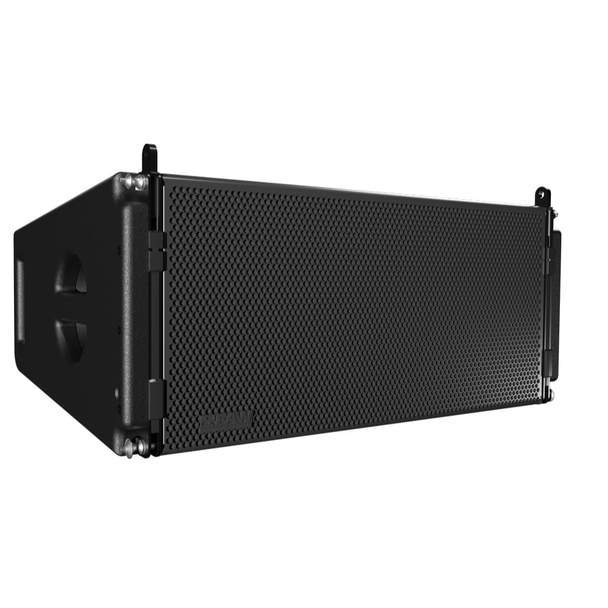

The EAW KF210 is a passive line-array loudspeaker within EAW's NTX/SBX/KF210 family for scalable professional sound-reinforcement systems. It fits engineered arrays in which coverage, processing, and system deployment are planned together.
Features
- Driver configuration: LF: 2 × 10 in cone, 2.5 in VC, vented; HF: 1 × 1.4 in exit, 3 in VC compression drivers Isophasic Wave Guide
- Operating range: 55 Hz–18 kHz
- Maximum SPL: 141 dB
- Nominal coverage: 90° H × 12° V
- Power handling: LF/HF: 500 W @ 8 Ω; LF: 600 W @ 8 Ω; HF: 150 W @ 8 Ω
- Operating mode: Single-amp LF; DSP with EAW DynO
Why We Like This
The KF210 suits systems that keep amplification and processing centralized while using a purpose-built EAW loudspeaker at the coverage point.
FAQs
Q: Do I need a separate amplifier for the KF210?
A: Yes. The KF210 is passive and needs external amplification. Match the amplifier and processing to EAW's guidance for the speaker.
Q: How do I connect the KF210 to my amplifier?
A: The KF210 connects through NL4. Check EAW's wiring and pinout information before making cables or terminations.
Q: What do I need to add the KF210 to an array?
A: Plan the array in EAW software and confirm external amplification, processing, signal distribution, and approved rigging hardware before deployment.
Q: Which rigging hardware should I use with the KF210?
A: Mounting options for the KF210 include 3-Point integrated rigging. Use EAW-approved hardware and have suspended installations designed by a qualified professional.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Connections: |
NL4 |
Driver Configuration: |
LF: 2 × 10 in cone, 2.5 in VC, vented; HF: 1 × 1.4 in exit, 3 in VC compression drivers Isophasic Wave Guide |
EAW Technologies: |
EAW Focusing, DynO, Isophasic Waveguide, Symmetry of Sources, Beamwidth Matched Crossovers |
Finish: |
White |
Input Impedance: |
LF/HF: nominal 8 Ω, minimum 5.3 Ω @ 330 Hz; LF: nominal 8 Ω, minimum 6.4 Ω @ 440 Hz; HF: nominal 8 Ω, minimum 8 Ω @ 4400 Hz |
Maximum SPL: |
141 dB |
Nominal Coverage: |
90° H × 12° V |
Power Handling: |
LF/HF: 500 W @ 8 Ω; LF: 600 W @ 8 Ω; HF: 150 W @ 8 Ω |
Product Height: |
12.3 in |
Product Length: |
20.5 in |
Product Type: |
Passive Line Array Loudspeaker |
Product Width: |
28.3 in |
Recommended High-Pass Filter: |
50 Hz, 12 dB/octave Butterworth |
Rigging / Mounting: |
3-Point Integrated Rigging |
