Description

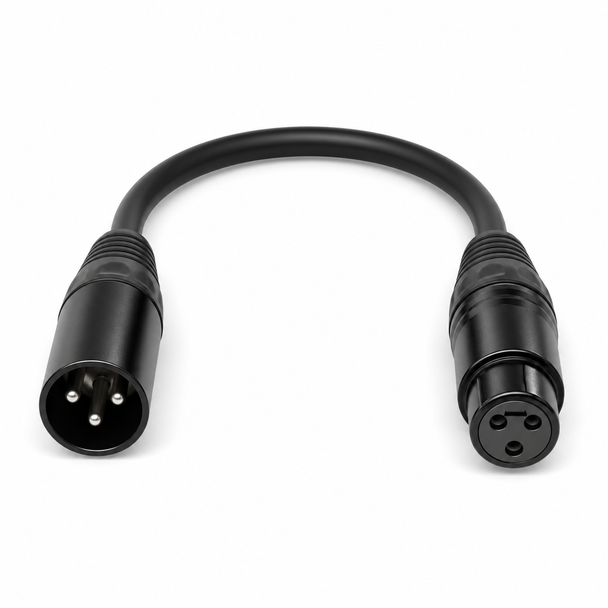

The EAW 2071291 is a short male-to-female XLR cable for linking balanced analog audio between adjacent AC6 column loudspeakers. It connects an AC6 male XLR loop-through output to a female XLR input on the next cabinet, allowing the same analog source to feed additional AC6 modules.
Features
- Balanced analog-audio link cable for EAW AC6 loudspeakers
- Male-to-female XLR connector configuration
- Connects an AC6 analog loop-through output to the next AC6 input
- 6-inch / 16 cm nominal cable length
- Designed for short inter-cabinet analog signal links
- Listed by EAW distributor SFM as item XLR-06
- AC6 loudspeakers are not included
Why We Like This
It provides a compact analog-audio jumper for adjacent AC6 cabinets while avoiding excess cable at the array connection point.
FAQs
Q: What does the EAW 2071291 connect?
A: It connects the male analog loop-through output of one AC6 to a female analog input on another AC6.
Q: What signal does this cable carry?
A: It carries balanced analog line-level audio. It is not the AC mains or Dante network cable.
Q: Can it pass one analog source to another AC6?
A: Yes. EAW documents the male XLR as a loop-through output for feeding the same analog input signal to additional modules.
Q: Are the loudspeakers included?
A: No. SKU 2071291 is the XLR link cable only.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Product Type: |
Balanced Analog Audio Link Cable |
Distributor Item Name: |
XLR-06 |
Compatibility: |
EAW AC6 column loudspeaker |
Function: |
Links an AC6 analog loop-through output to another AC6 analog input |
Connector A: |
XLR male |
Connector B: |
XLR female |
Cable Length: |
6 in / 16 cm nominal |
Signal Type: |
Balanced analog line-level audio |
Power or Network Data Support: |
No |
Loudspeaker Included: |
No |
