Description

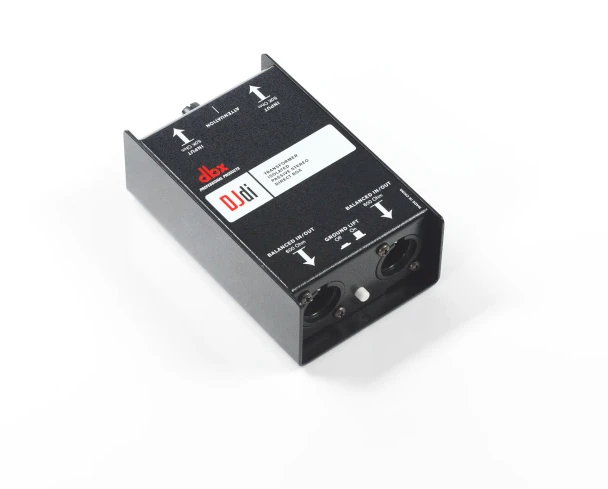

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
Features
- Dual Channel
- (2) 1/4” 50k Ohm TS Inputs
- (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
- Passive Circuit Design
- Continuously Variable Input Attenuator
- Ground Lift Switch
Why We Like This
It provides a dependable way to send instrument or playback signals over balanced lines while reducing hum, noise, and impedance-matching problems.
FAQs
Q: Is the dbx DJDI active or passive?
A: It is a passive direct box.
Q: What does the dbx DJDI do?
A: It converts unbalanced instrument or playback signals to balanced outputs for longer, lower-noise cable runs into a mixer, stage box, or recording interface.
Q: Does the dbx DJDI include ground-lift or attenuation controls?
A: The published feature set includes application-specific ground, pad, or level controls; see the features and specifications for this exact model.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
dbx |
Circuit: |
Passive |
Country of Origin: |
CN |
DIM H (in.): |
5.5 |
DIM L (in.): |
2 |
DIM W (in.): |
3.25 |
Input Connectors: |
1/4” TS (Tip Hot, Sleeve Ground) |
Input Impedance: |
50 kOhm |
Input Type: |
Unbalanced, RF Filtered |
Inputs: |
2 |
Insertion Loss: |
21dB typical |
Link: |
https://dbxpro.com/en-US/products/djdi |
MAP: |
85 |
MSRP: |
105 |
Model: |
DJDI |
Noise Level: |
-104dBu (22Hz -22kHz, Input Shorted) |
Output Connectors: |
Male XLR, Balanced, Pin 2 hot |
Output Impedance: |
600 Ohms |
Outputs: |
2 |
Product Description Long: |
2-channel passive direct box that converts unbalanced signals into balanced output for use with mixers, PAs, recording consoles and more |
Product Description Short: |
Accessories |
Product Type: |
2-Channel Passive Direct Box |
SKU: |
DBXDJDI |
TAA Compliance: |
Non Compliant |
THD+N (10Hz-22kHz): |
0.23% typical @ +4dBu @ 1kHz |
UPC: |
691991002083 |
Weight (lb.): |
2 |
