Description

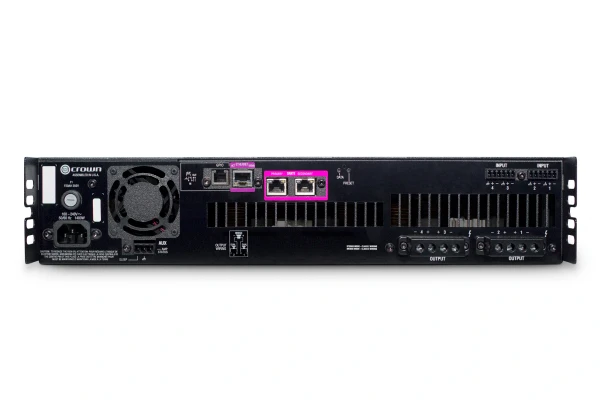

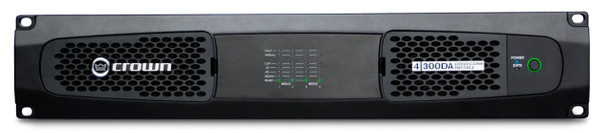

The Crown DCi 4|300DA is a four-channel DriveCore Install amplifier delivering 300W per channel with Dante and AES67 network audio, powerful DSP, JBL speaker tunings, and direct low-impedance or 70V/100V output capability. It gives integrators a scalable platform for commercial audio systems that need networked distribution, detailed processing, and remote control.
Features
- 300W per channel rated output
- Dante and AES67 network audio connectivity
- Balanced analog inputs for local sources and backup routing
- Onboard DSP with JBL speaker tunings
- Network control and monitoring through HARMAN software
- Direct low-impedance and 70V/100V loudspeaker operation
- Input priority and automatic failover options
- GPIO integration for external control and status
- Pilot tone and speaker line monitoring
Why We Like This
It combines serious amplifier power with network audio, processing, monitoring, and failover tools that would otherwise require several separate devices in the rack.
FAQs
Q: How much power does the Crown DCi 4|300DA deliver?
A: It is a 4-channel amplifier rated at 300W per channel for the primary published load condition.
Q: What speaker systems can the DCi 4|300DA drive?
A: It is designed for low-impedance and 70V/100V distributed loudspeaker systems; exact supported loads and bridge modes are listed in the technical specifications.
Q: Does the DCi 4|300DA include DSP or network control?
A: Yes. It includes Dante/AES67 network audio, Ethernet control, onboard DSP, GPIO, and monitoring functions.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Crown |
Cooling: |
Continuously variable speed forced air, front to back airflow |
Country of Origin: |
MX |
Damping Factor (20Hz to 100Hz): |
>1000 |
Dimensions (W x H x D): |
483 mm x 89 mm x 362 mm 19 in x 3.5 in x 14.25 in |
Frequency Response (8Ω, 20Hz - 20kHz): |
±0.25dB |
Load Impedance (Stereo/Dual Mode): |
2Ω - 16Ω; 70Vrms and 100Vrms |
Load Impedance Bridge Mono: |
4Ω - 16Ω; 140Vrms and 200Vrms |
Maximum Fan Noise (re dBA SPL @ 1M): |
45 |
Model: |
DCi 4|300DA |
Output Channels: |
4 |
Power Connector: |
15A IEC |
Product Type: |
Four-Channel Dante/AES67 Power Amplifier |
Required AC Mains (±10%): |
100V-240V ~ 50/60Hz |
SKU: |
DCI4X300DA-U-USFX |
TAA Compliance: |
Compliant |
Total Harmonic Distortion (at full rated power, 20Hz - 20kHz): |
0.35% |
UPC: |
691991010071 |
