Description

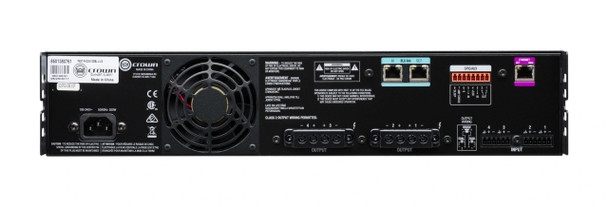

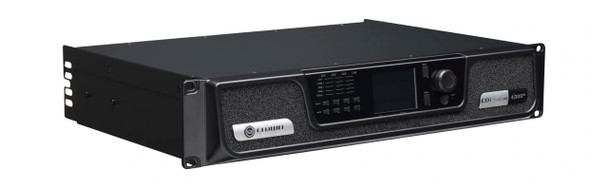

The Crown CDi 4|300BL is a four-channel CDi DriveCore amplifier delivering 300W per channel with BLU Link digital audio networking, onboard DSP, Ethernet control, and direct 4/8-ohm or 70V/100V speaker operation. It is designed for integrated HARMAN systems that need reliable amplification, multichannel digital distribution, and centralized configuration.
Features
- Four-channel professional power amplifier for installed sound applications
- Delivers 300W per channel at 4Ω
- Supports 4Ω, 8Ω, 70V, and 100V output configurations
- Analog + BLU Link digital audio inputs for flexible system integration
- BLU Link networking for multi-channel digital audio distribution
- Integrated DSP with routing, EQ, crossover, delay, and limiter functions
- Network control and monitoring through HARMAN software platforms
- Front-panel interface for local setup and amplifier configuration
- Crown DriveCore™ technology for efficient and dependable operation
- Direct 70V/100V output capability without external transformers
- GPIO/AUX port for presets, muting, fault monitoring, and external control
- Pre-loaded JBL speaker tunings for faster installation
Why We Like This
It combines serious amplifier power with network audio, processing, monitoring, and failover tools that would otherwise require several separate devices in the rack.
FAQs
Q: How much power does the Crown CDi 4|300BL deliver?
A: It is a 4-channel amplifier rated at 300W per channel for the primary published load condition.
Q: What speaker systems can the CDi 4|300BL drive?
A: It is designed for low-impedance and 70V/100V distributed loudspeaker systems; exact supported loads and bridge modes are listed in the technical specifications.
Q: Does the CDi 4|300BL include DSP or network control?
A: Yes. It adds BLU Link digital audio networking to Ethernet control, monitoring, and onboard DSP.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
Crown |
Channels: |
4 |
Control: |
Ethernet network control and front-panel interface |
DSP: |
Routing, EQ, crossover, delay, limiting, and speaker tunings |
Digital Audio: |
BLU Link |
Model: |
CDi 4|300BL |
Product Type: |
Four-Channel BLU Link DSP Power Amplifier |
Rated Output per Channel: |
300W (primary published load condition) |
SKU: |
NCDI4X300BL-U-US |
Speaker Load Support: |
4Ω, 8Ω, 70V, and 100V |
