Description

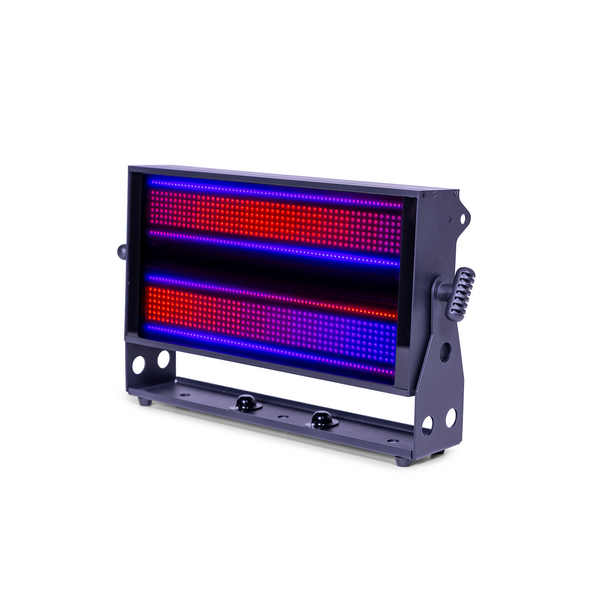

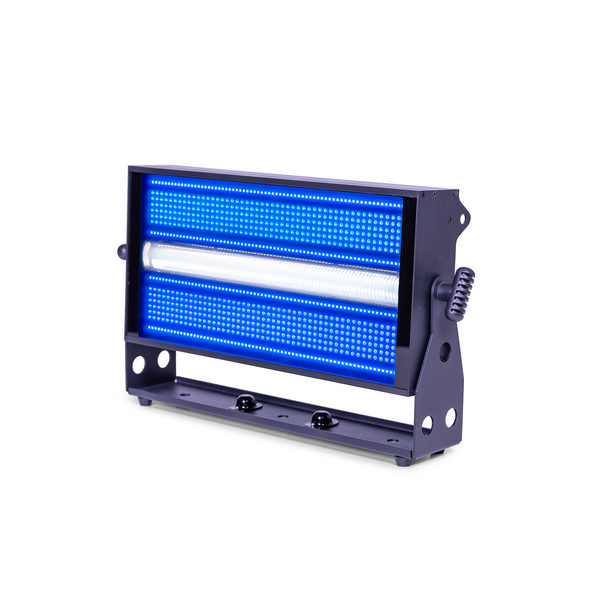

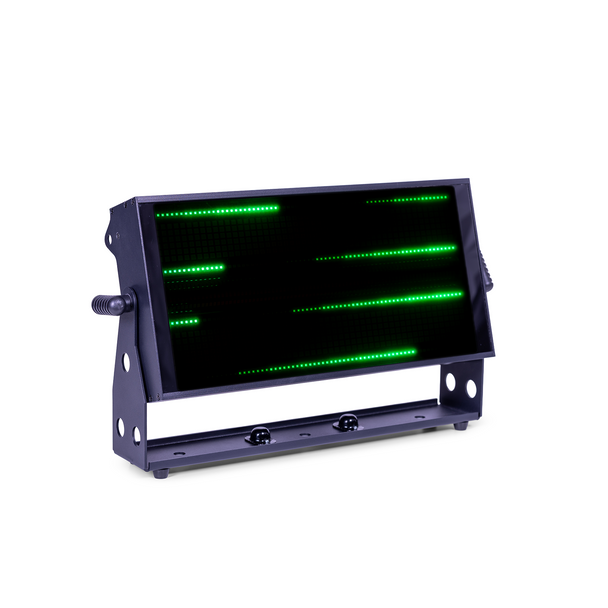

The ColorKey Inceptor Panel FX is a high-output LED effects and wash fixture designed for stage productions, venues, and creative installations. It features an RGB plus cool white and warm white LED engine with independent pixel zones for detailed lighting effects. With ActiveFrost™ electronic diffusion and flexible mounting options, it adapts to both touring and permanent lighting setups.
Features
- ActiveFrost™ electronic diffusion instantly switches between clear and frosted output
- High-output RGB + Cool/Warm White LED engine
- Dedicated warm white channel for amber tones and tungsten-style looks
- Advanced multi-segment pixel control for dynamic effects and detailed programming
- Wide wash coverage with up to 158° field angle
- Smooth 0–100% dimming and adjustable strobe effects
- Dual Omega bracket mounting positions for flexible installation
- Professional connectivity with 3-pin & 5-pin DMX and PowerCON in/out
- Multiple DMX modes from simple control to full pixel-level operation
Why We Like This
The Inceptor Panel FX combines pixel effects, tunable white output, and electronic diffusion in a single fixture. Its flexible mounting system and wide wash coverage make it adaptable for stage productions, installations, and creative lighting designs.
FAQs
Q: What is ActiveFrost™ diffusion?
ActiveFrost™ is an electronic diffusion system that allows the fixture to switch between clear and frosted output instantly without mechanical parts.
Q: Can the fixture produce both color and white lighting?
Yes. It uses RGB LEDs along with dedicated cool white and warm white channels for adjustable color and white tones.
Q: Does it support professional lighting control systems?
Yes. The fixture includes both 3-pin and 5-pin DMX connections and multiple DMX control modes.
Based in Chicago, IL, Gear Club Direct supports DJs, lighting designers, and event professionals every day with reliable gear and knowledgeable service you can trust.
Tech Specs
RGB LEDs: |
600 × 0.5W RGB (20-segment)Illuminance: 545 lux @ 2m 280 × 0.5W RGB (40-segment) Illuminance: 340 lux @ 2m Combined RGB Illuminance: 885 Lux @ 2M |
White LEDs: |
240 × 1W Warm White / Cool White (10-segment) Warm White Color Temperature: 1800k Cool White Color Temperature: 6500k CTC Control from 1800k to 6500kWarm White Illuminance: 1181 Lux @ 2m Cool White Illuminance: 1415 lux @ 2m |
LED Lifetime: |
50,000 hours |
Optics: |
ActiveFrost electronic diffusion glass RGB Beam Angle: 120° RGB Field Angle: 158° White Beam Angle: 90° |
Control: |
Control Protocols: DMX512, RDM, Auto, Sound Active DMX Channels: 10A / 10B / 16CH / 26CH / 201CH Dimmer: 0–100% smooth dimming Strobe: 1–20Hz Display: LED menu display |
Power: |
Voltage: AC 100–240V, 50/60Hz Power Consumption: 390W @ 100V / 366W @ 220V |
Connections: |

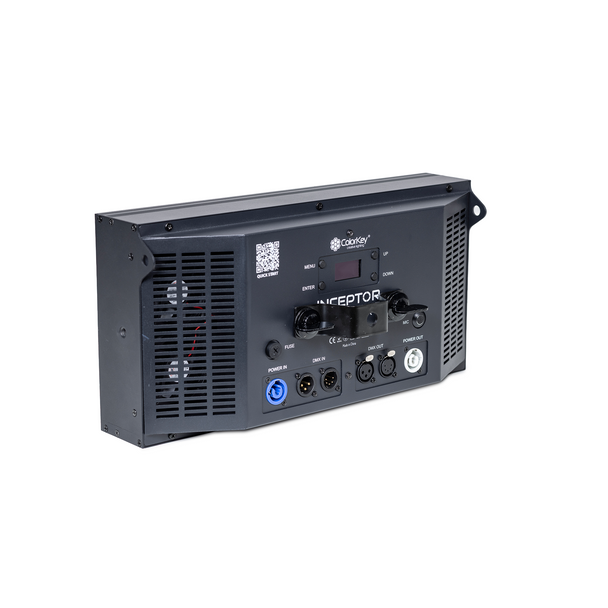

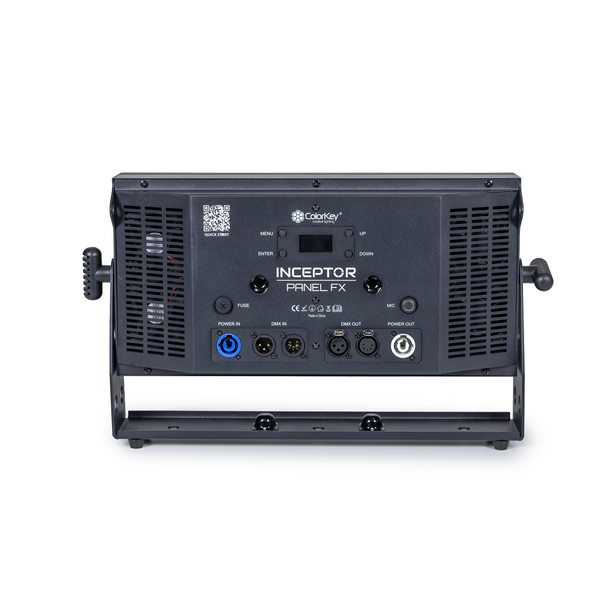

Power I/O: PowerCON in/out DMX I/O: 3-pin & 5-pin XLR in/out |
Dimensions: |
16.1 × 7.9 × 7.9 in |
Net Weight: |
15.4 lbs |
