Description

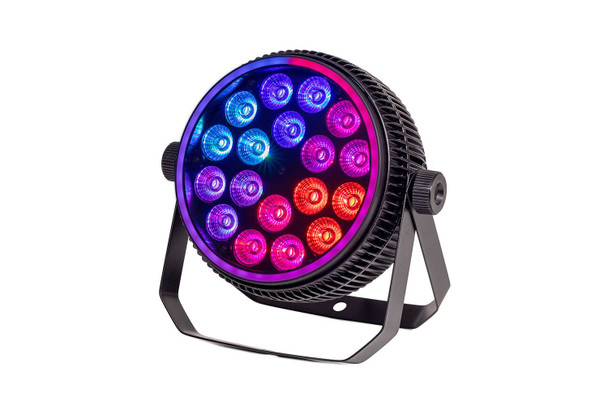

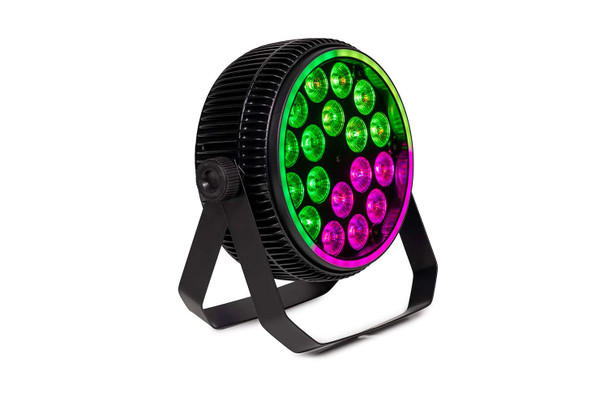

The ColorKey Halo Par HEX 18P is a full-spectrum RGBWA+UV wash par with 6-zone pixel mapping and a 34-zone pixel halo ring. From deep saturated washes to crisp UV-driven looks, the ColorKey Halo Par HEX 18P delivers brilliant output and precise color mixing in any small venue environment. A high-impact wash par built to last, with an all-metal housing designed for stages, bars, DJs, and restaurants that demand more than ordinary lighting. Each of the 18 RGBWA+UV LEDs is grouped into 6 independently addressable zones, setting the Halo Par HEX 18P apart from traditional wash pars with dynamic, captivating color movement. The Halo Par HEX 18P is built to adapt to any user level. From a streamlined onboard menu for static washes and auto programs, to 9 channel DMX operation for simple color mixing and basic halo effects, to an advanced 138 channel mode featuring fully pixel-mappable control of the six LED zones and entire halo for intricate, dynamic programming.
Features
- 18×10W RGBWA+UV LED’s: Full-spectrum color mixing with vibrant UV output
- Pixel Control: 6 wash zones plus a 34-zone halo ring for chases, waves, and segmented effects
- Metal Housing: Durable construction for touring, rentals, and installs
- UHX™ Fixture The RGB halo around the beam synchronizes with other UHX™ fixtures with pre-programmed chases, patterns, and color mixing.
- Advanced DMX Control: 9 / 20 / 138-channel modes for simple or pixel-level control
- Color Temperature Control: 2500k to 8000k
Technical Specifications
Light Source
- 18 x 10W RGBAW+UV (6 Zones)
- Beam Angle – 25°
- Field Angle – 45°
- Illuminance – 3590 lux @ 2m
- 34-zone RGB LED Halo
Color Temperature
- 2500k to 8000k
Control
- Control Protocols: DMX512, RDM, Auto, Sound Active
- DMX Channel Modes: 9 / 20 / 138

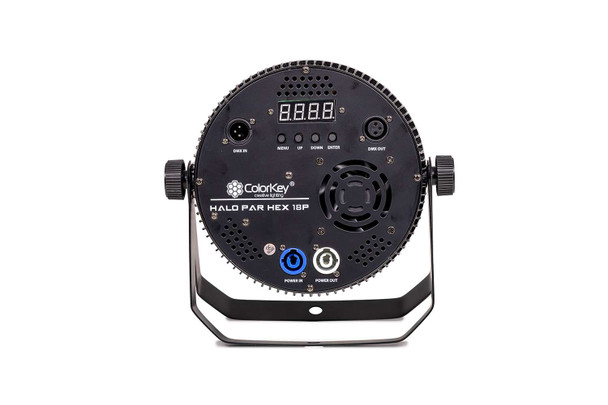

Connections
- Power I/O: PowerCON in/out
- DMX I/O: 3-pin in/out
Electrical
- Voltage: AC90-240v, 50/60Hz
- Max Power Consumption: 120W
Dimensions
- Size: 10.24 x 8.27 x 3.54 in (26 x 21 x 9 cm)
- Weight: 5lbs (2.3kg)
