Description

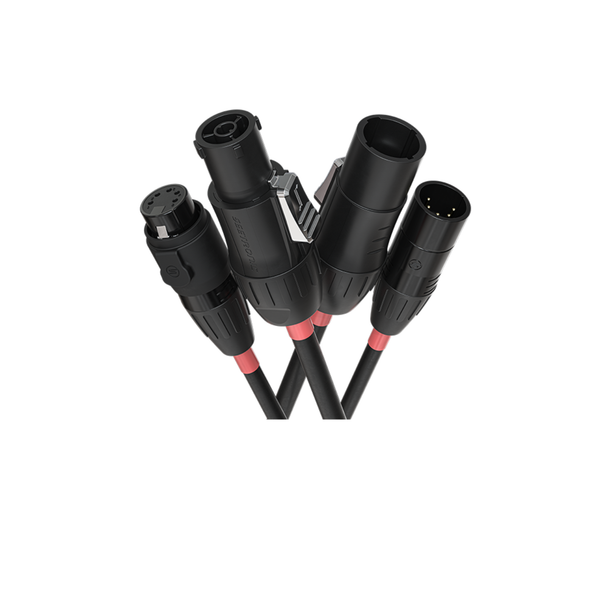

IP65-rated Riglink combo power and data cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic® production-grade connectors.
At a Glance
-
Power and data all through one cable.
-
Ideal for both installations and touring.
-
IP65 rated for outdoor use.
-
Individually insulated for minimal interference.
Specifications
Construction / Physical
- Conductor Specification: 2 x 0.34mm2 (22AWG) & 3 x 2.07mm2 (14AWG)
- Conductor Structure: OFC 19/0. 15TC & 66/0.20BC
- Insulation Material: HDPE & PVC
- Insulation OD: 1.4mm & 3.0mm
- Filler: Cotton & PPR
- Wrapping Tape: Non-woven fabric
- Sheild Structure: Tinned copper wire, 82% AL, 100% coverage
- Middle Quilt: PVC
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 16.5 ± 0.2mm
- Temperature Rating: -20ºC – 70ºC
- IP65
Connections
- Seetronic SAC3FX
- Seetronic SCWM5-B
- Seetronic SAC3MX
- Seetronic SCWF5-B
Electrical
- Withstand Voltage: 0.5/1.5 AC kV/min
- Conductor Resistance: 25.98 Ω/km & 7.98 Ω/km
- Capacitance between Connectors: 100pF/m
- Conductor shiels capacitance: 180pF/m
- Impedance: 110 Ω
