Description

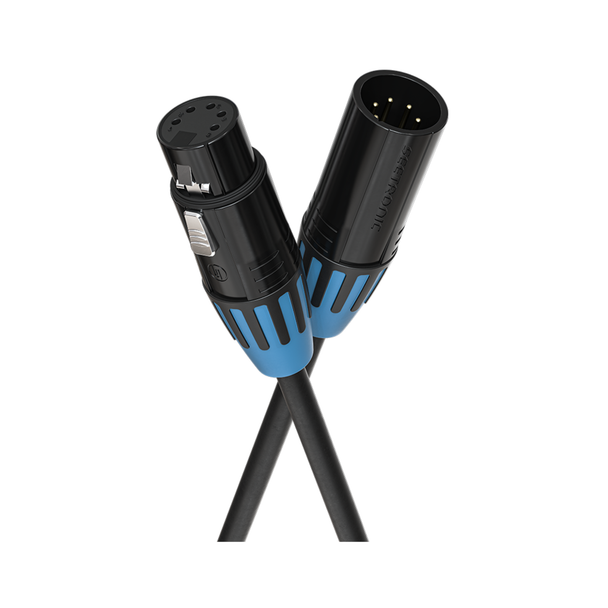

Durable double-shielded Riglink production-grade DMX lighting cable designed for stable signal transmission.
Features
-
Features a braided and aluminium foil double shielding design, ensuring optimal protection against interference.
-
Designed for 110Ω DMX-512 applications.
-
Utilises low-dielectric constant LDPE insulation, offering low capacitance to meet precise impedance requirements for stable signal transmission.
-
High-torsion tinned oxygen-free copper (OFC) with a twist rate achieving over 89% shielding effectiveness, enhancing resistance to external interference.
-
Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
-
Ideal for both installations and touring.
Specifications
Construction / Physical
- Conductor Specification: 2 x 0.22mm2 (24AWG)
- Conductor Structure: OFC 20/0. 12BC
- Insulation Material: LDPE
- Insulation OD: 1.8mm
- Shield Structure: OFC 16/8/0.1TC + AL
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 6.0 ± 0.2mm
- Temperature Rating: -20ºC – 70ºC
- IP20
Connections
- Seetronic SCM55-BG
- Seetronic SCMF5-BG
Electrical
- Withstand Voltage: 0.5kV
- Conductor Resistance: 88.2 Ω/km
- Capacitance between Conductors: 50 pF/m
- Conductor and Sheild Capacitance: 122 pF/m
- Impedance: 110 Ω
