Description

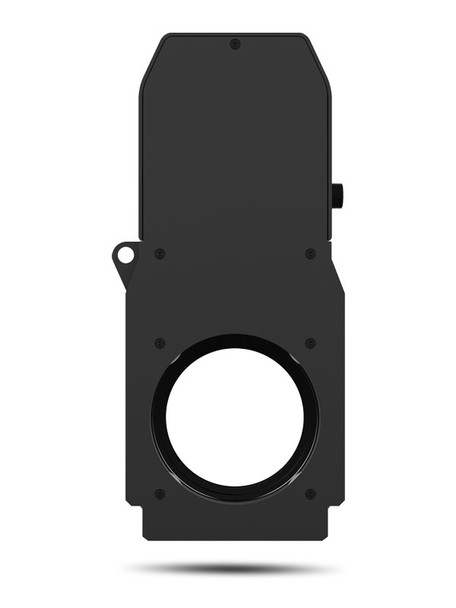

Ovation GR-1 IP
Ovation GR-1 IP is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality.
AT A GLANCE
-
IP65 rated gobo rotator for one single or two counter-rotating gobos
-
Fully controllable via the Ovation E-260WW IP control personalities
-
Variable speed, bi-directional 0.047-21 RPM (17°- 7,560° per minute) standard rotation
-
Fully indexable positioning via DMX
-
Dedicated power/control supplied by the Ovation E-260WW IP
-
Stepper motor driven for ultra-quiet and super smooth movement without stalling or stuttering
SPECIFICATIONS
DYNAMIC EFFECTS
- Gobos size: B (metal, glass or effect)
- Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
- Speed Range: 0.047 – 21 RPM (17° - 7,560° per minute)
CONSTRUCTION / PHYSICAL
- Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)
- Weight: 2.4 lb (1.2 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast
CONNECTIONS
- Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
- Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
- Cable Length (power/data): 19 in/483 mm
CONTROL
- Control Protocol: DMX
- DMX Channels: 1
ELECTRICAL
- Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)
CERTIFICATIONS / QUALIFICATIONS
- CE
- IP Rating: IP65, temporary outdoor/wet use
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
- Ovation GR-1 IP
- Power & Data Control Cable
