Description

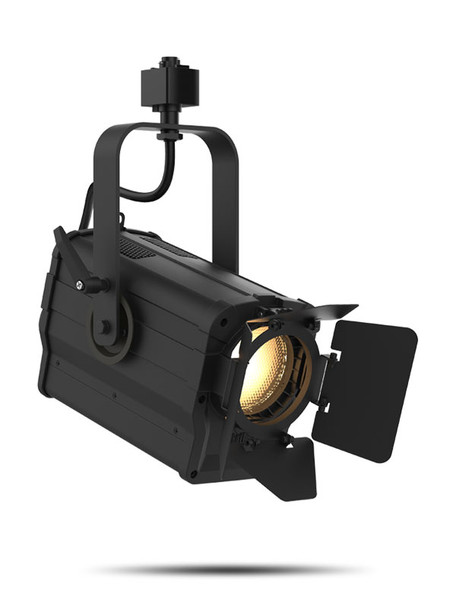

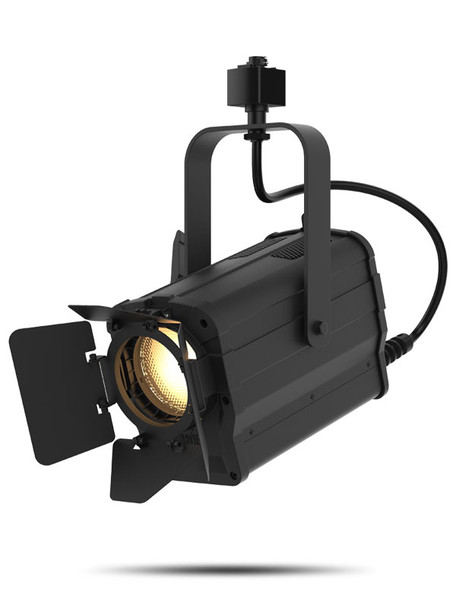

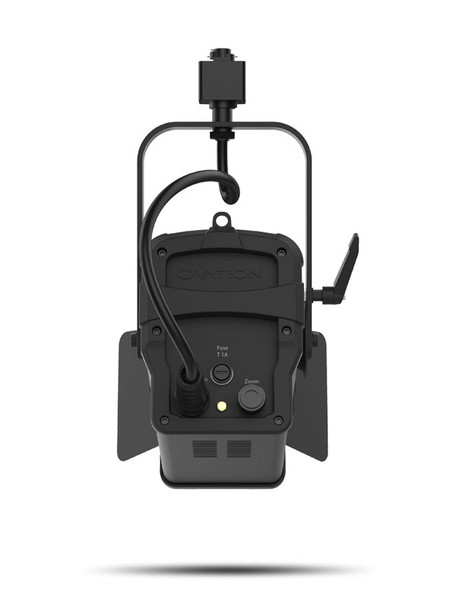

Ovation FTD-55WW
Ovation FTD-55WW is a track mounted, warm white LED (3-inch) inkie Fresnel-style fixture. This fixture projects a bright, beautifully soft field of light within a 30° – 69° field angle controlled by a manual zoom allowing you to add light where needed. A barn door for the fixture is included to help shape the light and direct the light.
AT A GLANCE
-
Track-mountable and dimmable 3” LED Fresnel
-
Soft and even field of light
-
Virtually silent operation for use in any situation
-
Manually controlled variable zoom angle between 28° to 64°
SPECIFICATIONS
OPTICAL
- Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
- Color Temperature (at full): 3200 K
- CRI: 91
- Beam Angle: 18° to 56°
- Field Angle: 30° to 69°
- Zoom Angle: 30° to 69°
- Lumens (30°): 795
- Lumens (69°): 1,920
- Illuminance (30°) : 279 lux @ 5 m
- Illuminance (69°): 100 lux @ 5 m
DYNAMIC EFFECTS
- Dimmer: Electronic
- Zoom: Manual
CONSTRUCTION / PHYSICAL
- Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
- Weight: 4 lb (1.9 kg)
- Exterior Color: Black
- Housing Material: Aluminum die-cast
- Accessory Holder/Gel Frame Size: 3.26 in (83 mm)
CONNECTIONS
- Power Connection: Track Type H
- Cable Length (power): 1.5 ft (0.45 m)
CONTROL
- Control Protocol: Dimmer
ELECTRICAL
- Input Voltage: 120 VAC, 60 Hz
- Input Voltage: 230 VAC, 50 Hz
- Power and Current: 31 W, 0.257 A @ 120 V, 60 Hz
- Power and Current: 30 W, 0.133 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
- CE, MET
- IP Rating: IP20, dry location
WHAT'S INCLUDED
- Ovation FTD-55WW
- Track adaptor
- Gel Frame
- Barn Doors
