Description

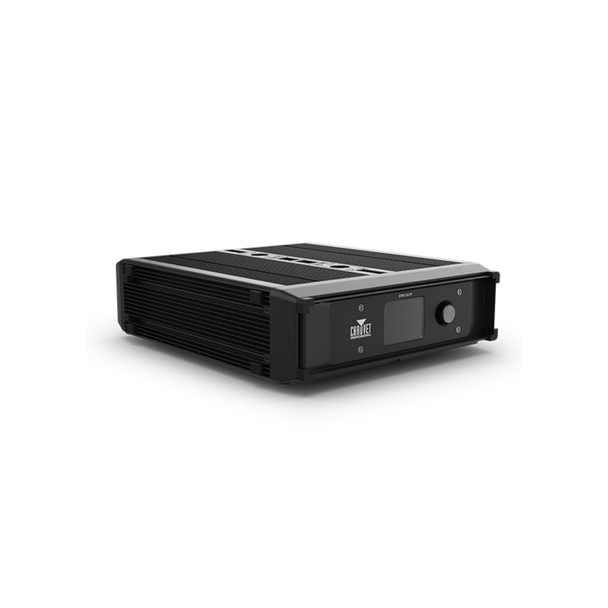

ÉPiX D4 IP is a 4-port drive housing the ÉPiX mapping system – built to easily detect, configure, and control outdoor-rated ÉPiX Line 10 IP and ÉPiX Line 10 IP S linear pixel strips. Its powerful processing unit handles addressing with the intuitive KLSTR push-and-pull mapping system, allowing users to focus on layouts and concepts.
ÉPiX D4 IP is the heart of this latest generation ÉPiX family that introduces a revolutionary new standard in video mapping and a robust new ecosystem. Users can easily create simple and effective designs with the app as well as push highly complex designs and visions through a scalable workflow using industry-standard MVR files.
Designed with modularity, serviceability, and universal connectivity at its core, ÉPiX D4 IP delivers full creative freedom, scalability, and industry-leading efficiency to lighting designers, systems designers, and rental and production houses.
Features
-
Remote power supply and processing module for Epix line products
-
Supports MVR with GDTF onboard, creating a seamless production flow from design to playback at the lighting desk
-
Utilizes Epix Mapping System to detect, configure, and control Epix line products
-
Industrial design accommodates the rental/touring and Installation applications
-
Supports RSTP with automatic signal backup
Specifications
Construction / Physical
- Dimensions: 14.05 x 11.8 x 11.4 in (357 x 300 x 289 mm)
- Dimensions (with rackmount brackets): 20.24 x 11.8 x 11.4 in (514 x 300 x 289 mm)
- Weight: 15lb (6.8 kg)
- Exterior Color: Black
- Housing Material: Aluminum extrusion, Aluminum die-cast, rubber

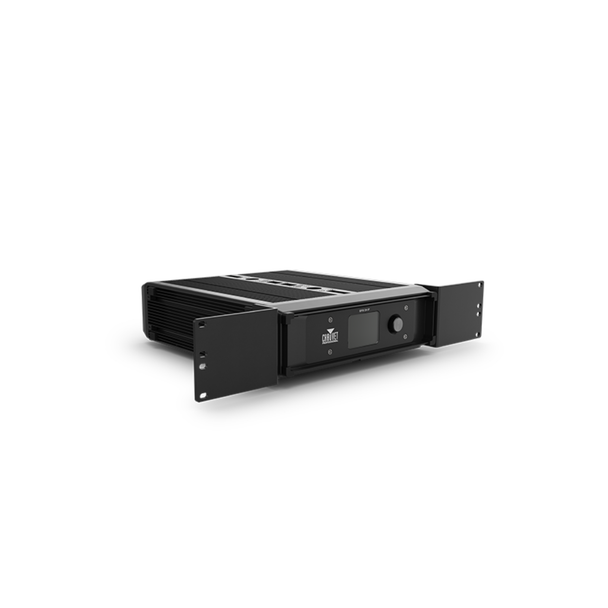

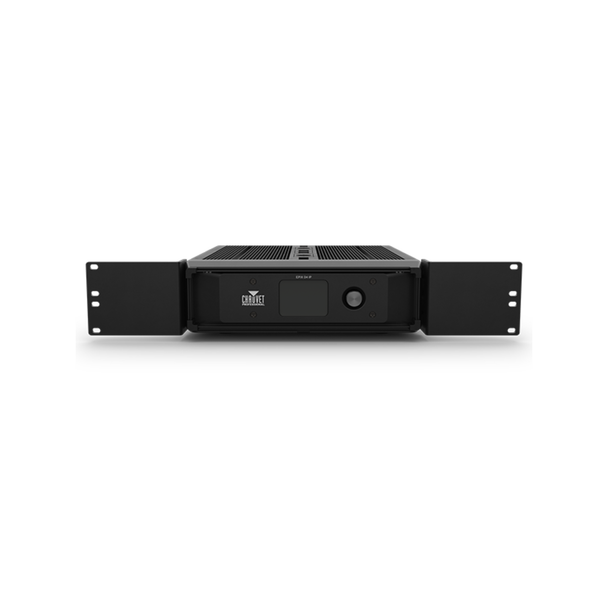

- Rackmount: 2U
- IP Rating: IP65

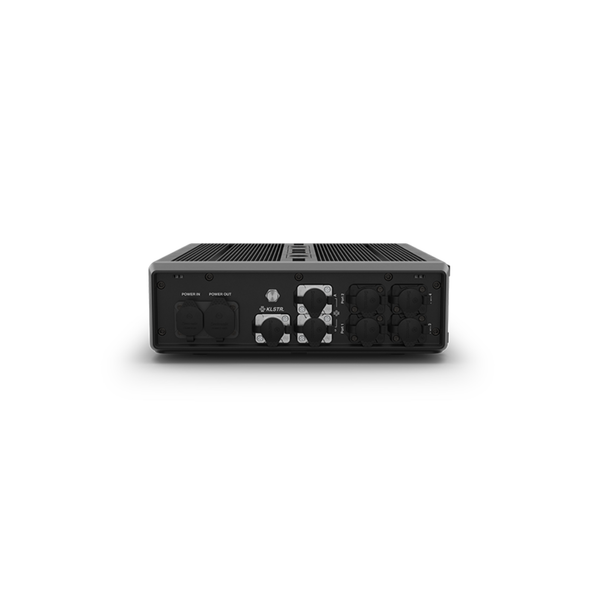

Connections
- Power input: Seetronic Powerkon (powerCON Compatible)
- Power output: Seetronic Powerkon (powerCON Compatible)
- Device output (4): 4-pin XLR (IP65)
- Data connectors (3): Seetronic etherKON (etherCON Compatible)
- Intended Load: Epix Line 10 IP, Epix Line 10 IP S
- Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
- Total max. cable length (shielded cables) between Epix D4 IP and last Epix Line: 210 ft (64 m)
- Max. cable length (shielded cables) between Epix D4 IP and first Epix Line: 65 ft (20 m)
- Total max. cable length (unshielded cables) between Epix D4 IP and last Epix Line: 300 ft (91 m)
- Max. cable length (unshielded cables) between Epix D4 IP and first Epix Line: 150 ft (45 m)
- Max. cable length (unshielded cables) between each Epix Line: 100 ft (30 m)
Control
- Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, Epix Mapping System]
- DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
- Video Refresh Rate: 60 Hz
