Description

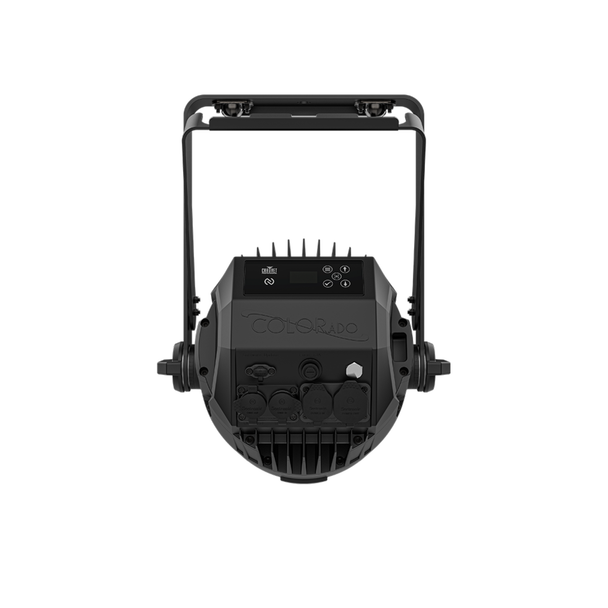

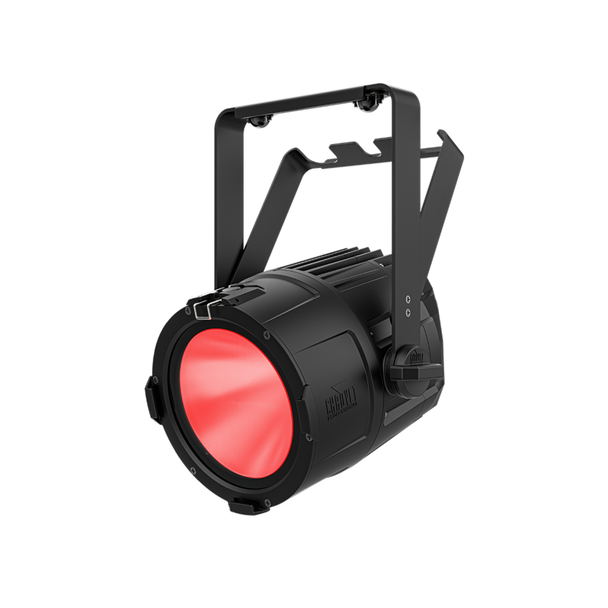

COLORado Solo Pod E is a versatile IP65-rated touring, rental, and production workhorse featuring integrated electronic Smart Frost that enables instant shifts from a narrow spot to wide washes and color block effects. Advanced optics and a high-power RGBL LED light engine are engineered to deliver fully homogenized output in both modes. 16-bit dimming and selectable PWM frequencies ensure flawless live and on-camera performance. Outdoor-rated power and data connectors allow for easy connections without proprietary cabling. Rigging and setups are fast and easy with its included omega bracket with ¼ turn adaptors and 7.5” accessory compatibility.
Features
-
High-performance RGBL LED wash with variable electronic frost for touring, rental, and production -indoors or out
-
High-power with smooth and even color mixing
-
Variable electronic frost for beam/edge softness control
-
All environment operation with IP-rated power and DMX connections
-
Easy mounting using traditional clamps, quick connecting omega bracket, or split yoke floor stand
Specifications
Optical
- Light Source: 12 LEDs (quad-color RGBL) 180W, (1.3A), 50,000 hours life expectancy.
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 11,550 K
- CRI @ 3200 K: 83.8
- Beam Angle: 17.1°
- Beam Angle (E-Frost): 54.7°
- Field Angle: 30.9°
- Field Angle (E-Frost): 128.9°
- Lumens: 8160
- Lumens (E-Frost): 7030 Illuminance: 2673 lux @ 5 m
- Illuminance: 2673 lux @ 5 m
- Illuminance (E-Frost): 220 lux @ 5 m
- Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Frost: Electronic
- Strobe Rate: 0 to 25Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR,
- Cable Length (power): 5 ft (1.5 m)
- Software Connection: USB
Control
- Control Protocol: DMX, RDM
- DMX Channels: 1ch, 5ch1, 5ch2, 7ch, 11ch, 12ch, 13ch, 16ch or HSV
- Modes/Personalities: 9 personalities (1ch, 5ch1, 5ch2, 7ch, 11ch, 12ch, 13ch, 16ch, HSV)
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
- Power and Current: 190 W, 1.59 A @ 120 V, 60 Hz
- Power and Current: 187 W, 0.93 A @ 208 V, 60 Hz
- Power and Current: 189 W, 0.86 A @ 230 V, 50 Hz
