Description

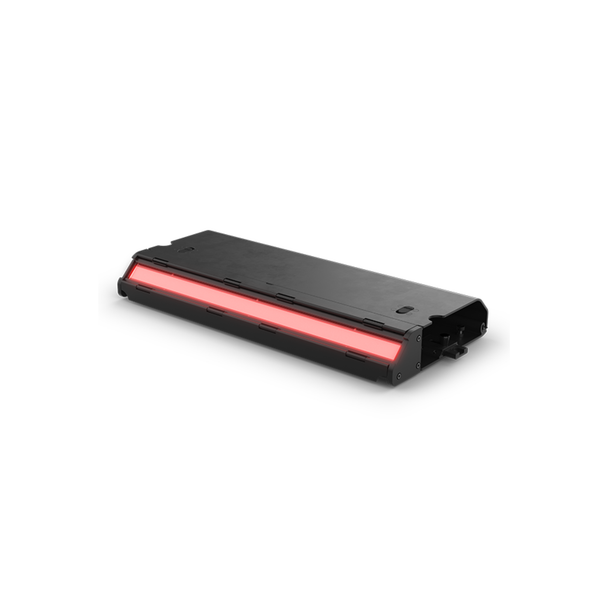

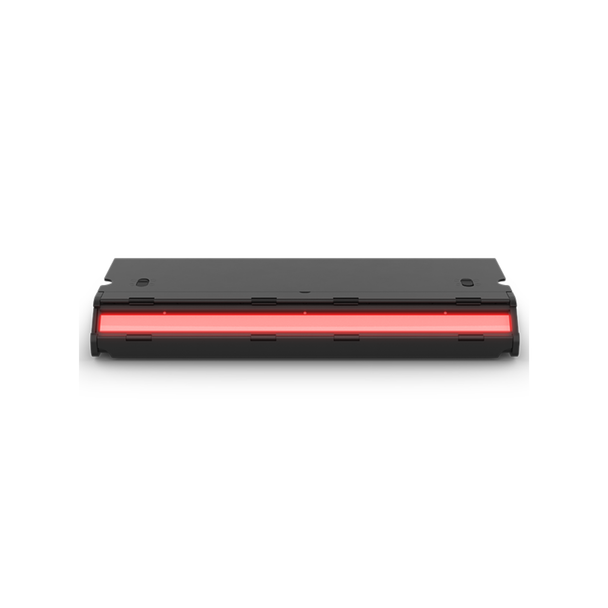

This low-profile 0.5-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.
Features
-
Low-profile, 0.5mIP65 rated footlight with full-color and high-quality white light
-
Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
-
Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
-
Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.
Specifications
Optical
- Light Source: 56 LEDs (Quintuple-color-RGBwWL), K 20,000 hours life expectancy
- Color Temperature (range): 2800 to 8000 K
- Color Temperature (at full): 6350K
- CRI (2800): 96.2
- Beam Angle: 111.1° (Horizontal)
- Beam Angle: 120.1° (Vertical)
- Field Angle: 134.1 ° (Horizontal)
- Field Angle: 161.4° (Vertical)
- Lumens: 7,144
- Illuminance (total): 104 lux @ 5 m
- PWM Frequency: 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
- Selectable PWM: 1000Hz, 2000 Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
Dynamic Effects
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Framing Shutters: No
- Strobe Rate: 0 to 30Hz
- Standalone Color Mixing: Yes
- Color Temperature Presets: Yes
- Dim Modes: 4
- Dim Curves: 4
- Built-in Automated Programs: Yes
- Customizable Programs: Yes
- Recall Custom Programs: Yes/No
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Power Output: Seetronic Powerkon IP65
- Data Connectors: 5-pin XLR
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, sACN
- DMX Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37 - Art-Net Channels:
1 Cell: 5, 6, 6, 6, 6, 7, 11, 12, 12, 13, 14 or 21
2 Cell: 8, 9, 9, 10, 12, 19, 21, 22, 23 or 37 - Modes/Personalities: Personalities (22)
- Frequency (operating): 1000Hz, 2000Hz, 4000Hz, 6000Hz, 25KHz or 64KHz
