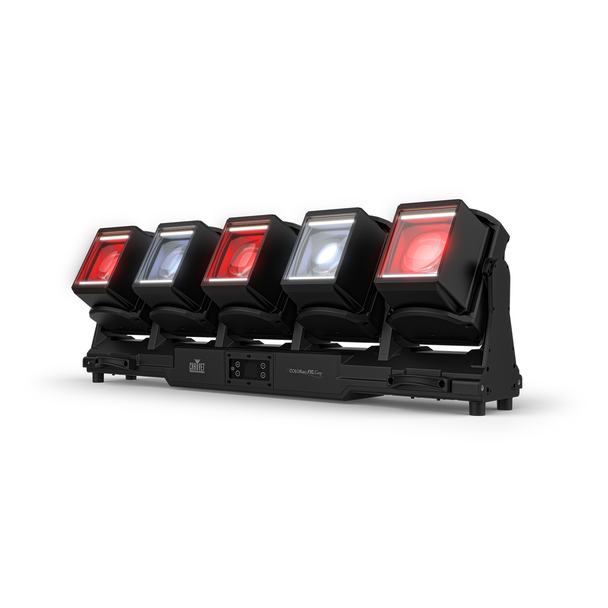

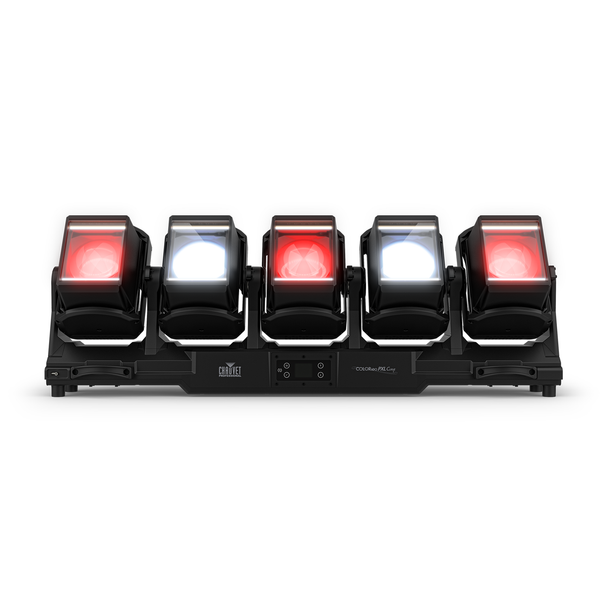

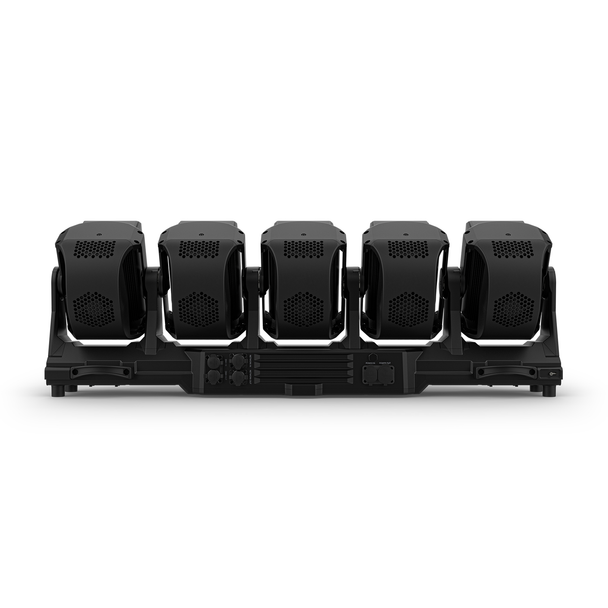

Chauvet Professional COLORado PXL Curve 5

COLORado PXL Curve 5 features motorized pan, tilt and zoom in an IP65-rated LED batten form factor with five RGBW beam/wash heads that bring the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with COLORado PXL Curve 1, its color blending and rectangular heads perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

Features

• Fully featured IP65 rated Bar style fixture with (5) heads, each consisting of single (120W) RGBW LEDs, and two linear four cell CW and WW Strobe LEDs
• Wash and beam fixtures with pan and tilt functionality and the ability to maintain pixel pitch when using multiple fixtures together
• Quick and quiet operation of 200° of tilt and 60° of pan per head
• 8 section control of Warm White and Cool White strobe cells per head
• DMX, SACN, and Art-Net control for full flexibility
• RDM and NFC Enabled for remote addressing and trouble shooting
• IP65-rated 5-pin DMX and TCP/IP input and output ports
• NFC functionality (COMING SOON)
• Software update over Bluetooth (COMING SOON)
• Slotted Omega bracket for easy hanging on truss

Why We Like This

The COLORado PXL Curve 5 combines five independently moving RGBW heads, motorized zoom, and dedicated warm/cool white strobe cells in one IP65-rated batten. Its ability to create everything from coordinated washes to individual moving beams and detailed pixel effects makes it particularly versatile, while compatibility with the COLORado PXL Curve 1 gives designers more flexibility when building larger pixel-mapped rigs.

FAQs

How many moving heads does the COLORado PXL Curve 5 have?
It features five heads, each with its own 120W RGBW LED and motorized movement.

Can each head move independently?
Yes. Each head provides 60° of pan and 200° of tilt, allowing dynamic multi-directional effects.

Does the COLORado PXL Curve 5 have motorized zoom?
Yes. The fixture features motorized zoom for flexible beam and wash applications.

Does it include dedicated strobe LEDs?
Yes. It features linear cool white and warm white strobe LEDs, with eight-section control per head.

Can it be used with the COLORado PXL Curve 1?
Yes. The Curve 5 is specifically designed for seamless pixel mapping with the COLORado PXL Curve 1 and visually matches other fixtures in the COLORado PXL family.

Which control protocols are supported?
The fixture supports DMX, sACN, Art-Net, and RDM.

Does it support NFC?
NFC functionality is listed as coming soon, so it should not be presented as currently available without confirming the applicable firmware or product update.

Is the COLORado PXL Curve 5 suitable for outdoor use?
It features an IP65-rated enclosure and IP65-rated DMX and TCP/IP connections, making it suitable for demanding professional environments within the limitations of its IP rating.
