Description

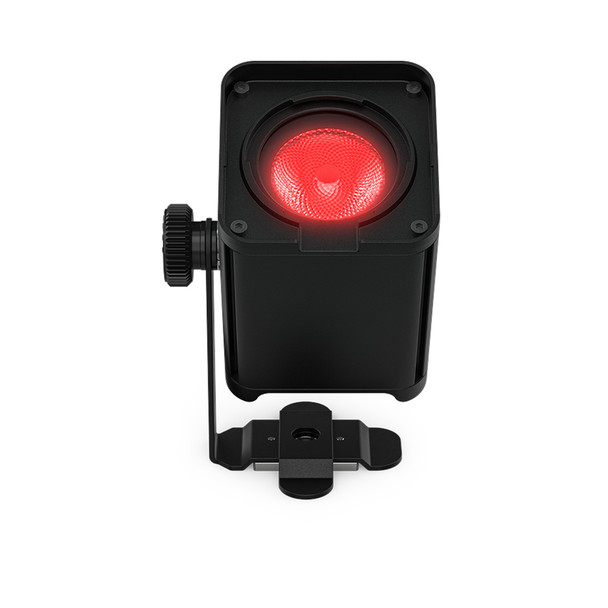

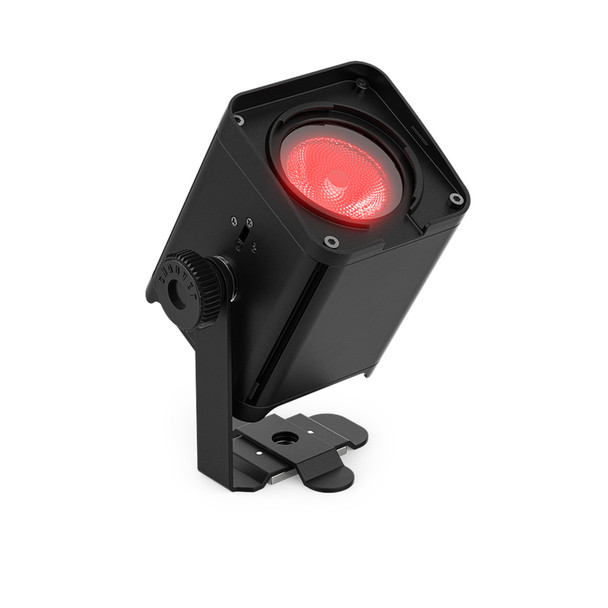

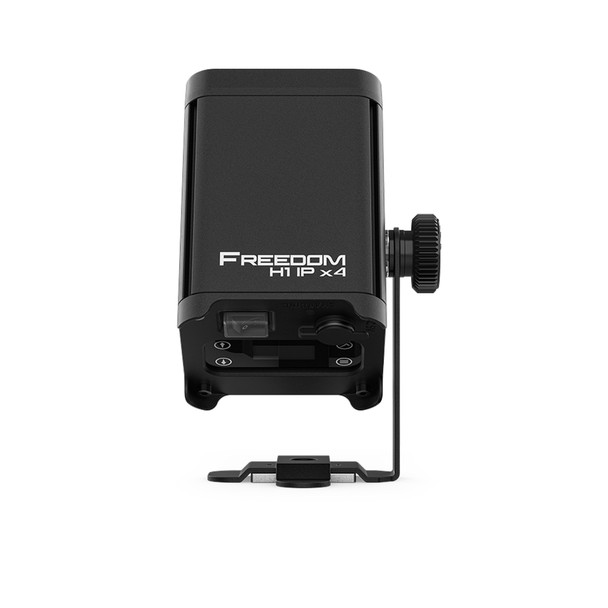

Enjoy complete wireless freedom in a tiny package with this four-pack kit of ultra-compact outdoor-rated RGBAW+UV LED wash lights ready to go anywhere, indoors or out. Battery-operated Freedom H1 IP ILS X4 fixtures put a versatile tool for accent lighting in the palm of your hand along with a beam angle wide enough for perfect uplighting and downlighting looks. Run up to 8 hours at full output or 20 hours with a single color after each charging session with the included multi-charger. Easily attach their magnetic base to most metal surfaces and choose the control that suits your setup with built-in D-Fi transceiver, RF receiver, and OLED digital display.
Highlights
- Outdoor-rated, palm-sized wash light perfect for highlighting small subjects
- Sold as a complete kit with 4 fixtures, multi-charger, and RFC remote
- Robust housing repels Mother Nature for temporary outdoor situations
- Accessory kit includes a round dome, square top, and white sleeves (sold separately)
- OLED display allows for full-text and easily changeable fixture settings
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Built-in D-Fi transceiver wirelessly communicates with other D-Fi-enabled devices
- Magnetic base to easily mount the product to most metal surfaces
Specifications
- DMX Channels:6, 8, or 12
- Max Unobstructed Distance:600 ft (183 m)
- Light Source:1 LED (hex-color, RGBWA+UV) 10 W, (3 A), 50,000 hours life expectancy.
- Strobe Rate:0 to 20 Hz
- Beam Angle:23°
- Field Angle:44°
- Operating Frequency:2.412 to 2.484 GHz
- Illuminance:168 lux @ 2 m
- Lumens:137
- IP Rating:IP54
- Input Voltage:5 VDC, 1.5A (External power supply)
- Power and Current:13 W, 0.2 A 230 V, 50 Hz
- Power and Current:13 W, 0.3 A 120 V, 60 Hz
- Approvals:CE, ROHS, FCC
- Maximum Run Time (all on): up to 8 hours
- Maximum Run Time (single color): up to 20 hours
- Recharge Time: 6 hours
- Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
- Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
- Bracket Mounting Hole: M12
- Weight (fixture): 1.6 lbs. (0.7 kg)
- Size (fixture): : 3 x 3 x 4.2 in (75 x 75 x 107 mm)
- Optional Controllers: RFC, RFC-XL, FREEDOM Connect
What's Included

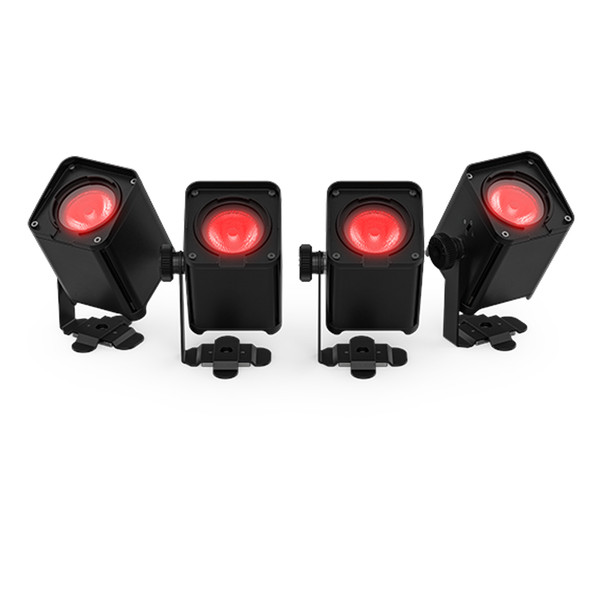

- 4 fixtures
- 1 multi-charger

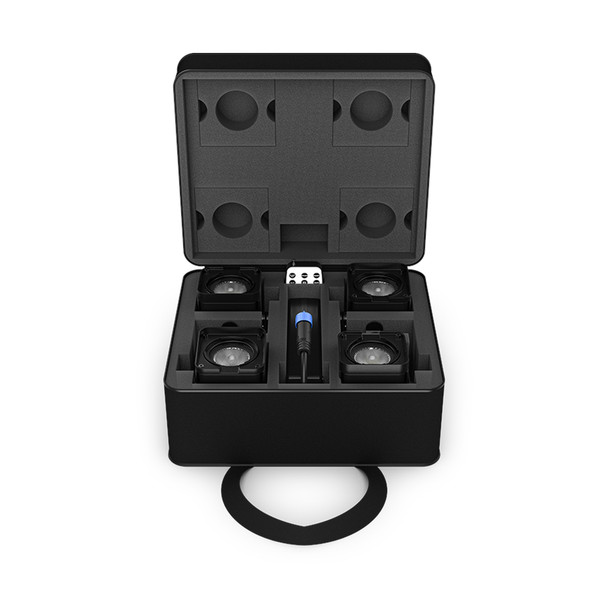

- 1 carry case
- 1 RF remote
- 1 QRG
Why We Like This
The Freedom H1 IP ILS X4 delivers everything professionals need in a portable uplighting system—wireless control, battery operation, outdoor durability, and vibrant RGBAW+UV color mixing. Its magnetic mounting, compact size, and included accessories make setup incredibly fast while maintaining the professional performance Chauvet DJ is known for.
FAQs
Q: How many fixtures are included in the kit?
The kit includes four Freedom H1 IP ILS fixtures, a multi-charger, carry case, RF remote, and Quick Reference Guide.
Q: Can the fixtures be used outdoors?
Yes. The fixtures feature an IP54 rating, making them suitable for temporary outdoor use.
Q: How long does the battery last?
Each fixture operates for up to 8 hours at full output or 20 hours on a single color.
Q: Does the Freedom H1 IP ILS support wireless DMX?
Yes. It features a built-in D-Fi transceiver, integrated RF receiver, and is fully ILS compatible for wireless lighting control.
