Description

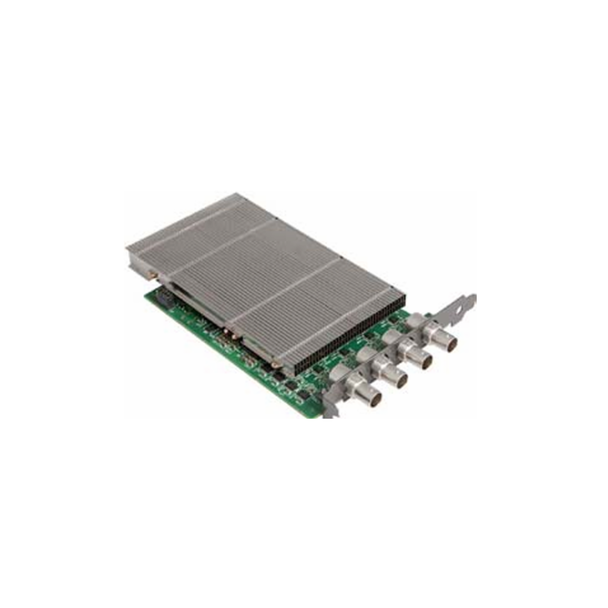

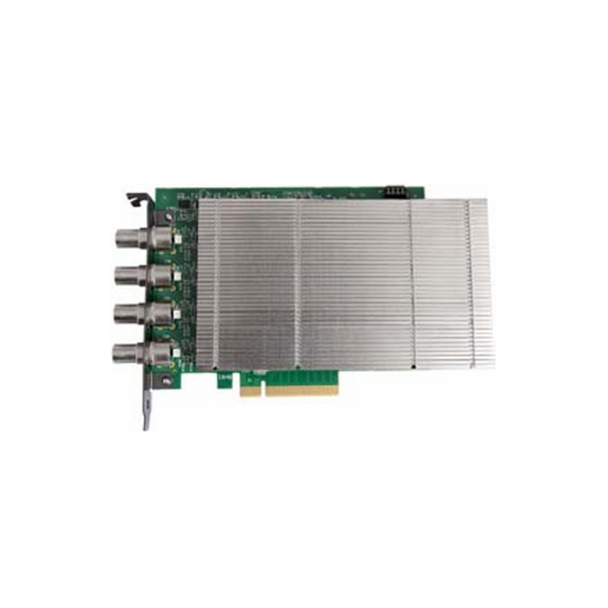

The VisionSC-SDI4 is the perfect solution to AV professionals looking to capture from multiple SDI sources. Ideal for use in broadcast markets or with any SDI capable applications the VisionSC-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second. Each capture channel is hardware timestamped allowing for larger surfaces to be captured and stitched together.
Features
• Four independent 3G-SDI capture channels
• Four channels of 1920x1080p 60fps capture
• Eight lane PCIe Gen 3 interface
• Single PCIe endpoint, allowing for more cards & captures to be placed within a single system.
• Full support of the Vision Feature set
Tech Specs
Board Format: |
PCIe x8 plug-in card |
Dimensions: |
110mm x 177mm |
Connectors: |
4 x BNC Connectors |
Input Mode Detection: |
Supports SMPTE - 352 Payload |
Video Modes: |
480i, 576i 720p, 1080i, 1080p,1080psF, 2048x1080p, 2048x1080psF |
