Description

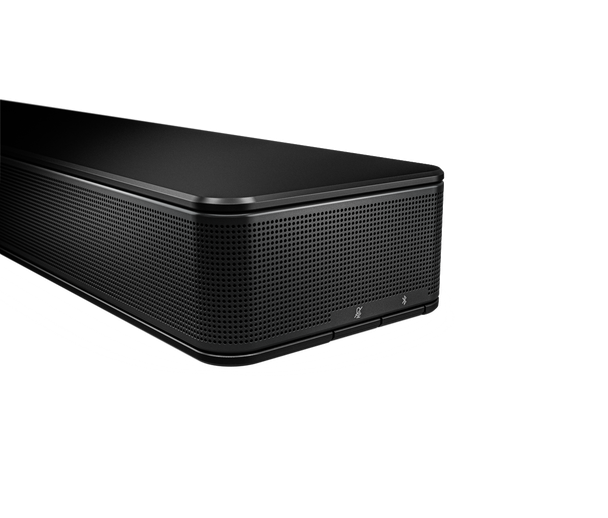

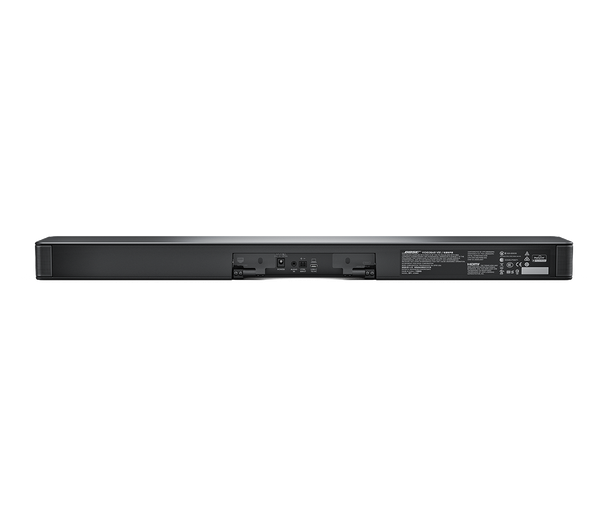

Bose Videobar VB1 is an all-in-one USB conferencing device that brings premium audio and video to huddle spaces to medium-sized meeting rooms up to 6 × 6 meters (20 × 20 feet). With six automatic beam-steering microphones, a 4K ultra-HD camera, and signature sound, the Videobar VB1 helps you huddle up and get more done.

Features

Includes table stand and wall-mount template to mount easily in multiple ways; display mounting accessory also available (sold separately)
Connect to existing network infrastructure , making installation and troubleshooting faster and allowing for remote updates, management, and monitoring
Videobar Configuration software for easy initial setup , available as an app or via web browser; and manage remotely with Videobar Administration software for single-device or enterprise- wide, multi-device changes, and to view device status
Videobar Mobile app for real-time control from a smartphone; easily adjust volume, mute, pan, tilt, zoom, present controls, and Bluetooth pairing
Bluetooth connectivity to use as a standalone speakerphone or to stream music
Works with a variety or third-party hardware devices — learn more about our Alliance Partner Network

Why We Like This

Electronic aiming gives the installer another way to keep sound focused on the audience within the available mounting position.

FAQs

Q: Which equipment does it work with?
A: Compatible with Videobar VB1 and VB-S

Q: Where can this speaker be installed?
A: RoHS.

Q: What installation items are included?
A: The listed items are (1) HDMI 2.0 cable; (1) tabletop setup guide; (1) wall-mount setup guide; (1) safety instruction guide; (1) USB-C 2.0 cable, 16.5 ft (5.0 m); (1) power cord; (1) power supply; (1) USB-C-to-A adapter; (1) tabletop stand with mounting hardware; (1) infrared remote control; (2) AAA batteries; (1) Videobar VB1; (1) quick start guide; (1) 2-pin Euroblock connector; (1) right-angle USB-C adapter; (1) wall-mount template with mounting hardware.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

AC Power Connector:	External power supply with local power cord (included)
AC Power Input:	110–240 VAC, 50/60 Hz, 1.5 A maximum
Audio Inputs, Analog — Connectors:	(1) stereo 1/8-in (3.5 mm)
Bluetooth:	Bluetooth 4.2 HSP, A2DP, AVRCP, Bluetooth Low Energy
Calculated Maximum SPL @ 1 m:	89 dB (IEC 60268-5, mono input, wall-mounted)
Color:	Black
Compatibility:	Compatible with Videobar VB1 and VB-S
Computer Interface Connection:	USB Type-C (USB 3.0 UAC, UVC, HID)
Environmental:	RoHS
Field of View (FOV):	123° diagonal × 115° horizontal × 81° vertical
Focus Distance:	0.5 m (1.6 ft) to ∞
Image Sensor:	8 MP
Included Items:	(1) HDMI 2.0 cable; (1) tabletop setup guide; (1) wall-mount setup guide; (1) safety instruction guide; (1) USB-C 2.0 cable, 16.5 ft (5.0 m); (1) power cord; (1) power supply; (1) USB-C-to-A adapter; (1) tabletop stand with mounting hardware; (1) inf
Inputs (Control):	(1) general purpose, 2-pin Euroblock
LED Status Indicators:	(1) LED light bar, (1) mute LED, (1) Bluetooth LED
Lens:	Up to 5x digital zoom
Maximum Peak Power, Symmetrical:	20 W
Microphone Type, Quantity and Size:	6 microphones
Model:	Videobar Mud Ring
Network:	RJ-45, 1 Gbps Ethernet, IEEE 802.3 (wired) / Wi-Fi 802.11ac (wireless)
Operating Temperature Range:	0 °C to 40 °C (32 °F to 104 °F), 90% non-condensing humidity
Pickup Range:	6.0 m (19.7 ft)
Positioning:	Autoframing mode, manual pan-tilt-zoom (PTZ) with configurable presets
Processing:	Automatic white balance, automatic brightness, digital noise reduction
Product Type:	Loudspeaker mounting hardware
Rated Power, Symmetrical:	20 W per channel, < 0.3% distortion over frequency range
Safety:	IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017
Software Applications:	Videobar Configuration (Windows, macOS, web browser), Videobar Administration (Windows), Videobar Mobile (Android, iOS)
Storage Temperature:	-40 °C to 70 °C (-40 °F to 158 °F), 93% relative humidity
Supported Video Resolutions:	UHD 2160p (4K), 1080p, 720p, 960×480, 848×480, 640×480, 640×360, 432×240 (30 fps)
Suspension/Mounting:	Tabletop stand, wall-mount template, display mounting kit (optional), mud ring (optional)
System Requirements:	Windows 7, 8.1, or 10 / macOS 10.10 or later / Chrome OS (Google Chromebook)
Technology:	Static and adaptive dynamic beam-forming, 3 exclusion zones, stereo acoustic echo cancellation (AEC), digital noise suppression
USB Device Video Class (UVC):	v1.1
Unit of Sale:	Each
Video Encoding:	H.264, M-JPEG
