Description

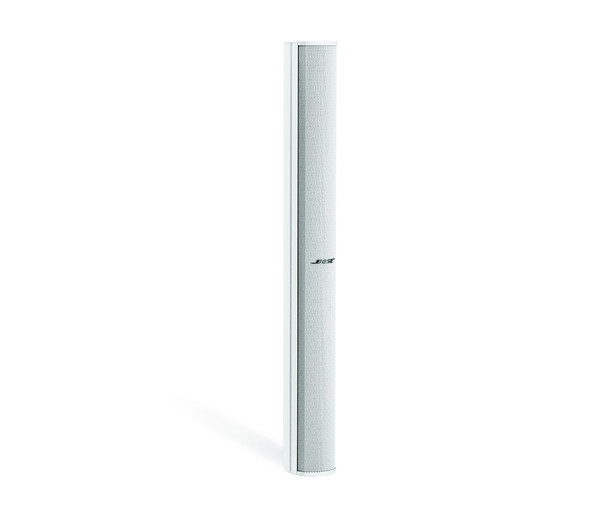

The Bose MA12EX extended range indoor/outdoor column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wider 160° horizontal coverage. It has weather-resistant components that allow use in outdoor applications.
Features
- Low-Frequency: 12 × 2.25 in (57 mm) high-excursion, weather-resistant drivers
- Power Handling, long-term continuous: 150 W
- Frequency Range (-10 dB): 58 Hz – 16,000 Hz
- Coverage, Horizontal: 160°
- Ingress Protection: IPX5

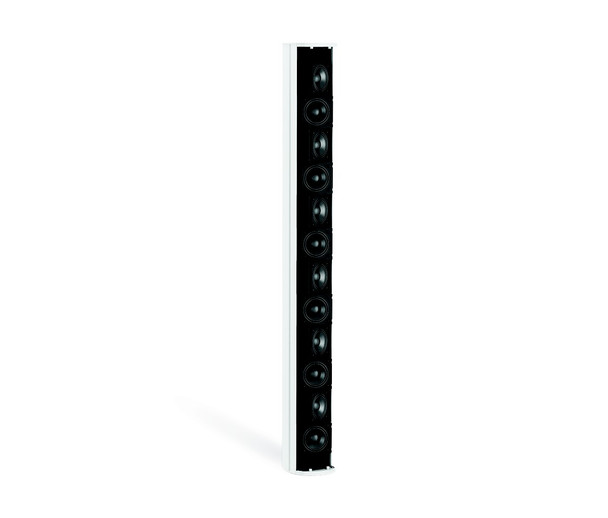

- Twelve 2.25-inch (57 mm) full-range drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
- Frequency range down to 58 Hz allows full-range speech and light music reinforcement without separate low-frequency loudspeakers. For extended bass and higher output levels, use with Bose MB4, MB12, or MB24 modular bass loudspeakers.
Why We Like This
The narrow column format is useful where a conventional speaker cabinet would take up too much visible wall space.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω. Transformer settings: Transformer Taps, 100V: CVT-MA12EX transformer available; Transformer Taps, 70V: CVT-MA12EX transformer available.
Q: Where can this speaker be installed?
A: Outdoor use. Its ingress protection rating is IPX5.
Q: Does it need additional signal processing?
A: Bose loudspeaker EQ.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
112 dB continuous, 118 dB peak |
Color: |
White |
Coverage, Horizontal: |
160° |
Coverage, Vertical: |
20° |
Driver Protection: |
Overload protection |
Enclosure Material: |
Extruded-aluminum sidewalls with zinc-plated steel top & bottom endcaps, all powder-coated |
Environmental: |
Outdoor use |
Frequency Range (-10 dB): |
58 Hz – 16,000 Hz |
Grille: |
Aluminum, powder-coated finish |
Ingress Protection: |
IPX5 |
Low-Frequency: |
12 × 2.25 in (57 mm) high-excursion, weather-resistant drivers |
Model: |
Panaray MA12EX Loudspeaker White |
Nominal Impedance: |
8 Ω |
Power Handling, Peak: |
600 W |
Power Handling, long-term continuous: |
150 W |
Product Type: |
Array loudspeaker |
Recommended Signal Processing: |
Bose loudspeaker EQ |
Sensitivity (SPL/1 W at 1 m): |
87 dB |
Suspension/Mounting: |
6 × M6 threaded inserts |
Transformer Taps, 100V: |
CVT-MA12EX transformer available |
Transformer Taps, 70V: |
CVT-MA12EX transformer available |
Unit of Sale: |
Each |
