Description

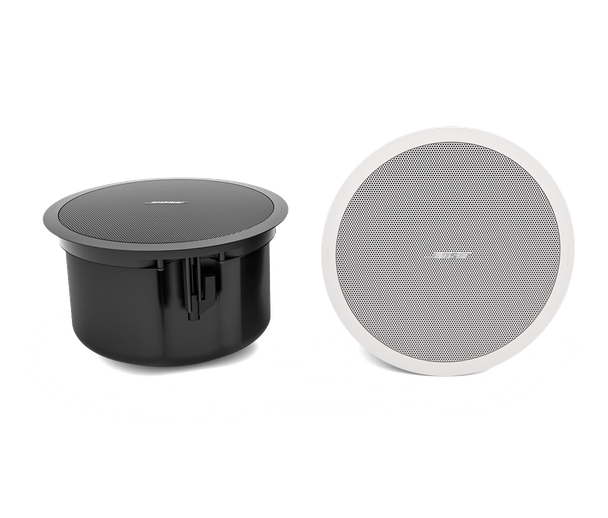

The Bose FreeSpace FS4CE White In-Ceiling Loudspeaker is an in-ceiling speaker for background music and voice announcements in commercial spaces. Its voicing is shared across the FreeSpace FS range for installations that combine different speaker formats.
Features
- Low-Frequency: 1 × 4.5 in (114 mm) woofer
- Power Handling, long-term continuous: 40 W
- Frequency Range (-10 dB): 70 – 17,000 Hz
- Coverage, Horizontal: 145°
- Ingress Protection: IP55
- Customize systems with confidence using in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mixand-match installations. DesignMax subwoofers and larger models can expand your system design options even further
- Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
Why We Like This
The outdoor-rated enclosure gives the system designer more placement options for spaces that extend beyond the building.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypass). Transformer settings: Transformer Taps, 100V: 5, 10, 20, 40 W, bypass; Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, bypass.
Q: What ceiling opening is needed?
A: The specified cutout is 9.8 in (249 mm).
Q: What installation items are included?
A: The listed items are (2) weather-resistant input covers; (1) cutout template.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
104 dB |
Ceiling Cutout: |
9.8 in (249 mm) |
Color: |
White |
Coverage, Horizontal: |
145° |
Coverage, Vertical: |
145° |
Driver Protection: |
Recommended high-pass protection 70 Hz with minimum 24-dB/octave filter |
Enclosure Material: |
Engineered-plastics front baffle, highly UV fade-resistant, with integrated steel-formed backcan |
Frequency Range (-10 dB): |
70 – 17,000 Hz |

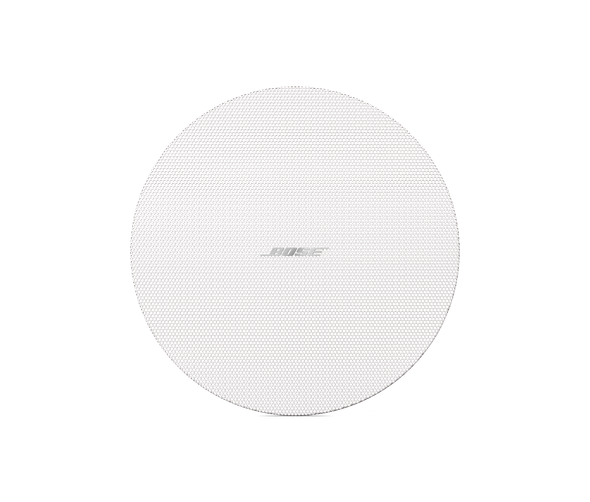

Grille: |
Perforated steel, powder-coated finish |
Included Items: |
(2) weather-resistant input covers; (1) cutout template |
Ingress Protection: |
IP55 |
Low-Frequency: |
1 × 4.5 in (114 mm) woofer |
Model: |
FreeSpace FS4CE White |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
160 W |
Power Handling, long-term continuous: |
40 W |
Product Type: |
In-ceiling loudspeaker |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
88 dB |
Suspension/Mounting: |
(3) mounting arms, (1) safety cable attachment point |
Transformer Taps, 100V: |
5, 10, 20, 40 W, bypass |
Transformer Taps, 70V: |
2.5 W, 5 W, 10 W, 20 W, 40 W, bypass |
Unit of Sale: |
Pair |
