Description
Designed to provide surface-mount bass augmentation for new and existing background music systems. Features one 5.25-inch (133 mm) woofer that delivers deep bass down to 40 Hz without audible distortion.
Features
- Low-Frequency: 5.25 in (133 mm) dual-voice-coil low-frequency driver
- Power Handling, long-term continuous: 70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono
- Frequency Range (-10 dB): 40 Hz – 315 Hz
- Coverage, Horizontal: Omnidirectional below 200 Hz
- Low-frequency loudspeaker featuring one 5.25-inch (133 mm) woofer that delivers deep, non-localized bass down to 40 Hz without audible distortion. For surface-mount applications.
Why We Like This
The separate satellite and bass-module format lets the installer distribute the visible speakers around the room.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 5 Ω mono direct (transformer bypassed). Transformer settings: Transformer Taps, 100V: 25 W, 50 W, 100 W, 200 W; Transformer Taps, 70V: 25 W, 50 W, 100 W, 200 W.
Q: Where can this speaker be installed?
A: Indoor only.
Q: What installation items are included?
A: The listed items are (1) installation guide; (1) mounting bracket; (1) wiring panel cover; (1) FreeSpace 3 Module.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
Per channel: 96 dB continuous, 102 dB peak / Mono: 102 dB continuous, 108 dB peak |
Color: |
White |
Coverage, Horizontal: |
Omnidirectional below 200 Hz |
Coverage, Vertical: |
Omnidirectional below 200 Hz |
Driver Protection: |
Recommended high-pass filter 40 Hz high-pass filter |
Enclosure Material: |
High-density wood composite with solid color PVC laminate |
Environmental: |
Indoor only |
Frequency Range (-10 dB): |
40 Hz – 315 Hz |
Included Items: |
(1) installation guide; (1) mounting bracket; (1) wiring panel cover; (1) FreeSpace 3 Module |
Low-Frequency: |
5.25 in (133 mm) dual-voice-coil low-frequency driver |
Model: |

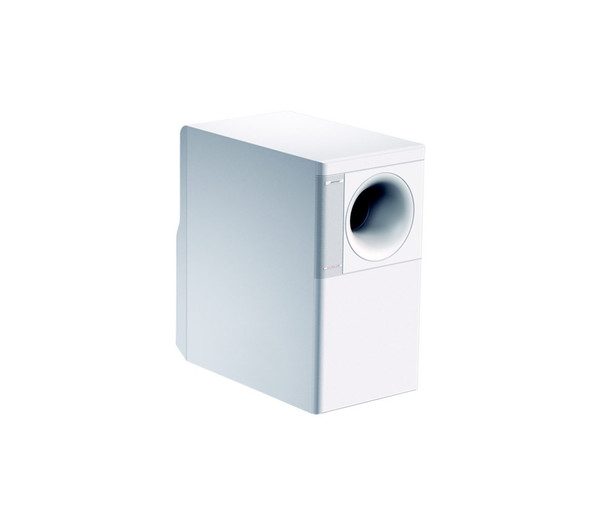

FreeSpace 3 Surface-Mount Acoustimass Bass Module White |
Nominal Impedance: |
5 Ω mono direct (transformer bypassed) |
Power Handling, Peak: |
70/100 V: 800 W peak mono / Low impedance: 200 W peak per channel stereo or 400 W peak mono |
Power Handling, long-term continuous: |
70/100 V: 200 W mono / Low impedance: 50 W per channel stereo or 100 W mono |
Product Type: |
Subwoofer |
Recommended Signal Processing: |
Recommended |
Sensitivity (SPL/1 W at 1 m): |
Per channel: 76 dB / Mono: 79 dB |
Suspension/Mounting: |
Wall-mount bracket, preattached |
Transformer Taps, 100V: |
25 W, 50 W, 100 W, 200 W |
Transformer Taps, 70V: |
25 W, 50 W, 100 W, 200 W |
Unit of Sale: |
Each |
