Description

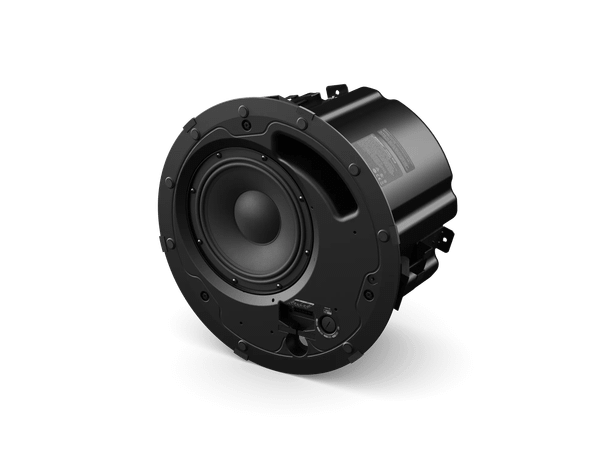

Delivering rich low-end performance, the 180-watt Bose DesignMax DM8C-SUB subwoofer brings instantly impressive bass to any commercial sound installation. The in-ceiling DM8C-SUB has an 8-inch woofer, 38 Hz – 155 Hz frequency range, and is installed easily via QuickHold mounting arms.
Features
- Low-Frequency: 1 × 8 in (203 mm) woofer
- Power Handling, long-term continuous: 180 W
- Frequency Range (-10 dB): 38 Hz – 115 Hz
- Coverage, Horizontal: Omnidirectional below 200 Hz
- Deliver rich bass performance with custom Bose drivers; for optimal performance use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
- Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Why We Like This
The mounting system is a practical advantage when several speakers need to go into a ceiling on the same installation.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω (transformer bypass). Transformer settings: Transformer Taps, 100V: 40, 80, 150 W, bypass; Transformer Taps, 70V: 20 W, 40 W, 80 W, 150 W, bypass.
Q: What ceiling opening is needed?
A: The specified cutout is 13.8 in (349 mm).
Q: Where can this speaker be installed?
A: Indoor only.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
112 dB |
Ceiling Cutout: |
13.8 in (349 mm) |
Color: |
White |
Coverage, Horizontal: |
Omnidirectional below 200 Hz |
Coverage, Vertical: |
Omnidirectional below 200 Hz |
Crossover: |
80 Hz – 200 Hz via active crossover in DSP |
Driver Protection: |
Recommended high-pass protection 40 Hz with recommended 18 dB/octave filter |
Enclosure Material: |
Engineered-plastics front baffle with integrated steel-formed backcan |
Environmental: |
Indoor only |
Frequency Range (-10 dB): |
38 Hz – 115 Hz |
Grille: |

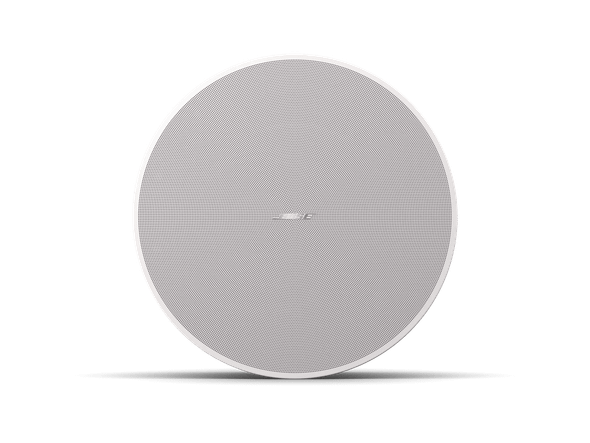

Magnetically attached perforated steel, powder-coated finish, paintable, with safety tether |
Included Items: |
(1) tile bridge; (1) cutout template |
Low-Frequency: |
1 × 8 in (203 mm) woofer |
Model: |
DesignMax DM8C-SUB White |
Nominal Impedance: |
8 Ω (transformer bypass) |
Power Handling, Peak: |
720 W |
Power Handling, long-term continuous: |
180 W |
Product Type: |
Subwoofer |
Recommended Signal Processing: |
Not required, Bose EQ voicing and SmartBass processing available |
Sensitivity (SPL/1 W at 1 m): |
89 dB |
Suspension/Mounting: |
(3) QuickHold spring-loaded mounting arms, (3) safety cable attachment points |
Transformer Taps, 100V: |
40, 80, 150 W, bypass |
Transformer Taps, 70V: |
20 W, 40 W, 80 W, 150 W, bypass |
Unit of Sale: |
Each |
