Description
The Bose Professional DesignMax DM12SE is a weatherized, full-range, 12-inch coaxial surface-mount loudspeaker that delivers deep bass and consistent 102° conical coverage. Combining high output, clear intelligibility, and the sleek aesthetic the DesignMax family is known for, it delivers the flexibility integrators need for indoor or outdoor installations in performance, hospitality, worship, and retail spaces.
Features
- 12” coaxial transducer delivers clear, full-range sound with consistent 102° conical coverage
- Weatherized, injection-molded enclosure for indoor and outdoor reliability
- Deep bass response down to 38 Hz for powerful low-end performance
- Coaxial point-source design ensures clarity and uniformity across the space

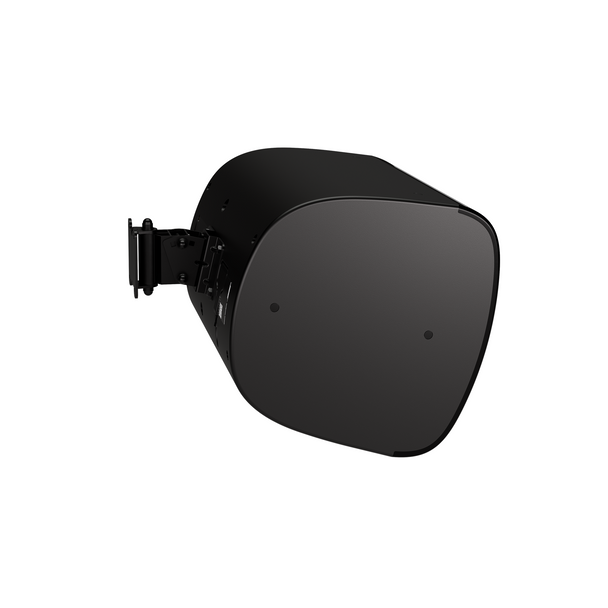

- Rugged, outdoor-ready pan/tilt bracket enables fast installs, precise aiming, and long-term reliability
- Factory-optimized tunings for Bose Professional amplifiers and processors

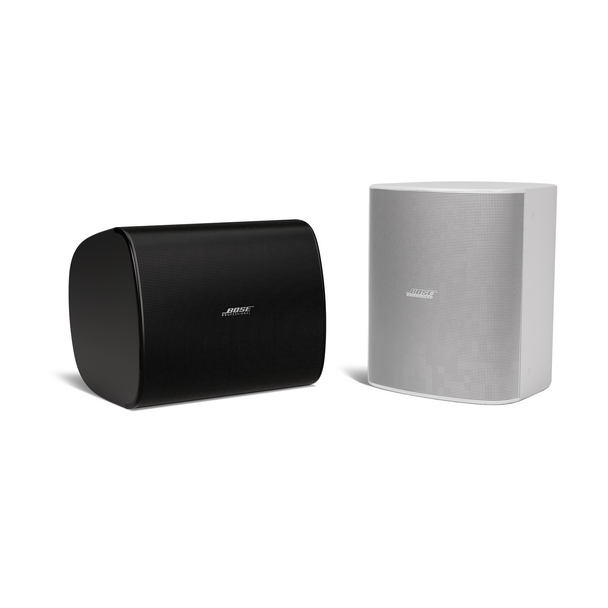

- Available in black or white finishes matching the sleek DesignMax aesthetic
Included in Packaging
(1) DesignMax DM12SE
(1) input panel cover
(1) installation guide
(1) Surface-Mount Pan and Tilt Bracket
Why We Like This
The wide 102° coverage and coaxial design make it easier to achieve consistent sound across large areas. The IP55-rated enclosure and included mounting hardware support flexible indoor and outdoor installations.
FAQs
Q: Can this speaker be used outdoors?
Yes. The DM12SE is weatherized with an IP55 rating, making it suitable for outdoor installations.
Q: Does it require a subwoofer for bass?
It delivers low-frequency response down to 38 Hz, which may reduce the need for a subwoofer depending on the application.
Q: Is additional signal processing required?
No. It can operate without additional processing, though Bose EQ voicing and SmartBass options are available.
Based in Chicago, IL, Gear Club Direct supports musicians, DJs, and integrators every day with reliable gear and knowledgeable service you can trust.
Tech Specs
Enclosure Material: |
Engineered plastics, injection-molded, UV fade-resistant |
Environmental: |
Outdoors or indoors, IP55 |
Grille: |
Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
Logo: |
Rotatable |
Suspension/Mounting: |
(12) M8 threaded inserts (2 top, 2 side, 8 rear) |

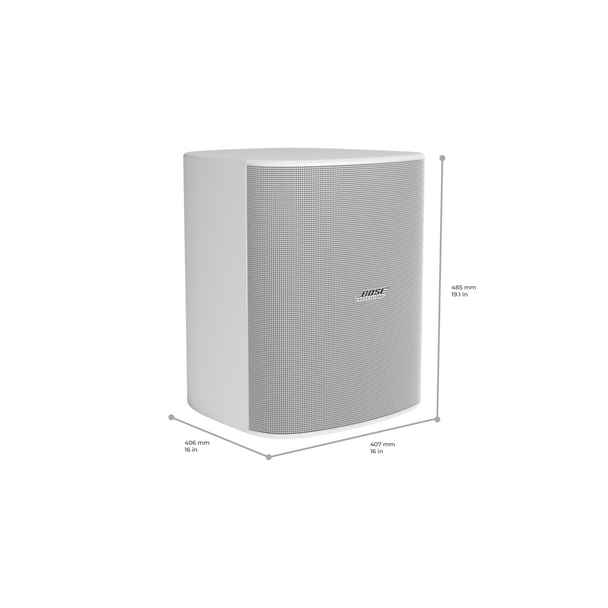

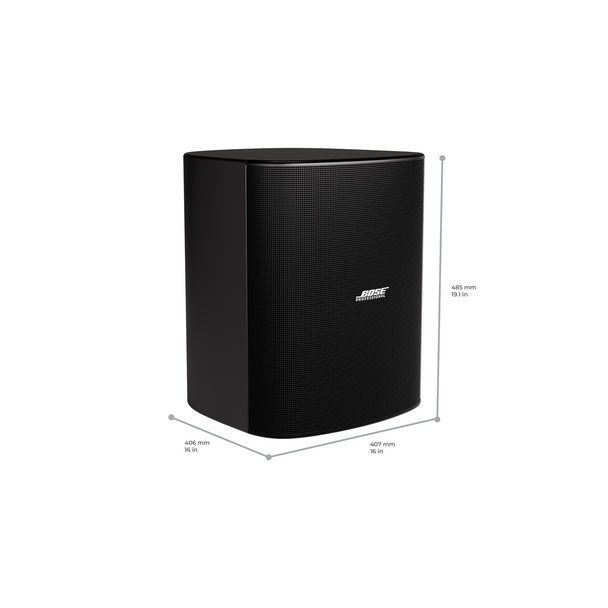

Product Dimensions (H×W×D): |
19.1 in × 16.0 in × 16.0 in |
Net Weight: |
37.4 lb |
Frequency Range (-10 dB): |
38 Hz – 20,000 Hz |
Calculated Maximum SPL @ 1 m: |
119 dB |
Power Handling, long-term continuous: |
300 W |
Recommended Signal Processing: |
Not required, Bose Professional EQ voicing and SmartBass processing available |
Coverage, Vertical: |
102° conical |
Coverage, Horizontal: |
102° conical |
Nominal Impedance: |
8 Ω |
Power Handling, Peak: |
1200 W |
Sensitivity (SPL/1 W at 1 m): |
94 dB |
Driver Protection: |
Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter |
Low-Frequency: |
1 × 12 in (305 mm) woofer, weather-treated |
High-Frequency: |
1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated |
