Description

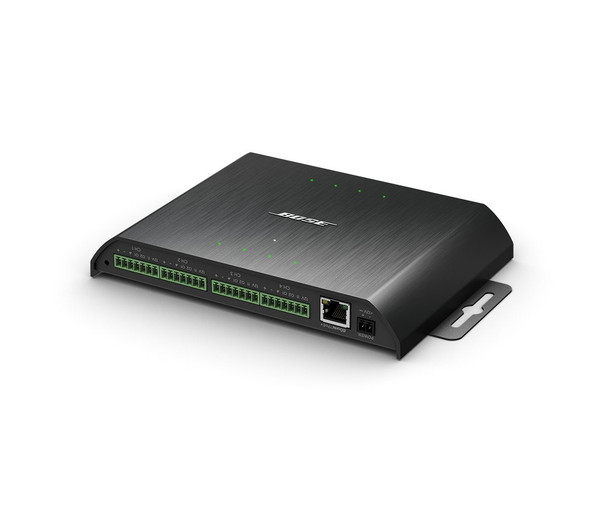

Optimized for use with the EX-1280C, EX-12AEC, and EX-440C, the EX-8ML Dante endpoint, is a convenient, cost effective solution for connecting up to 8 conferencing microphones over a single Cat 5/6 cable. Whether used under a conference table, daisy-chained with other EX or endpoints, or standalone in a rack, the EX-8ML adds 8 high-quality microphone/line inputs, 8 GPI, and 16 GPO to your networked audio system.
Features
- Medium/large conference rooms
- Frequency Response: 20 Hz – 20 kHz (±1 dB)
- THD+N: < 0.01% at any gain setting, input signal 3 dB below maximum
- Audio Inputs, Analog — Input Channels: 8 balanced, mic/line
Why We Like This
Putting the audio connection near the source can simplify a room layout when the main processor is elsewhere.
FAQs
Q: What installation items are included?
A: The listed items are (1) ControlSpace EX-8ML; (1) mounting template; (4) mounting screws; (1) installation guide; (10) cable ties; (2) 2-pin Euroblock connectors; (8) 7-pin Euroblock connectors.
Q: How is it powered?
A: The specified power range is 12 VDC, daisy-chainable.
Q: What mounting provisions does it have?
A: (2) mounting tabs.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
AC Power Consumption: |
5.6 W + 2 W phantom power (if used) |
Audio Inputs, Analog — Connectors: |
(8) 7-pin Euroblock, 3.81 mm, detachable |
Audio Inputs, Analog — Input Channels: |
8 balanced, mic/line |
Audio Inputs/Outputs, Digital — Connectors: |
(1) RJ-45 Dante in / (1) RJ-45 Dante out |
Compatible with: |
ControlSpace EX-1280, ControlSpace EX-440C, ControlSpace EX-1280C, ControlSpace EX-12AEC, ControlSpace EX Endpoint Microphone Extension Cable, ControlSpace EX Endpoint Mounting Bracket |
Electrical — Connectors: |
(1) RJ-45 port / (1) Euroblock, 2 pins |
Electrical — Power Range: |
12 VDC, 200 mA |
Equivalent Input Noise: |
-115 dBu at +45 dB gain |
Frequency Response: |
20 Hz – 20 kHz (±1 dB) |
Included Items: |
(1) ControlSpace EX-8ML; (1) mounting template; (4) mounting screws; (1) installation guide; (10) cable ties; (2) 2-pin Euroblock connectors; (8) 7-pin Euroblock connectors |
Input Impedance: |
> 1.8 kΩ at any gain setting |
Inputs (Control): |
(8) general-purpose (1 per audio input), 7-pin Euroblock, 3.81 mm |
LED Status Indicators: |
(1) power LED, (8) input signal status LEDs |
Maximum Input Level: |
+8 dBu at 0 dB gain |
Model: |
ControlSpace EX-8ML Dante Endpoint |
Outputs (Control): |
(16) general-purpose (2 per audio input), 7-pin Euroblock, 3.81 mm |
Phantom Power: |
48 VDC, software-selectable per input |
PoE Class: |
Class 0 802.3at PoE+, PD-compliant |
Power Range: |
12 VDC, daisy-chainable |
Product Type: |
Audio processor or interface |
Sensitivity Options: |
0 dB, +15 dB, +30 dB, +45 dB, software-selectable |
Software Applications: |
ControlSpace Designer 5.0 or later (Windows) |
Suspension/Mounting: |
(2) mounting tabs |
THD+N: |
< 0.01% at any gain setting, input signal 3 dB below maximum |
Unit of Sale: |
Each |
