Description

A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications.

Features

All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model
12 acoustic echo cancellers (AEC) route to both analog and Dante inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors
Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings
2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement
PSTN connection (RJ-11) for worldwide POTS/analog telephone systems
USB connection facilitates easy integration with PC soft codecs

Why We Like This

Networked audio is useful when the system needs to carry multiple channels between equipment locations.

FAQs

Q: What installation items are included?
A: The listed items are (1) ControlSpace EX-1280C; (5) 6-pin Euroblock connectors; (2) 3-pin Euroblock connectors; (16) cable ties; (1) installation guide.

Q: What mains power does it accept?
A: The specified mains range is 85–264 VAC, 50/60 Hz.

Q: What mounting provisions does it have?
A: Standard rack ears.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

A/D and D/A Converters:	48 kHz / 24-bit
AC Power Consumption:	35 W typical at 104 °F (40 °C) ambient
AEC-Enabled:	Yes
Acoustic Echo Cancelation (Aec) — Channels:	12

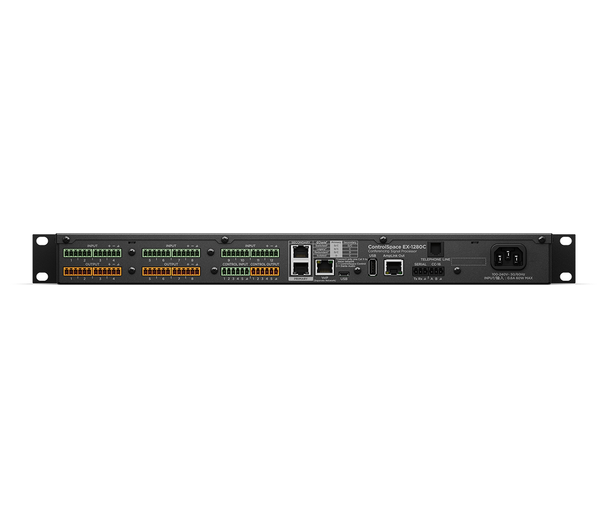

Audio Inputs, Analog — Connectors:	(1) 6-pin Euroblock, 3.81 mm, detachable
Audio Inputs, Analog — Input Channels:	12 balanced, mic/line
Audio Inputs/Outputs, Digital — Channels:	64 Dante in × 64 Dante out, primary/secondary / 8 AmpLink out
Audio Inputs/Outputs, Digital — Connectors:	(2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out
Audio Latency:	1.05 ms, analog input to analog output without AEC
Audio Outputs, Analog — Channels:	8 balanced, line
Audio Outputs, Analog — Connectors:	(6) 6-pin Euroblock, 3.81 mm
Channel Separation (Crosstalk):	< -105 dB at +4 dBu, 1 kHz input signal
Computer Interface Connection:	RJ-45 (Dante), through network router or switch
Cooling System:	2 variable-speed side-venting fans
DSP-Enabled:	Yes
Delay:	43 s
Digital Input Voltage:	0 V – 3.3 V (1.6 V threshold)

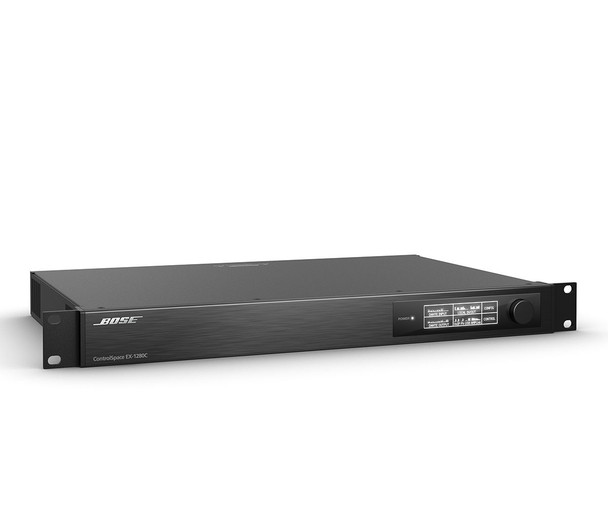

Display:	256 × 64 OLED
Dynamic Range:	> 115 dB, A-weighted, 20 Hz – 20 kHz, analog input to analog output
Equivalent Input Noise:	-118 dB at 44 dB gain
Frequency Response:	20 Hz – 20 kHz (+0.3 dB/-0.1 dB)
Included Items:	(1) ControlSpace EX-1280C; (5) 6-pin Euroblock connectors; (2) 3-pin Euroblock connectors; (16) cable ties; (1) installation guide
Input Impedance:	12 kΩ at 1 kHz, with or without phantom power
LED Status Indicators:	(1) power/status LED
Latency:	50 ms
Mains Connector:	IEC 60320-C14 inlet
Mains Voltage:	85–264 VAC, 50/60 Hz
Maximum Calculation:	3.6 GIPS / 2.7 GFLOPS
Maximum Input Level:	+24 dBu
Maximum Output Level:	+24 dBu
Model:	ControlSpace EX-1280C Conferencing Processor 120V NA
Noise Reduction:	32 dB
Operating Temperature Range:	0 °C to 40 °C (32 °F to 104 °F)
Output Impedance:	200 Ω
Output Voltage:	High: 8 V (open circuit), 2.5 V at 10 mA / Low: < 1 V at 100 mA, push-pull
Outputs (Control):	(5) digital, 6-pin Euroblock, 3.81 mm, detachable
PSTN:	RJ-11, 1 line, Tx/Rx (transmit/receive)
Phantom Power:	48 VDC, 10 mA, software-selectable per input
Power Dissipation:	60 W (205 BTU/hr, 52 kcal/hr)
Product Type:	Audio processor or interface
Rack Spaces:	1RU
References:	4
Safety:	UL60065 (8th edition), CAN/CSA-C22.2 No.60065 (8th edition), IEC/EN60065 (8th edition)
Sample Rate / Bit Depth:	48 kHz / 24-bit
Sensitivity Options:	0 dB, +14 dB, +24 dB, +32 dB, +44 dB, +54 dB, +64 dB
Signal Processor/CPU:	32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor
Software Applications:	ControlSpace Designer 5.5 or later (Windows)
Suspension/Mounting:	Standard rack ears
THD+N:	0.002% at +4 dBu (A-weighted, 20 Hz – 20 kHz)
Tail Length:	480 ms
Type:	Dante (input/output), AmpLink (output)
USB:	Micro-B type, stereo in/out
Unit of Sale:	Each
VoIP:	RJ-45, 2 lines
Voltage Range, Analog:	0 V – 3.3 V (5 V maximum)
