Description

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs.

Features

Low-Frequency: 1 × Bose LF5 high-excursion 5.25 in (133 mm) woofer, 1.5 in (38 mm) voice coil
High-Frequency: 1 × Bose EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
Power Handling, long-term continuous: 100 W
Frequency Range (-10 dB): 90 Hz – 18,000 Hz
Coverage, Horizontal: 100°
Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters

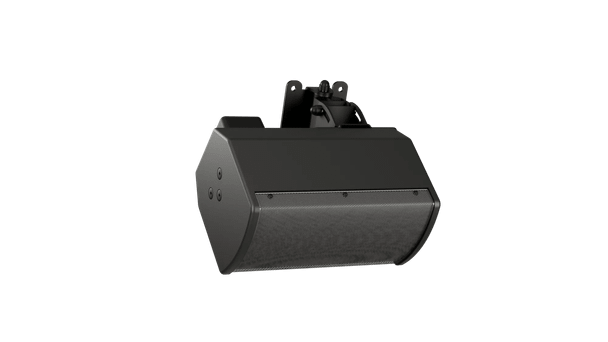

Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware

Why We Like This

The outdoor-rated enclosure gives the system designer more placement options for spaces that extend beyond the building.

FAQs

Q: What amplifier connection does it require?
A: The nominal impedance is 8 Ω. Transformer settings: Transformer Taps, 100V: 10, 20, 40, 80 W; Transformer Taps, 70V: 5 W, 10 W, 20 W, 40 W, 80 W.

Q: Where can this speaker be installed?
A: Indoor or outdoor. IP55-rated for direct exposure outdoor ratings. Its ingress protection rating is IP55 per EN60529; IP33C per EN 54-24.

Q: What installation items are included?
A: The listed items are (1) ArenaMatch Utility AMU105 loudspeaker; (1) U-bracket; (4) M8 screws; (4) M4 screws; (1) input cover; (2) rubber washers; (1) T3 square drive; (1) installation guide.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Calculated Maximum SPL @ 1 m:	116 dB (free field), 118 dB (wall/ceiling)
Color:	Black
Coverage, Horizontal:	100°
Coverage, Vertical:	100°
Crossover:	2.0 kHz, passive
Enclosure Material:	Exterior-grade plywood
Environmental:	Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
Frequency Range (-10 dB):	90 Hz – 18,000 Hz
Grille:	3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
High-Frequency:	1 × Bose EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
Included Items:	(1) ArenaMatch Utility AMU105 loudspeaker; (1) U-bracket; (4) M8 screws; (4) M4 screws; (1) input cover; (2) rubber washers; (1) T3 square drive; (1) installation guide
Ingress Protection:	IP55 per EN60529; IP33C per EN 54-24
Low-Frequency:	1 × Bose LF5 high-excursion 5.25 in (133 mm) woofer, 1.5 in (38 mm) voice coil

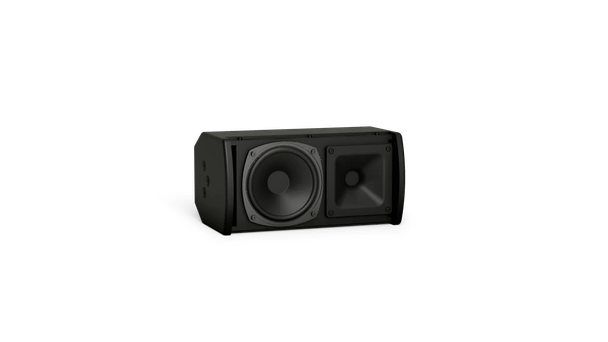

Model:	ArenaMatch Utility AMU105 Outdoor Loudspeaker Black
Nominal Impedance:	8 Ω
Power Handling, Peak:	400 W
Power Handling, long-term continuous:	100 W
Product Type:	Installation loudspeaker
Sensitivity (SPL/1 W at 1 m):	90 dB (free field), 92 dB (wall/celling)

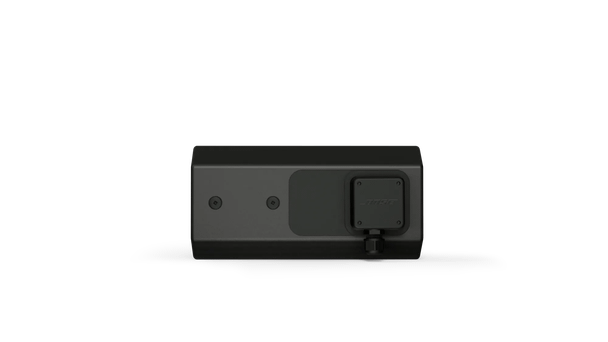

Suspension/Mounting:	2 × M8 threaded inserts for U-bracket, 2 × M8 threaded inserts on rear (75 mm, 2-bolt pattern)
Transformer Taps, 100V:	10, 20, 40, 80 W
Transformer Taps, 70V:	5 W, 10 W, 20 W, 40 W, 80 W
Unit of Sale:	Each
