Description

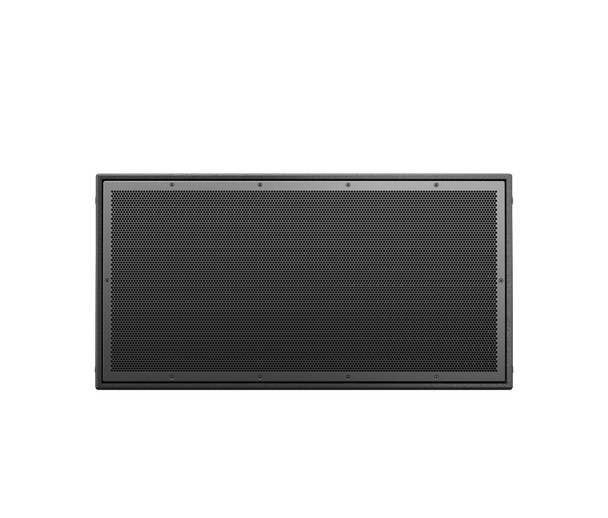

Bose ArenaMatch loudspeakers bring proven DeltaQ sound quality and flexibility to outdoor installations — sports stadiums, arenas, outdoor entertainment centers, and more. Rated for direct-exposure outdoor installations, ArenaMatch DeltaQ modules make it easy to create outdoor loudspeaker arrays that bring consistent, intelligible sound to every listener.
Features
- Low-Frequency: 1 × Bose LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil
- High-Frequency: 6 × Bose EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil
- Power Handling, long-term continuous: Low Frequency: 600 W / High Frequency: 150 W / Passive 750 W
- Frequency Range (-10 dB): 55 Hz – 18,000 Hz
- Coverage, Horizontal: 100° (AM10/100)
- Deliver high-SPL, long-throw music reproduction and vocal intelligibility with a 14-inch neodymium woofer and six Bose EMB2S titanium-diaphragm neodymium compression drivers
Why We Like This
The outdoor-rated enclosure gives the system designer more placement options for spaces that extend beyond the building.
FAQs
Q: What amplifier connection does it require?
A: The nominal impedance is Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω. Transformer settings: Transformer Taps, 100V: 200 W, 400 W; Transformer Taps, 70V: 100 W, 200 W, 400 W.
Q: What installation items are included?
A: The listed items are (1) ArenaMatch AM10 module; (1) input panel cover; (8) input cover screws; (1) installation guide.
Q: Does it need additional signal processing?
A: Presets in ControlSpace Designer software.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Calculated Maximum SPL @ 1 m: |
AM10/60: 122 dB (LF) / 129 dB (HF) / 129 dB (passive). AM10/80: 122 dB (LF) / 128 dB (HF) / 128 dB (passive). AM10/100: 122 dB (LF) / 127 dB (HF) / 127 dB (passive) |
Color: |
Black |
Coverage, Horizontal: |
60° (AM10/60), 80° (AM10/80), 100° (AM10/100) |
Coverage, Vertical: |
10° |
Crossover: |
950 Hz, internal passive or external bi-amp (Bose ControlSpace presets) |
Enclosure Material: |
Exterior-grade birch plywood |
Frequency Range (-10 dB): |
55 Hz – 18,000 Hz |
Grille: |
3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish |
High-Frequency: |
6 × Bose EMB2S titanium-diaphragm, neodymium compression drivers, 2 in (51 mm) voice coil |
Included Items: |
(1) ArenaMatch AM10 module; (1) input panel cover; (8) input cover screws; (1) installation guide |
Ingress Protection: |
IP55 per EN60529; IP33C per EN 54-24 |
Low-Frequency: |
1 × Bose LF14 neodymium 14 in (356 mm) woofer, 4 in (102 mm) voice coil |
Model: |
ArenaMatch AM10/100 Outdoor Loudspeaker |
Nominal Impedance: |
Passive: 8 Ω / Bi-amp: 8 Ω + 8 Ω |
Power Handling, Peak: |
Low Frequency: 2400 W peak / High Frequency: 600 W peak / Passive: 3000 W peak |
Power Handling, long-term continuous: |
Low Frequency: 600 W / High Frequency: 150 W / Passive 750 W |
Product Type: |
Array loudspeaker |
Recommended Power Amplification: |
Bi-amp, LF, 600 W – 1200 W / Bi-amp, HF,150 W – 300 W / Low-Z Passive, 750 W – 1500 W |
Recommended Signal Processing: |
Presets in ControlSpace Designer software |
Sensitivity (SPL/1 W at 1 m): |
AM10/60: 94 dB (LF), 107 dB (HF), 100 dB (passive) / AM10/80: 94 dB (LF), 106 dB (HF), 99 dB (passive) / AM10/100: 94 dB (LF), 105 dB (HF), 98 dB (passive) |
Transformer Taps, 100V: |
200 W, 400 W |
Transformer Taps, 70V: |
100 W, 200 W, 400 W |
Unit of Sale: |
Each |
