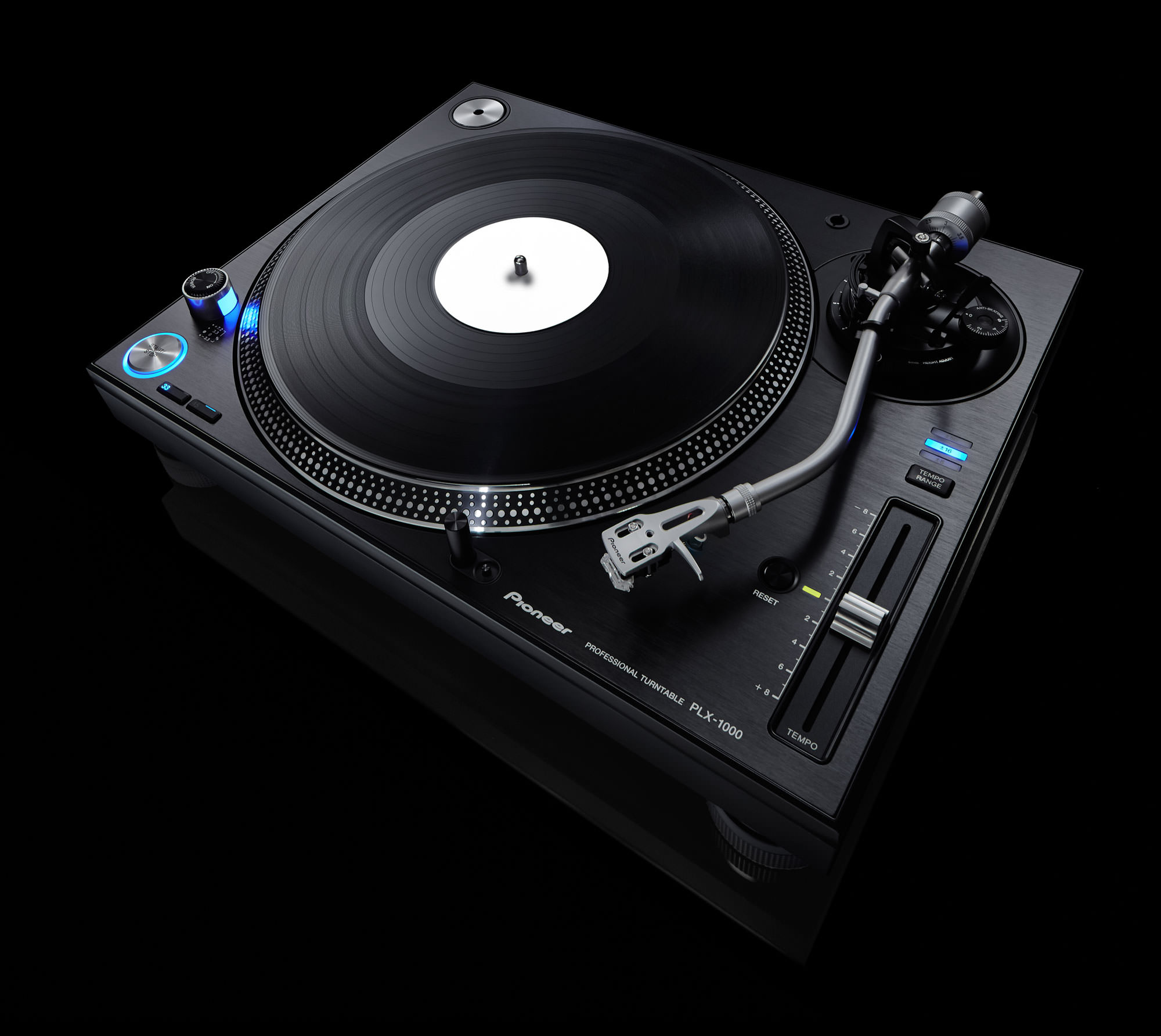

Pioneer PLX-1000 Turntable

Today, Pioneer unleashed  their new turntable.

Born again: Pioneer DJ releases the PLX-1000 high-torque direct drive professional turntable

17th July 2014: Pioneer is marking 20 years in the DJ industry with the launch of a modern classic: the PLX-1000 professional turntable. The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.

The PLX-1000 is available from late August 2014 at an SRP of EUR 699/GBP 599, including VAT.*

Check out the new PLX-1000 at: http://youtu.be/rMF0pYZfuQk

KEY FEATURES OF THE PLX-1000

  • High-torque direct drive (331⁄3 rpm in 0.3 seconds)
  • Classic DJ turntable layout
  • Removable power, ground and phono cables
  • S-shaped tone arm
  • Multiple tempo control options: ±8%, ±16% and ±50%
  • Tempo reset button
  • Solid build for excellent vibration damping
  • Professional-grade gold-plated RCA jacks

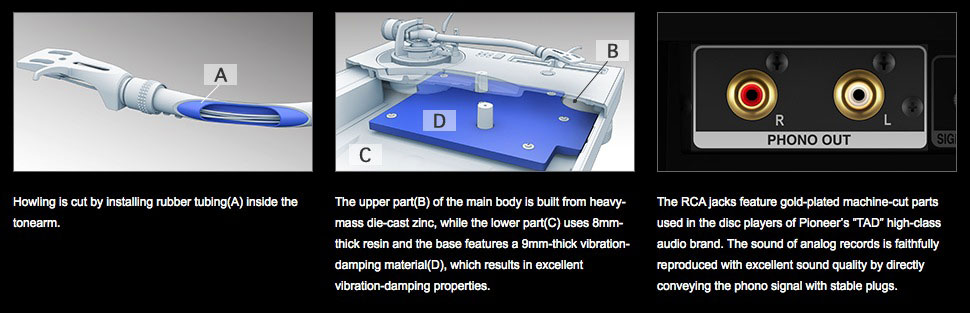

  • Rubber-lined tone arm to improve isolation and prevent feedback

MAIN SPECIFICATIONS

Turntable

Power requirements AC 220-240V, 50 Hz/60 Hz
Power consumption 9W
Main unit weight 13.1 kg
Maximum dimensions (W x H x D) 453 x 159 x 353 mm
Output RCA × 1
Drive method Quartz lock servo type direct drive
Motor 3-phase brushless DC motor
Braking system Electronic brake
Rotation speed 33 1⁄3 rpm, 45 rpm
Rotation speed adjustment range ±8%, ±16%, ±50%
Wow and flutter 0.1% or less WRMS (JIS WTD)
S/N ratio 70 dB (DIN-B)
Turntable Aluminium die-casting diameter: 332 mm
Starting torque 4.5 kg/cm or more

* Cartridge not included

Start time 0.3 seconds (at 33 1⁄3 rpm)

Tone arm

Arm type Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
Effective length 230 mm
Overhang 15 mm
Tracking error Within 3°
Arm height adjustment range 6 mm
Stylus pressure variable range 0 g to 4.0 g (1 scale 0.1 g)
Proper cartridge weight 3.5 g to 13 g (single cartridge)
- When shell weight is used: 3.5 g to 6.5 g
- When only balance weight is used: 6.0 g to 10 g – When sub weight is used: 9.5 g to 13 g
Included accessories Turntable, turntable sheet, slip mat, slip sheet, dust cover, head shell, balance weight, sub weight, head shell, shell weight, adapter for EP record, power cord, audio cable, ground wire, operating instructions

The PLX-1000 is Pioneer’s take on what the market needs, and the market still seems to need Technics 1200s. So instead of over-thinking, Pioneer made its own 1200, but made it better.The PLX-1000 will cost $699. Even the Reloop

16th Jul 2014 Adrian K
