Description

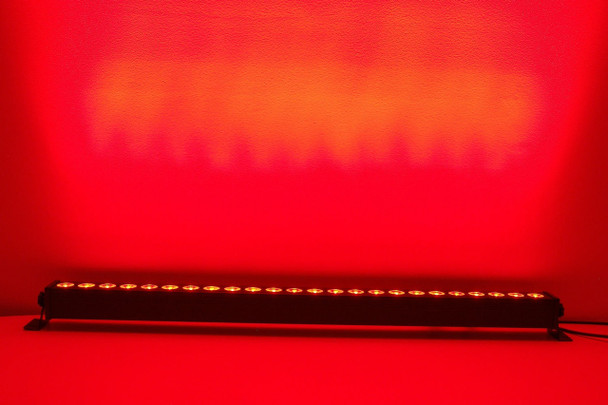

The Event Lighting BAR24X4FXL is a high-impact RGBW pixel control LED bar designed for clubs, stages, houses of worship, and studio environments where dynamic eye candy and layered visual effects are essential. Featuring 24 x 4W RGBW LEDs for powerful wash output and 120 x 0.2W RGB AURA LEDs for stunning pixel effects, this Lite Series fixture delivers vibrant color, animated chases, and immersive audience engagement. With multiple DMX channel modes, RDM support, and IEC power linking, the BAR24X4FXL integrates seamlessly into professional indoor lighting systems.
Dual-Layer LED Design for Wash + AURA Effects
The BAR24X4FXL combines bright RGBW wash LEDs with a secondary RGB AURA layer, giving lighting designers the ability to create depth, motion, and striking visual textures from a single fixture.
- 24 x 4W RGBW LEDs for vibrant stage wash
- 120 x 0.2W RGB LEDs for dynamic AURA effects
- 45° beam angle (RGBW wash)
- 25° beam angle (RGB AURA LEDs)
- 50,000-hour LED lifespan
Lightweight Aluminium Construction for Touring & Install
Housed in a durable black aluminium chassis, the BAR24X4FXL is built for mobile production and permanent installations alike. Its streamlined profile makes it ideal for stage backlines, truss mounting, and vertical positioning with optional accessories.
- Aluminium housing in matte black finish
- Power consumption: 150W
- IP20 rated for indoor professional use
- Dimensions: 1100 x 150 x 120mm (43.3" x 5.9" x 4.7")
- Weight: 4.5 kg (10 lbs)
- Optional vertical stand: XSTANDM8
Features
- Light Source: 24 x 4W RGBW LEDs + 120 x 0.2W RGB LEDs
- Beam Angles: 45° (RGBW), 25° (RGB)
- Control Protocol: DMX with RDM
- DMX Channels: 8 / 15 / 40 / 80 / 128
- Data Connection: 3-pin XLR in/out
- Power Connection: IEC in/out
- Input Voltage: 110–240V AC, 50/60Hz
- Power Consumption: 150W
- IP Rating: IP20
Why We Like This
The BAR24X4FXL combines high-output RGBW wash lighting with vibrant Aura pixel effects, giving lighting designers a versatile fixture capable of delivering both functional stage illumination and striking visual animations.
FAQs
Q: Can the BAR24X4FXL perform pixel mapping effects?
Yes. Multiple DMX channel modes, including up to 128 channels, support advanced pixel mapping and animated effects.
Q: Does the fixture support RDM?
Yes. It is compatible with both DMX512 and RDM for remote configuration and management.
Q: Is it suitable for permanent installations?
Yes. Its durable aluminum housing and slim profile make it suitable for both permanent installations and touring productions.
Q: Can the fixture be mounted vertically?
Yes. An optional XSTANDM8 vertical stand is available for additional installation flexibility.
Based in Chicago, IL, Gear Club Direct supplies professional LED bars, pixel lighting, and stage production equipment for clubs, churches, concert venues, studios, and live entertainment professionals.
