Description

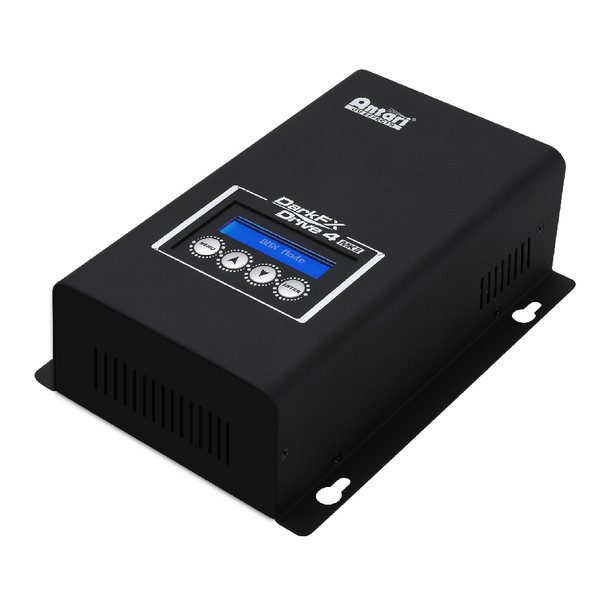

In a compact, mountable, all-metal design, the Antari DarkFX Drive 4 Mk II provides four Phoenix connector outputs for DarkFX UNV fixtures. The robust device has an RDM feature set and also supports DMX 512 and manual control. Other connectors include a Neutrik powerCON input and throughput. A display on the front panel has four control buttons underneath for operating the device.
- Compact and robust design
- 4 output terminals for DARKFX UV fixtures
- Neutrik PowerCON input/thru
- 2 × 16-digit LCD display interface
- DMX control option
- RDM feature set
Why We Like This
The DarkFX Drive 4 Mk II combines professional DMX and RDM functionality with a rugged all-metal design, making it an excellent centralized controller for multiple Antari DarkFX UV fixtures.
FAQs
Q: How many fixtures can the Drive 4 Mk II control?
It provides four Phoenix connector outputs for up to four compatible Antari DarkFX UNV fixtures.
Q: Does it support RDM?
Yes. The Drive 4 Mk II includes full RDM functionality for remote device management.
Q: What control options are available?
The unit supports DMX 512, manual control, and RDM operation.
Q: What type of power connections does it use?
It features professional Neutrik powerCON input and thru connectors.
Based in Chicago, IL, Gear Club Direct supplies professional lighting, atmospheric effects, and installation equipment for theaters, attractions, event venues, and live production professionals.
Tech Specs
Input Voltage: |
AC 100 – 240V, 50 / 60 Hz |
Rated Power: |
100W |
Output current: |
DC12-48V Constant 500mA Max. Per Channel |
Refresh Rate: |
600 Hz |
Ambient Temp. Range: |
0°C – 40°C (32°F – 104°F) |
Fixture Output: |
4 Terminal Block |
Control: |
Manual, DMX 512 |
DMX Channels: |
2 Channel |
Interface: |
Neutrik powerCON (Power) XLR 5-Pin (DMX) |
Housing: |
Metal |
Protection Rating: |
IP-20 Lndoor Use Only |
