Description

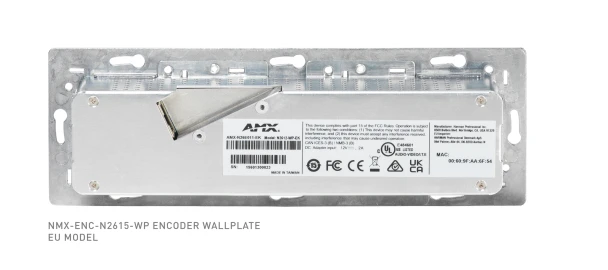

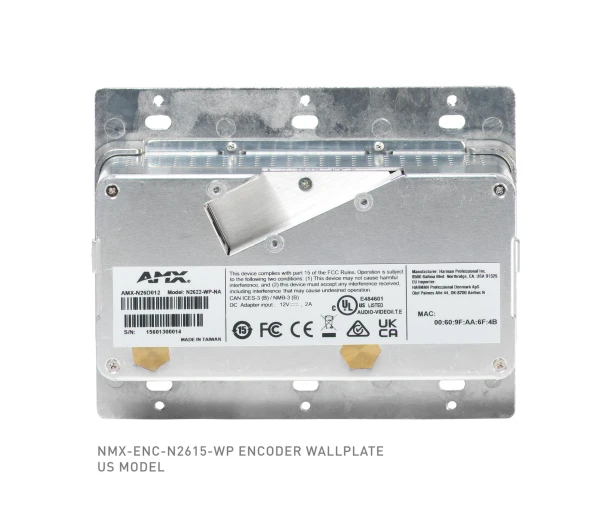

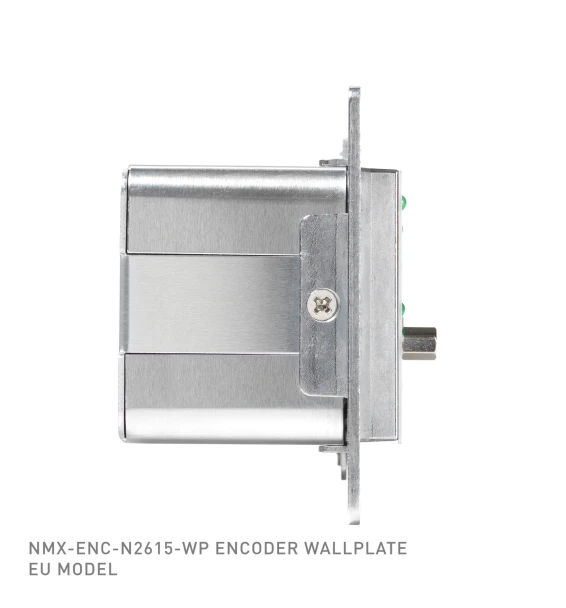

The AMX SVSI NMX-ENC-N2615-WP is a 4K60 MWC encoder wallplate for sending HDMI and USB-C video, audio, and USB 2.0 signals over a network. Designed for classrooms, meeting spaces, courtrooms, bars, and other professional AV environments, it provides low-latency network video encoding in a streamlined wallplate format.
Features
- Encodes HDMI and USB-C video sources for network distribution.
- Supports 4K60 4:4:4 MWC encoding for live video and detailed visual content.
- USB-C input carries video and USB 2.0 signals through one connection.
- Includes HDMI, USB-C, analog stereo audio, and Gigabit Ethernet connections.
- Supports embedded audio from HDMI and USB-C plus unbalanced analog stereo audio.
- Provides full-bandwidth USB 2.0 signal transport.
- Built-in web interface supports video preview images and device management.
- PoE-powered Gigabit Ethernet connection simplifies installation.
- Includes black and white faceplate inserts and wallplate covers.
Why We Like This
The NMX-ENC-N2615-WP brings 4K video encoding, USB-C connectivity, and network distribution into a clean wallplate form factor. It is a practical solution for installed AV systems where users need simple laptop, HDMI, and USB-C connections at the point of use.
FAQs
Q: What video inputs does the AMX NMX-ENC-N2615-WP provide?
A: The wallplate includes one HDMI input and one USB-C input.
Q: Does the USB-C input support USB data?
A: Yes. The USB-C input supports both video and USB 2.0 signals through a single connector.
Q: Is the NMX-ENC-N2615-WP powered by PoE?
A: Yes. It includes a rear Gigabit Ethernet port with PoE support.
Q: Is this model still offered without Dante AV licensing?
A: No. AMX states this product is no longer offered without an enabled Dante AV license, and the related current model number is NMX-ENC-N2615D-WP.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
AMX |
Model: |
AMX-N26E011 |
Product Type: |
4K60 AV over IP Encoder Wallplate |
Product Status: |
Discontinued |
Replacement Model: |
NMX-ENC-N2615D-WP |
Video Inputs: |
HDMI, USB-C |
Video Output: |
Network video over Ethernet via RJ45 |
Video Resolution Support: |
Supports common resolutions up to 4096 x 2160 |
Audio Inputs: |
Embedded audio on HDMI, USB-C, or unbalanced analog stereo |
Audio Output: |
Network PCM audio over Ethernet via RJ45 |
Ports: |
USB Type-C socket, HDMI Type-A socket, 3.5 mm stereo audio port, rear Gigabit Ethernet port with PoE support |
USB Support: |
Full-bandwidth USB 2.0 transport |
Heat Dissipation: |
Up to approximately 44 BTU/hr |
US Version Dimensions: |
4.2 in x 5.2 in x 2.3 in (106.68 mm x 132.08 mm x 58.42 mm) |
EU/UK Version Dimensions: |
2.8 in x 8.3 in x 2 in (71.12 mm x 210.82 mm x 50.8 mm) |
US Version Weight: |
0.92 lb (0.42 kg) |
EU/UK Version Weight: |
0.77 lb (0.35 kg) |
FG Numbers: |
AMX-N26E011 (NMX-ENC-N2615-NA), AMX-N26E011-EK (NMX-ENC-N2615-EK) |
