Description

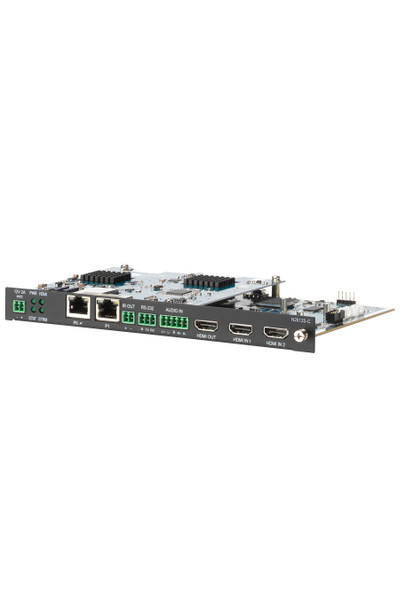

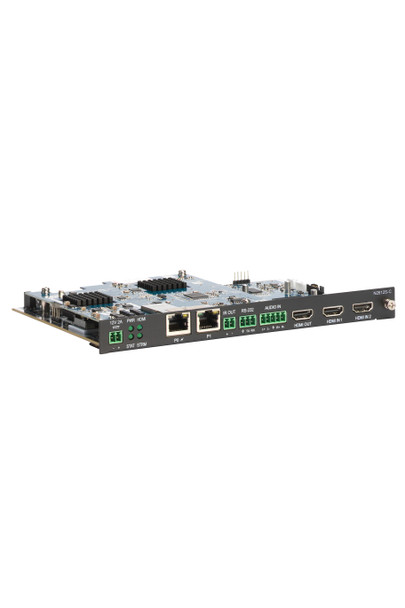

The AMX SVSI NMX-ENC-N2612S-C is a cost-effective, powerfully robust multi-codec, dual-stream encoder card. It features a high-quality, low-latency 4K60 4:4:4 MWC codec that is ideal for decoding both live video and detailed content in classrooms, meeting spaces, courtrooms, bars, and other applications.
Features
- 4K60 MWC/Dante AV-A & 1080p H.26x Multi-Codec, Dual-Stream Encoder Card
- • Dante AV-A • High-Quality 4K60 MWC encoding with sub-2ms latency • High-Compatibility, Low-Bandwidth 1080p H.264 encoding • Video Preview viewable from the built-in web interface or from a touch panel • Switchable Dual HDMI Inputs • Virtual Network USB 2.0 Hub • High security network support and features, including multicast, VLAN...
- Ports: +12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video loop-out, (2) HDMI video input, USB Micro B Host port (front panel), (IR IN) 3-pin 3.5mm screw terminal (front panel)
- Dimensions (H x W x D): 1 1/6" x 7 7/8" x 5" (26.6cm x 200cm x 127cm)
- FG Numbers: AMX-N26E001C
Why We Like This
We like the NMX-ENC-N2612S-C for its installation-focused approach to networked AV, making system expansion and endpoint deployment easier to plan.
FAQs
Q: What does the NMX-ENC-N2612S-C do?
A: The NMX-ENC-N2612S-C is an AMX av-over-ip encoder card for professional AV and control-system installations.
Q: Where is the NMX-ENC-N2612S-C typically used?
A: It is intended for installed AV environments such as conference rooms, classrooms, collaboration spaces, control rooms, and other integration projects where its listed function is required.
Q: What connections are provided on the NMX-ENC-N2612S-C?
A: The source lists these ports: +12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video loop-out, (2) HDMI video input, USB Micro B....
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Audio Inputs: |
Embedded audio on HDMI or Analog Stereo (Balanced) |
Audio Outputs: |
Network PCM or Dante audio over Ethernet via RJ45, HDMI Loop-Out |
Brand: |
AMX |
Dimensions (H x W x D): |
1 1/6" x 7 7/8" x 5" (26.6cm x 200cm x 127cm) |
Environmental: |
Temperature - 32° to 104°F (0° to 40°C) Humidity - 10% to 90% RH (non-condensing) Heat Dissipation - Up to ~85 BTU/hr |
FG Numbers: |
AMX-N26E001C |
JITC Status: |
Approved - 03/2025 |
Model: |
NMX-ENC-N2612S-C |
Ports: |
+12V 2A DC power input, (P0) Gigabit Ethernet port with PoE+ support, (P1) Gigabit Ethernet port, (IR) 2-pin 3.5mm screw terminal, (RS232) 3-pin 3.5mm screw terminal, (Audio) 5-pin 3.5mm screw terminal, HDMI video loop-out, (2) HDMI video input, USB |
Product Type: |
AV-over-IP Encoder Card |
SKU: |
AMX-N26E001C |
Video Inputs: |
(2) HDMI |
Video Outputs: |
Network video over Ethernet via RJ45 port, HDMI Loop-Out |
Video Resolution Support: |
Supports most common resolutions up to 4096 x 2160 - Reference the user manual for specific resolution support. |
