Description

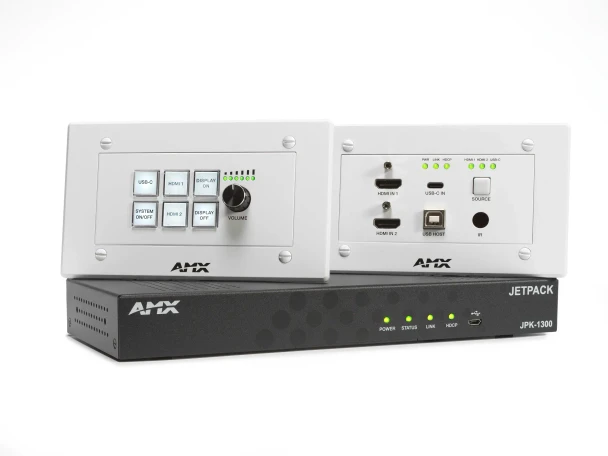

The AMX JPK-1300 Jetpack is a 3x1 switching, transport, and control solution for K-12 classrooms and small-to-medium meeting spaces. This bundled AV kit combines 4K60 HDMI and USB-C switching, video transport, room control, wallplate accessibility, USB pass-through, and audio amplification in a zero-programming solution.
Features
- Complete switching, transport, control, and audio amplification solution for classrooms and meeting spaces.
- Supports two HDMI inputs and one USB-C input at the wallplate transmitter.
- Supports video resolutions up to 4096 x 2160 at 60 Hz.
- Provides HDMI output at the receiver for display connection.
- Includes 2 x 25W amplification for 4-ohm or 8-ohm speakers.
- Includes analog mic/line input, analog audio output, remote mute, relay, IR, and RS-232 control connections.
- Supports USB 2.0 pass-through with up to 220 Mbps bandwidth.
- Can be controlled by keypad buttons, RS-232, Telnet, SSH, Web GUI, and Jetpack Manager.
- Requires zero programming for standard room operation.
- Available in US/AU and EU/UK versions.
Why We Like This
The JPK-1300 bundles the core technologies needed for a modern classroom or meeting room into one coordinated system. It simplifies installation by combining source switching, signal transport, room control, USB connectivity, audio amplification, and wallplate access while avoiding the programming burden of a traditional custom control system.
FAQs
Q: What video inputs are included with the AMX JPK-1300?
A: The JPK-1300 transmitter includes two HDMI inputs and one USB-C input.
Q: Does the JPK-1300 support 4K video?
A: Yes. It supports video resolutions up to 4096 x 2160 at 60 Hz.
Q: Does the JPK-1300 include audio amplification?
A: Yes. The receiver includes a 2 x 25W amplifier output for 4-ohm or 8-ohm speakers.
Q: Does the AMX JPK-1300 require programming?
A: No. AMX describes the JPK-1300 as a zero-programming solution for standard classroom and meeting space applications.
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Brand: |
AMX |
Model: |
AMX-VTK-0001 |
Product Type: |
Switching Transport and Control Solution |
Video Inputs: |
JPK-1300 TX: (2) HDMI, (1) USB-C |
Video Output: |
JPK-1300 RX: (1) HDMI |
Video Resolution Support: |
Up to 4096 x 2160 at 60 Hz |
Audio Inputs: |
JPK-1300 TX: embedded HDMI audio on two HDMI inputs and USB-C input, USB 2.0 audio. JPK-1300 RX: (1) analog mic/line input. |
Audio Outputs: |
JPK-1300 RX: (1) 2 x 25W amplifier output for 4-ohm or 8-ohm speakers, (1) 2-channel analog line-level audio output |
USB Pass-Through Bandwidth: |
Up to 220 Mbps |
Control Options: |
Keypad buttons, RS-232, Telnet, SSH, Web GUI, Jetpack Manager |
Transmitter Ports: |
Two HDMI Type-A ports, USB Type-C port, USB Type-B host port, Micro USB program port, RJ45 AV Link port, RJ45 keypad control port |
Receiver Ports: |
DC power connector, HDMI Type-A output, USB Type-A device port, Micro USB program port, 3.5 mm IR output, RJ45 LAN port, RJ45 AV Link port, RS-232, relay, remote mute, analog audio output, amplifier output, mic/line input |
Power Supply: |
External 24V DC 3.75A, included |
Power Consumption: |
80W maximum for TX, RX, and keypad |
Storage Temperature: |
-4° F (-20° C) to 140° F (60° C) |
Storage Humidity: |
20% to 90% RH (non-condensing) |
Thermal Dissipation: |
273 BTU/hr for TX, RX, and keypad |
Receiver Dimensions: |
9.84 in x 1.18 in x 4.09 in (250 mm x 30 mm x 104 mm) |
US/AU Keypad Weight: |
0.42 lb (0.19 kg) |
US/AU Wallplate Transmitter Weight: |
0.77 lb (0.35 kg) |
EU/UK Keypad Weight: |
0.51 lb (0.23 kg) |
EU/UK Wallplate Transmitter Weight: |
0.73 lb (0.33 kg) |
Receiver Weight: |
1.79 lb (0.81 kg) |
Shipping Length: |
14 in |
Shipping Width: |
10 in |
Shipping Height: |
6 in |
FG Numbers: |
AMX-VTK-0001 (JPK-1300-UA), AMX-VTK-0001-EK (JPK-1300-EK) |
