Description
The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for optimum image quality and pixel-for-pixel image reproduction without chroma subsampling. DXLink 4K60 Fiber allows end users to realize the full potential of their source and display devices by fully supporting 36-bit Deep Color for the richest, most realistic video.
Features
- DXLink 4K60 HDMI Fiber Transmitter Module
- HDMI 2.0 4K60 4:4:4 Over Distance - Ideal for users running critical viewing applications such as operations centers requiring transport which uses the full fidelity of their displays
- High Dynamic Range (HDR) Support - Support for 36-bit Deep Color.
- HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces
- USB 2.0 - High-speed USB 2.0 data from devices like web cameras and storage devices are transmitted without the need for separate cables.
- As Always, Just One Cable - Just like all current AMX DGX Fiber solutions, video, audio, and control are delivered over a single cable. Many competitive products require two or more cable runs which adds significant cost.
- Single MMD SKU - All Fiber Modules include a Multi-Mode Duplex (MMD) SFP module. Customers may replace these with their own Single-Mode Duplex (SMD) module if needed.
Why We Like This
We like the DXFP-TX-4K60 for extending or adapting AV signals with hardware designed specifically for integrated AMX systems.
FAQs
Q: What does the DXFP-TX-4K60 do?
A: The DXFP-TX-4K60 is an AMX fiber av transmitter for professional AV and control-system installations.
Q: Where is the DXFP-TX-4K60 typically used?
A: It is intended for installed AV environments such as conference rooms, classrooms, collaboration spaces, control rooms, and other integration projects where its listed function is required.
Q: What is the ordering number for the DXFP-TX-4K60?
A: The listed number is DXFP-TX-4K60-TAA (FG1010-365-02).
Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.
Tech Specs
Back Connectors: |

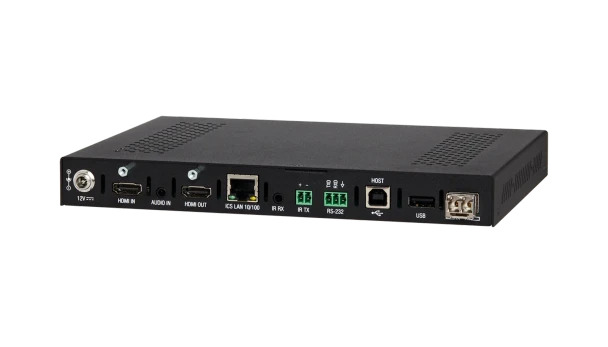

Local Power: 2.1mm DC Power Jack; DXLink Fiber Output: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A); ICS LAN/Ethernet Port: RJ-45 Connector; HDMI Input: HDMI Type-A Receptacle; HDMI Output: HDMI Type-A Receptacle; Serial: 3.5mm Phoenix Rec |
Brand: |
AMX |
Compatible AMX Products: |
Enova DGX 800/1600/3200/6400 Digital Media Switchers with DGX DXLink 4K60 Fiber Input Board (DGX-I-DXFP-4K60) installed, DXLink 4K60 Fiber Receivers (DXFP-RX-4K60) |
Dimensions (HWD): |
220mm x 25mm x 160mm / 8.66'' x 0.98'' x 6.30'' |
DxLink Fiber: |
Fiber Connector: LC Duplex conforming to ANSI TIA/EAI 604-10 (FOCIS 10A) |
FG Numbers: |
DXFP-TX-4K60-TAA (FG1010-365-02) |
HDCP: |
Yes, 1.4, 2.2 |
HDMI: |
Compatible Formats: HDMI, HDCP |
HDMI Audio: |
Audio Format Support: Dolby TrueHD, Dolby Digital, DTS-HD MA, DTS, 2 CH L-PCM, 6 CH L-PCM, 8 CH L-PCM Dolby Digital and DTS support up to 48kHz, 5.1 channels |
HDMI Support: |
Input Resolution Support: Up to 4K@60Hz, 4:4:4 8bit |
Model: |
DXFP-TX-4K60 |
Product Type: |
Fiber AV Transmitter |
SKU: |
FG1010-365-01 |
USB: |
USB HID and USB 2.0 are supported point-to-point to DXLink 4K60 HDMI Fiber Receivers and DGX DXLink 4K60 Fiber Input Boards. |
