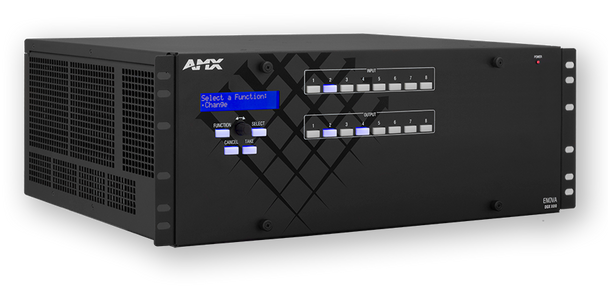

AMX DGX800-ENC Enova DGX 800 Enclosure

The new Enova DGX 800 Enclosure (DGX800-ENC) is a Digital Media Switcher that is ready to support 4K and Ultra High Definition (UHD) content. This robust solution includes a NetLinx NX Integrated Controller , redundant power supplies and can be populated with Enova DGX video input and output boards in addition to optional audio -switching boards. There are four connections per video board, and each enclosure holds two video input boards and two video output boards for a maximum matrix of 8x8.

Features

• Enova DGX 800 Enclosure
• HDMI/HDCP Switching - End-to-end distribution of HDMI/HDCP without interruption or key constraints using InstaGate Pro Technology
• 4K and Ultra High Definition (UHD) Content Ready - Designed to support future resolutions for years to come
• HDCP Compliance Over Fiber - Compatible DXLink Fiber boards transmit uncompressed video, including HDCP protected content, up to 10 Km at 10 Gbps (single mode fiber options transmit 10 Km, multimode 300 m)
• Fiber Your Way - DXLink Fiber boards are available in single mode or multimode; simplex or duplex
• AV and Control over Twisted Pair, Fiber or Both - Send audio, video, bi-directional control and Ethernet over twisted pair or fiber cable, or integrate both into the same system
• Embedded NetLinx NX Integrated Control Processor - Allows any connected device to be managed, monitored or controlled
• Integrated Ethernet Switch - Pass Ethernet through the attached DXLink Twisted Pair or Fiber Transmitters and Receivers
• Analog to Digital Video Conversion with Scaled Outputs - Converts any source signal to digital and uses SmartScale Technology to automatically output video that is perfectly scaled for each connected display

Why We Like This

We like how the DGX800-ENC brings professional signal routing into a focused AMX platform, helping integrators build cleaner systems with fewer workarounds.

FAQs

Q: What does the DGX800-ENC do?
A: The DGX800-ENC is an AMX matrix switcher enclosure for professional AV and control-system installations.

Q: Where is the DGX800-ENC typically used?
A: It is intended for installed AV environments such as conference rooms, classrooms, collaboration spaces, control rooms, and other integration projects where its listed function is required.

Q: What is the ordering number for the DGX800-ENC?
A: The listed number is FG1061-08.
