Description

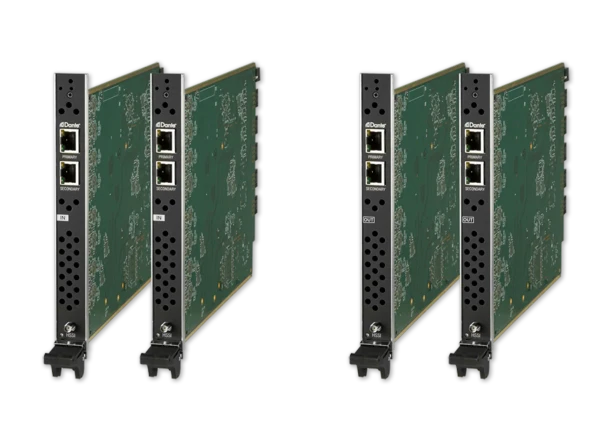

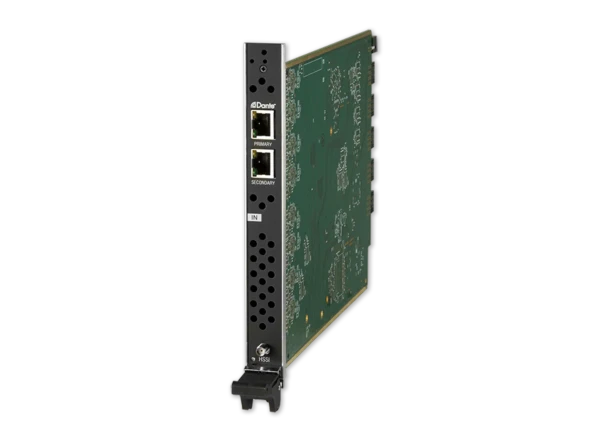

The DGX6400-ASB-DAN is an audio switching board kit featuring direct Dante networked audio feeds to and from the Enova DGX 6400 enclosure. The boards support 16 discrete stereo decoded inputs and 16 discrete stereo encoded outputs. This allows for independent routing of decoded inputs, or breakaway to decoded audio outputs, into a networked audio system such as HARMAN's BSS. Additionally, the kits feature audio breakaway, downmixing, and a host of DSP functionality such as EQ, volume control, and stereo summing on every path

Features

Enova DGX Dante Audio Switching Board Kit for 6400
Direct Dante Integration into the Enova DGX - Reduces the physical installation time for inserted and extracted audio paths from the Enova DGX system as Dante network enabled signals
Easy Integration with Dante Enabled Devices including HARMAN BSS and Crown - Allows for simple decision making when specifying companion DSP to the Enova DGX switching solution
Simplified Integration with Building-Wide Audio - Utilizing Dante, the industry's most standard networked audio format, integration of traditional Centralized AV and networked audio is quick and easy
Audio Breakaway Switching - audio breakaway switching functionality allows for flexible combining of audio and video signals even if they originated from different sources
Integrated DSP Including a 10-Band Parametric EQ on Every Output - Audio equalization allows the sound in each zone to be tuned specifically to match the individual audio characteristics of each environment. After easy setup with the integrated web GUI, the same audio source can be heard perfectly in each zone regardless of acoustical...
FG Numbers: FG1061-864

Why We Like This

We like the DGX6400-ASB-DAN for extending or adapting AV signals with hardware designed specifically for integrated AMX systems.

FAQs

Q: What does the DGX6400-ASB-DAN do?
A: The DGX6400-ASB-DAN is an AMX audio switching board kit for professional AV and control-system installations.

Q: Where is the DGX6400-ASB-DAN typically used?
A: It is intended for installed AV environments such as conference rooms, classrooms, collaboration spaces, control rooms, and other integration projects where its listed function is required.

Q: What is the ordering number for the DGX6400-ASB-DAN?
A: The listed number is FG1061-864.

Based in Chicago, IL, Gear Club Direct supports musicians, integrators, and creators every day with reliable gear and expert service.

Tech Specs

Audio Control per Output:	Independent EQ, volume and balance control per output
Audio Input Compression:	Independent compression per input; attack: 1 to 2000 ms; release: 10 to 5000 ms; compression ratio: 1 to 20; threshold: -60 to 0 dB
Audio Input Gain Compensation:	-24 dB to +24 dB, 1 dB steps
Audio Inputs:	64 Embedded Digital Audio Inputs from Video Input Positions
Audio Output Compression:	10-band parametric EQ with variable center frequency, filter type and Q per band; center frequency: 20 Hz to 20 kHz; EQ gain: -12 to +12 dB; Q: 0.1 to 20; filter types: bell, bass shelving, treble shelving, low pass, high pass, band pass, band stop
Audio Output Sync Delay:	0 to 200 ms
Audio Outputs:	64 Embedded Digital Audio to Video Outputs
Audio Switching:	80 x 80 Matrix Audio Switching with each output having independent volume, EQ, and sync delay
Balance Control:	20 steps each left and right
Brand:	AMX
Downmix Input:	Downmix input fed from selectable embedded audio input from any Enova DGX Input Board. Downmixed audio switchable to all embedded/auxiliary Dante encoded audio outputs
FG Numbers:	FG1061-864
JITC Status:	Approved - 04/2023
Model:	DGX6400-ASB-DAN
Product Type:	Audio Switching Board Kit
SKU:	FG1061-864FX
