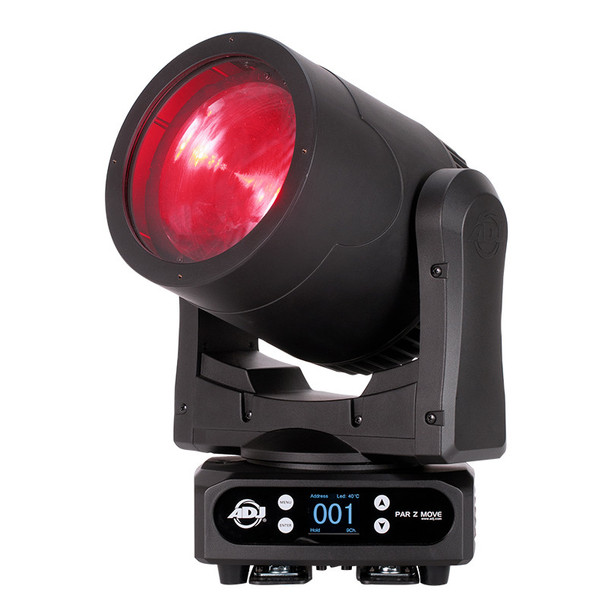

ADJ PAR525 - Par Z Move RGBW

The Par Z Move RGBW is the next generation fixture in ADJ’s popular PAR Z100 Series of C.OB. LED Pars. It’s powered by a high output 300W C.O.B. (Chip on Board) RGBW LED on a moving head base. Featuring motorized zoom (9 ~ 37-degrees) and 0-100% dimming for key lighting or color washing stages, theaters, churches, nightclubs, concert venues and event productions.

There are a variety of professional features such as: DMX and RDM control, pan & fine pan, tilt & fine tilt and a color display with 4 buttons to easily access all the built-in functions. Seetronic locking power In/Out to daisy chain the power and 3-pin and 5-pin XLR, DMX In/Out give lighting designers the best, most reliable connections on the market. There is also a built-in USB port to easily update the software if needed.

Specifications

Optical:

• 300W RGBW COB (Chip On Board) 4-IN-1 LED engine (Red, Green, Blue & White)

• 20,000 hour LED life

• Motorized Zoom: 9 ~ 37-degrees

• CRI: 80

Connections:

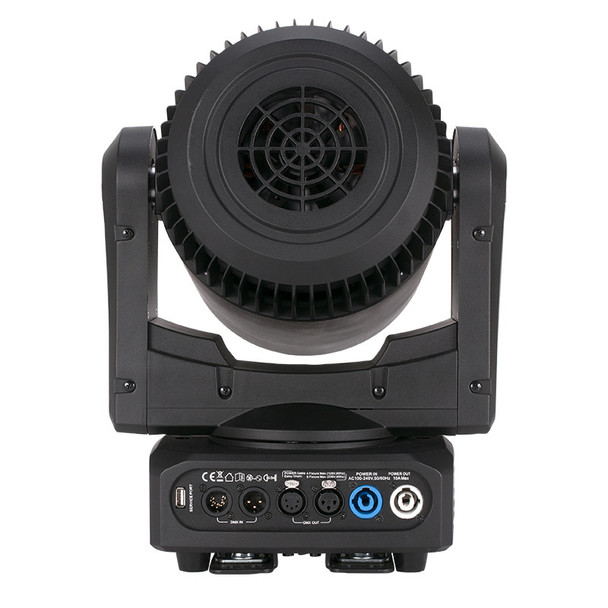

• Seetronic locking power In/Out to daisy chain power

• Daisy chain up to 4 fixtures @ 120V, 8 fixtures @ 230V

• 3-pin & 5-pin XLR, In/Out DMX Connections

• Built-in USB software upgrade port

• With Wired Digital Communication Network

Control:

• 3 DMX Channel Modes: 7, 9, & 11-channels

• Color display with touch button

• DMX-512 & RDM

• Pan: 540-degrees (plus 16-bit Fine Pan)

• Tilt: 200-degrees (plus 16-bit Fine Tilt)

• 0-100% Dimming

Electrical:

• Multi-voltage operation: 100-240V, 50/60Hz

• Power Consumption: 249W max

Dimensions / Weight:

• Dimensions (LxWxH): 12.5” x 8.6” x 17.63” / 306x218x448mm

• Weight: 25 lbs. / 11.3 kg.

What’s In The Box:

• Two Omega Brackets

• Seetronic locking power cable
