Description

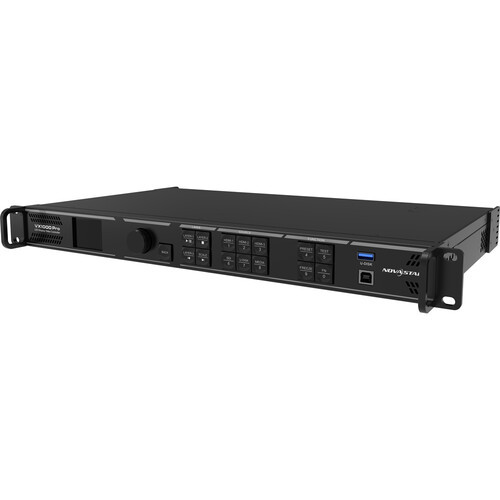

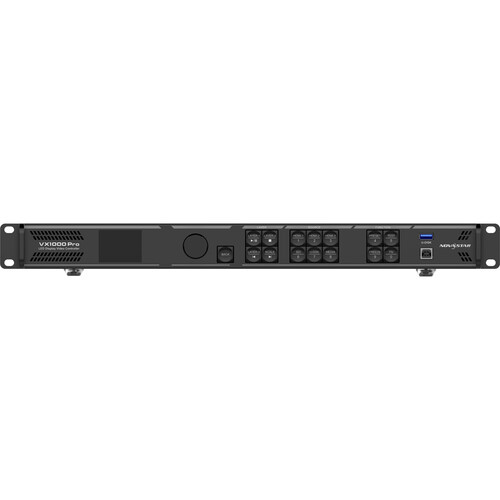

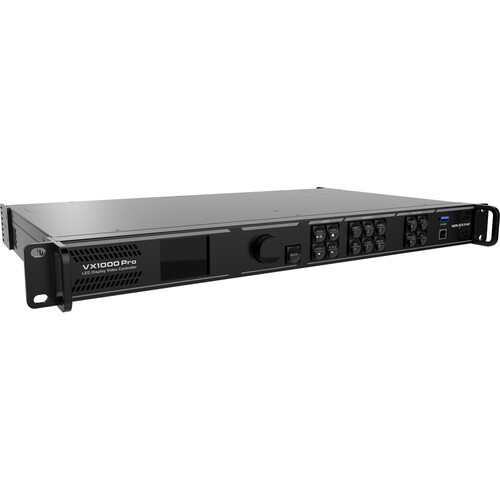

The VX1000 Pro All-in-One Multiview Controller from NovaStar features video processing and control in a single, on-site unit for ultra-large LED screens. It supports video resolutions up to DCI 4K60 and displays up to 10,240 x 8192. Its interface features ten GbE ports, HDMI, 3G-SDI, and USB-A 3.0 connectors, and optional optical fiber outputs.
Features
- Supports up to DCI 4K60 Video Input
- Up to 10,240 x 8192 Pixel Display
- HDMI 2.0, 3G-SDI, USB-A, Two HDMI 1.3 In
- HDMI 2.0 &1.3, 3G-SDI, 10 x GbE Outputs
- Ultrawide, Ultrahigh LED Screen Support
- Video Controller & Bypass Modes
- OSD, 4Kx2K, 4Kx1K, 2Kx1K Display Options
- Optional Optical Fiber Converter Mode
- Compatible with Third-Party 3D Emitter
- Knob, Unico, NovaLCT, VICP App Control
Why We Like This
The NovaStar VX1000 Pro delivers powerful LED processing capabilities in a compact all-in-one platform. With DCI 4K60 support, advanced image calibration, six-layer processing, low-latency performance, and extensive professional connectivity, it provides an excellent balance of performance and flexibility for rental, touring, broadcast, and fixed-installation LED systems.
FAQs
Q: What is the maximum LED display resolution supported by the VX1000 Pro?
The VX1000 Pro supports LED display resolutions up to 10,240 × 8,192 pixels.
Q: Does the controller support DCI 4K video?
Yes. It supports DCI 4K60 video input for high-quality professional video processing.
Q: How many Ethernet outputs are available?
The VX1000 Pro includes 10 Gigabit Ethernet outputs for driving professional LED display systems.
Q: Which software applications can control the VX1000 Pro?
The controller supports NovaLCT, Unico, and VICP, in addition to its built-in front-panel controls.
Q: What types of applications is the VX1000 Pro designed for?
It is ideal for concert touring, rental staging, broadcast, houses of worship, corporate AV, fine-pitch LED displays, trade shows, and permanent LED wall installations.
Tech Specs
Inputs: |
1 x HDMI (HDMI 2.0) 2 x HDMI (HDMI 1.3) 1 x BNC (3G-SDI) 1 x 1/8" / 3.5 mm TRS (Microphone) |
Embedded Audio: |
HDMI/LAN (RJ45)/SDI/USB |
Outputs: |
1x HDMI (HDMI 1.3) 1x HDMI (HDMI 2.0, Looping) 1x BNC (3G-SDI) 10x RJ45 (LAN) 2x SFP+ 1x 1/8" / 3.5 mm TRS |
Other I/O: |
1x USB-A 3.0 / 3.1/3.2 Gen 1 |
