American DJ

American DJ Hexcon L DMX Controller

$169.99
American DJ Hexcon L DMX Controller
American DJ Hexcon L DMX Controller
American DJ Hexcon L DMX Controller
American DJ Hexcon L DMX Controller
American DJ Hexcon L DMX Controller
American DJ Hexcon L DMX Controller
SKU:
HEX136
UPC:
810087374518
Width:
14.20 (in)
Height:
2.70 (in)
Depth:
7.20 (in)
Shipping:
Free Shipping
Current Stock:

Description

The HEXCON L is a 36-channel DMX controller purpose-built for controlling RGBAL+UV “HEX Series” LED fixtures. With dedicated buttons for up to six fixtures or fixture groups, users can manage lighting with precision and ease. Simply set each fixture to DMX mode and assign it to channels 1, 7, 13, 19, 25, or 31 for full functionality.

The control panel includes 24 vivid pre-programmed color macros and 6 user-programmable preset buttons set to Red, Green, Blue, Amber, Lime, and UV. Six multi-function faders provide direct control over color intensity, chase speed and fade, master dimming, and strobe effects.
Eight versatile function buttons let you quickly switch between Color Fade, Color Macro, Auto, Chase, Manual, Sound, Strobe, Presets, and Blackout modes, enabling dynamic lighting with minimal effort.Additionally, there are 24 quick cue color macro buttons, along with 6 white color temperatures preset buttons (2300K, 2700K, 3200K, 4000K, 5600K & 6000K). There is also a USB-C charging port on the main panel to charge most mobile phones and tablets.

Specifications

  • Compact DMX controller for ADJ, RGBAL+UV, HEX series products
  • Control up to 6 individual, RGBAL+UV LED fixtures or fixture groups
  • 6 user programmable presets, direct access buttons
  • 30 Color preset direct access buttons
  • 6 multi-function faders
  • Color Macro playback mode
  • Manual RGBAL+UV intensity control mode
  • Color Fade Mode, Color Chase Mode, Auto Run, Sound Active, and Strobe functions.
  • On the fly Speed & Fade control of all chase programs
  • Sound active mode via internal microphone
  • Adjustable microphone sensitivity
  • Variable strobe- 0.33Hz to 11Hz
  • Blackout button

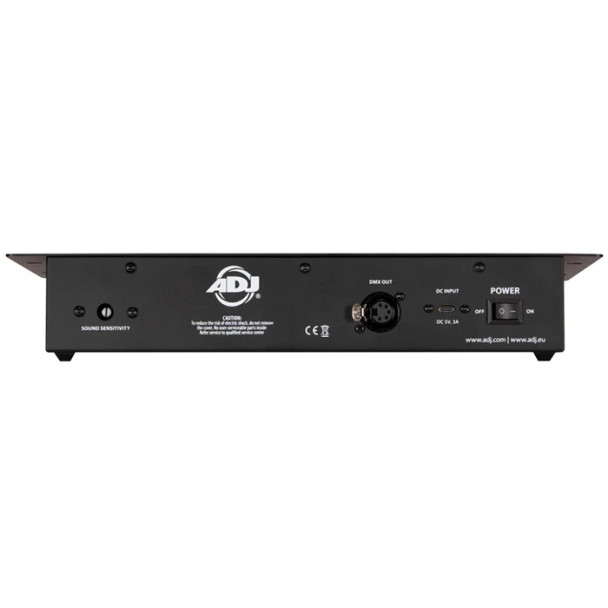

  • DMX output connector: 5-pin XLR
  • USB C Charging port (Charges most mobile phones and tablets)
  • Power In: 5VDC 3A UL approved power supply (Included)
  • Power consumption: 15 Watts (3 Amps)
  • Approvals: CE, cETLus and FCC
  • IP Rating: IP20
  • Dimensions: 14.2” x 7.2” x 2.7” (360 x 183 x 69mm)
  • Weight: 4lbs. (1.74kgs.)
  • Ambient Usage Temperature: -20°C ~ 40°C
  • Storage Temperature: -30°C ~ 45°C
