Description

American DJ ElectraPix Bar 8 Linear Fixture

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge, .5-Meter battery powered, wireless DMX lighting solution. Packed with advanced features, this fixture boasts eight 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either batteries or wall outlets, it offers up to 20 hours of battery operation.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Bar 8 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. Additional, up to four ElectraPix Bar 8 fixtures may be mounted vertically to the VFB1 floor base (sold separately). The fixture's control options include DMX512, Aria X2 Wireless DMX, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Bar 8 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Bar 8, where innovation meets performance.

8 Pixel, Hex Color LED (RGBAL+UV) LED Bar
Battery or Wall Powered
Up to 20 Hour Battery Operation
Battery Operation (Menu Option)
Individual Pixel Control
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,700K ~ 9,900K)
English & Spanish User Menu
Built-In Alarm
Color Calibrated LED's
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.3Hz ~ 11Hz)
Electronic Dimming
Attach up to four (4) ElectraPix Bar 8 to the Accu Stand VFB1 vertical floor base

Source:

(8) 20W Hex Color RGBAL+UV Foreground LED's
(32) 0.2W RGB Background LED's
50,000 Hour Average Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

2,300K ~ 9,900K White Color Temperature Range
17° Beam Angle
45mm Lens Diameter x8

Physical:

IP65 Housing
OLED Digital display
L Track system for locking accessories / rigging
Glare Shield
Diffusion Filter slot
Angle adjustable feet
Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16

Control:

DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
IR (Includes UCIR24 wireless remote)
(9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 48, 52 & 66 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode

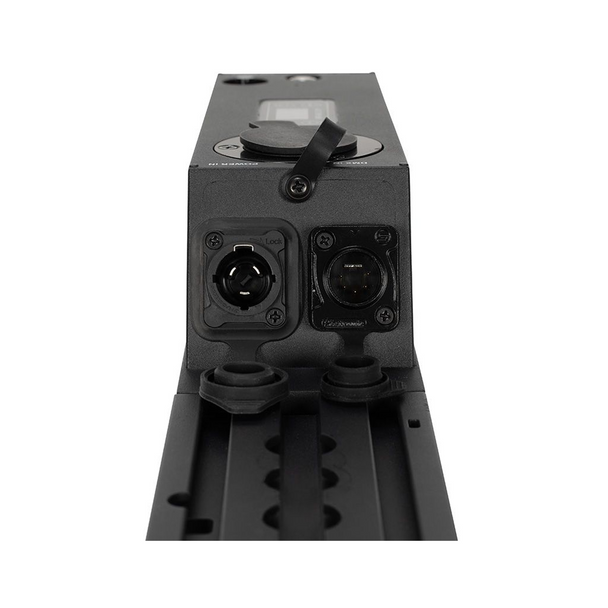

Connections:

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
Outdoor Locking Power Sockets
Battery Charging Socket

Dimensions & Weight:

Length: 3.37” (85.7mm) Width: 23.24” (590.3mm) Height: 9.79” (248.6mm)
Weight: 14 lbs. (6.4 kg)

Power:

AC100-240V/50Hz-60Hz Input
60W Power Consumption
Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium ion
Battery Capacity: 7,000mAh
Battery Voltage: 22.2V
Charge Time: 6 Hours (To Full)
Up to 20 Hour Battery Operation
Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications & IP Rating:

CE
cETLus (Pending)
FCC
IP65

Included Accessories:

(1) Outdoor Locking Power Cable
(1) UCIR24 Remote
(1) 20° Diffusion Filter

Optional Accessories:

Accu Stand VFB1 (Floor Base)
LTrack A2 (LTrack Adapter Only)
LTrack CA2 (LTrack Adapter with Narrow Clamp)
EPIX B816 IPCB: replacement charging base and power supply
