Description

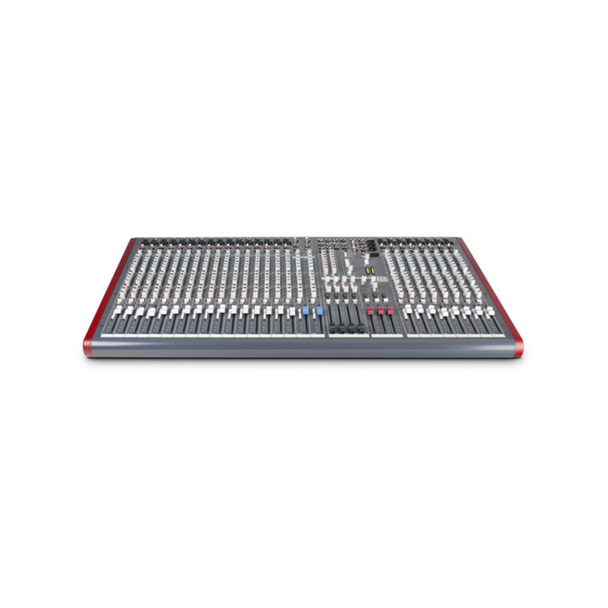

The Allen & Heath ZED-28 is a 28-channel analog mixer offering versatile I/O and a user-friendly workflow for use in home and project studio recording, houses of worship, and live sound reinforcement. The 24 mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 4-band EQ with sweepable mids, while the two stereo channels have 1/4" inputs and 4-band EQ with fixed mids. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.
The six aux sends are ideal for routing to floor monitors and outboard time-based effects. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to four group outputs, two matrix outs, and two headphone outputs; multi-segment LED meters clearly indicate your group and main output levels. Patch additional stereo sources into the RCA stereo returns and 2-track input. The 2-track RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard. The ZED-28 also boasts an external talkback mic input with an adjustable level and the ability to route the talkback signal to the first four aux's or to all main outputs.
24 Mono Inputs
Two Stereo Inputs
Flexible EQ Section
Inserts
Direct Outputs
Independent Aux Sends
4-Bus Group Outputs
USB Connection
Flexible Outputs
Integrated Talkback Facilities
Tech Specs
Number of Analog Input Channels: |
28 |
Number of Mic Preamps: |
24 |
Mix Routing: |
Stereo Main Mix / Mono Aux Bus/Subgroup |
EQ: |
4-Band EQ |
Built-In Effects: |
No |
USB I/O: |
1x USB-B 1.1 |
Wireless: |
No |
Rack Mountable: |
No |
