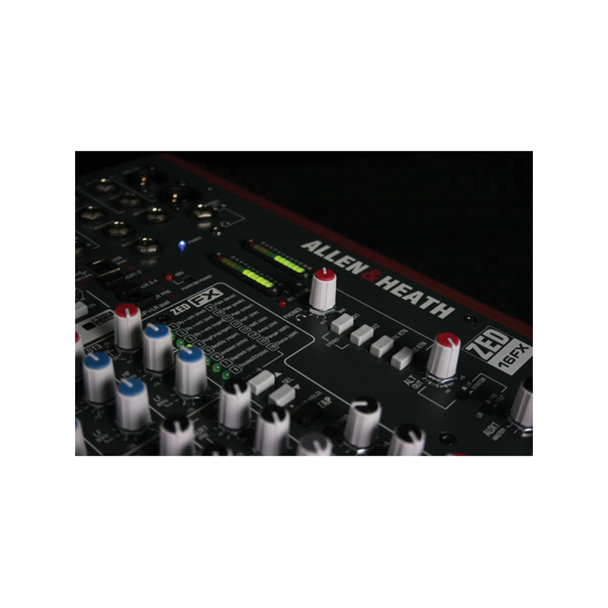

Allen & Heath ZED-16FX 16-Channel Recording and Live Sound Mixer with FX & USB

$999.99

Description
Tech Specs
Delivery & Returns

Description

The Allen and Heath ZED-16FX Mixing Console is a flexible, compact mixing desk for today's home studio, project recording and small live sound reinforcement applications. The ZED-16FX features 16 inputs comprised of 10 mono and 3 stereo channels. The mono inputs provide high quality microphone preamps and three-band EQ. The ZED-16FX features a USB connector for direct integration with Mac and Windows computers and a copy of Sonar LE recording software is included. In addition to all this, the mixer's internal effects engine delivers up to 16 high quality effects for recording and live sound reinforcement.

Built-in Effects

16 time-delay effects, designed for small groups who don't want to carry around an effects unit with their gear, but still want great quality FX at their gigs and on their recordings.

USB Connection

A USB connection provides direct connection to Mac and Windows computers. Sonar LE recording software is also included.

10 Mono Inputs

There are 10 mono channels with line and microphone input connections.

Three Stereo Inputs

The Three stereo channels feature stereo-paired 1/4" phone connectors for stereo devices such as recorders, effects, keyboards, etc.

Flexible MusiQ EQ Section

ZED-16FX features a responsive 3-band, swept mid frequency EQ design which utilizes MusiQ - with optimized slope (or Q factor) for equalizing individual instruments.

Inserts

Inserts on all mono channels and stereo output provide flexible routing and control to outboard processors, effects, monitors, etc.

Balanced Outputs

The main output section feature a pair of balanced XLR connectors.

Tech Specs

Total # Of Inputs:	16
Mic/Line Inputs:	3-pin XLR Balanced Microphone x10 1/4" Phone Balanced Line x10
Stereo Line Inputs:	ST1 - ST3 1/4" Phone L/R Stereo
In-Line Inputs/Returns:	No
AUX Sends:	1/4" TRS Phone x3 4 Total sends, 1 reserved for internal effects
AUX Returns:	Dedicated USB Return, Aux 1-2, Aux 3-4, L/R Pre
Inserts:	1/4 TRS Phone x12 (Mono chs and Main Stereo Out)
BUS (Group) Outputs:	No
2 Trk Master I/O:	Main Output: Balanced 3-pin XLR
ALT I/O:	USB Connector 1/4" Phone Mono Out
Monitor Outputs:	RCA Stereo Phono - ALT Out RCA Stereo Phono - REC Out
EQ Section:	3-Band with Mid Sweep On all Mono Channels 2-Band On Stereo Channels
USB:	USB Audio In/Out: USB 1.1 compliant 16-bit Sample Rate: 32, 44.1, or 48kHz
Dimensions:	18.3 x 3.85 x 18.3"
Weight:	18.7 lb
