Description

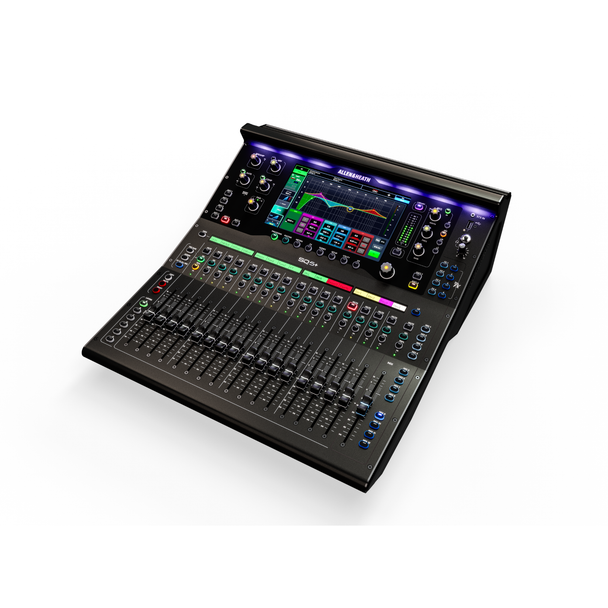

Compact and rack-mountable, the SQ5+ puts the full feature set into the smallest frame in the range. 17 motorised faders, 8 assignable SoftKeys and 4 built-in RackUltra FX engines give you flagship-tier processing and comprehensive hands-on control. Add the 19” rack kit and it’s as at home in a fixed installation as it is on the road.
Record. Stream. Mix
SQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app.
Capture. Playback. Virtual Soundcheck
The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.
Automatic Mic Mixing
SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24 channel AMM’s can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events.
Features
Audio and Processing:
- 96kHz XCVI Core
- 48x Inputs to Mix
- 12x Stereo Aux/Group Mixes + LR
- 6x Mono/Linkable Matrix
- Full Channel and Mix processing (HPF, PEQ/GEQ, Comp, Gate)
- DEEP Processing ready
- 8x Rack Extra FX Engines with dedicated send and return channels
- 4x RackUltra FX Engines with dedicated send and return channels
Digital I/O:
- 128×128 Intelligent SLink Port for Everything I/O expansion and connection to other A&H consoles
- 1x I/O Port for option cards (SLink, Dante, Waves and MADI cards available)
- 1x AES3 Stereo Digital Output Socket
USB Recording & Playback
- USB A: 16 Channels @ 96kHz
- USB A: 32 Channels @ 48kHz
- USB B Interface: 32×32 @ 96kHz
- USB B Interface: 32×32 @ 48kHz
Analogue I/O:
- 16x XLR Mic/Line Input Sockets
- 12x XLR Output Sockets
- 3x Stereo Line Input Sockets (4x TRS ¼” sockets, 1x 3.5mm TRS socket)
- 1x XLR Talkback Socket
- 2x TRS Output Sockets
- Stereo Headphone Output
Control:
- 17x 100mm Motorised Faders
- 8x SoftKeys
- 6x Channel Strip Layers
- 9” Touchscreen with dark GUI
- Configurable single/dual Footswitch Connection
- Remote control via free apps – Windows/MacOS/iOS/Android
Why We Like This
It combines advanced processing, flexible recording options, and professional expansion capabilities in a compact rack-friendly mixer.
FAQs
Q: Can the SQ5+ record directly to USB drives?
Yes, the integrated SQ-Drive allows direct recording and playback via USB storage devices.
Q: Does it support Dante networking?
Yes, optional Dante expansion cards are supported.
Q: Is this mixer suitable for livestreaming and recording?
Yes, the built-in USB audio interface supports multitrack recording, streaming, and virtual soundcheck.
