Allen & Heath SQ-7 48-channel Digital Mixer

Based on Allen & Heath's acclaimed XCVI 96kHz FPGA audio engine, the SQ-7 digital mixer delivers extensive live sound mixing capabilities. Even with its powerful processing, the SQ-7 delivers best-in-class audio quality with less than 0.7ms of latency. You'll have a lot of flexibility when it comes to creating monitor mixes, with up to 12 stereo mixes (groups or auxiliaries) in addition to the main LR out. Eight stereo FX engines provide studio-quality effects, with dedicated returns. Complete with a 32 x 32 USB audio interface, and dedicated controls for mixing convenience, the Allen & Heath SQ-7 is a smart mixing solution for live music, worship sound, and educational facilities.

A capable mixer that's ready to expand

Right out of the box, the SQ-7 digital mixer offers 48 input channels. You have 33 faders for hands-on mixing, arranged in six fader layers for managing larger mixes. The SQ-7 also offers an SLink port for remote audio and expansion. And a 64-channel I/O port is ready for network audio integration.

Manage large mixes easily with Automatic Mic Mixing

When you're mixing a multi-mic setup, you'll find the SQ-7's Automatic Mic Mixing capabilities to be a huge help. It's also a fantastic "safety net" when relying on inexperienced volunteers to manage the sound system. With Automatic Mic Mixing, you can be sure that you'll never experience an excessive imbalance between mic levels in large multi-mic applications.

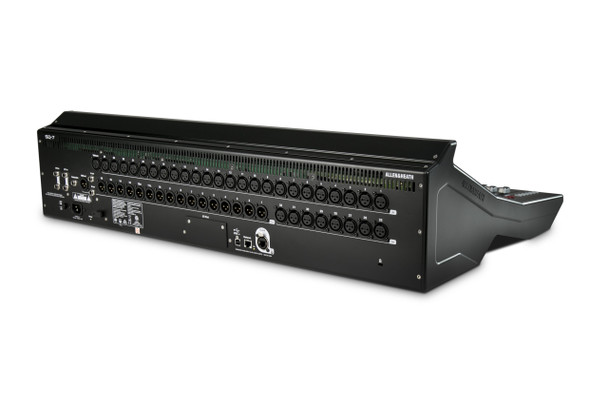

Built-in audio interface and comprehensive I/O

Multitrack recording is made simple with the Allen & Heath SQ-7, with its built-in 32 x 32 USB audio interface. Engineers also appreciate the convenience of direct recording to a USB drive. A 64-channel I/O port is also present for connecting to network audio. And an SLink port allows for remote audio and I/O expansion.

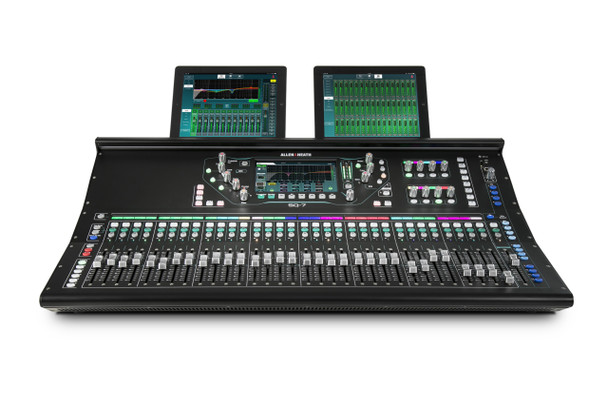

SQ Apps for engineers and performers

Allen & Heath offers two free apps that will take your SQ7 experience to a new level of flexibility. For engineers, the SQ MixPad app (iOS/Android/macOS/Windows) gives you remote access to all main mixing functions, and offers offline editing for show prep. For performers, the SQ4You personal mixing app allows up to eight performers to craft their own monitor mixers from their iOS or Android devices to suit their personal preferences, so the engineer can focus on their main mix.

Features:

• 48-input digital mixer with 96kHz FPGA processing
• Best-in-class audio quality, with less than 0.7ms latency
• 33 faders for hands-on mixing, with 6 fader layers
• Create up to 12 stereo mixes in addition to the main LR mix
• SQ MixPad app (iOS/Android/macOS/Windows) for wireless mixing and offline show prep
• SQ4You personal mixing app (iOS/Android) allows up to 8 performers to craft their own monitor mixes
• 3 stereo matrices
• 8 stereo FX engines with dedicated effects returns
• 7-inch capacitive touchscreen for navigation
• SLink port for remote audio and I/O expansion
• 64-channel I/O port for network audio
• Built-in 32 x 32 USB audio interface for multitrack recording
• SQ-Drive allows for direct recording to a USB drive
• Dedicated physical controls, plus 8 assignable SoftKeys
• Automatic Mic Mixing makes it easy to manage large multi-mic setups
• AES digital output
• Rackmountable
