Description

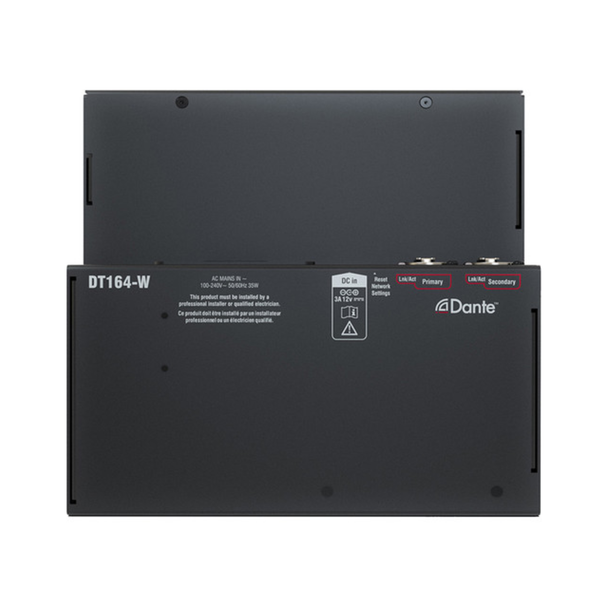

The Allen & Heath DT164-W is a 16x4 wallmount Dante/AES67 audio I/O expander offering tight integration with dLive and SQ Series mixers for live stage applications such as houses of worship, concert venues, and theaters. It features 16 low-noise microphone preamps and four line outputs, all on balanced 3-pin XLR connectors. 48V phantom power is selectable per input while 16 LEDs indicate the phantom power status for all inputs. Internal 96 kHz converters deliver the detailed audio quality and high resolution that modern productions demand.
The primary and secondary etherCON ports boast a locking mechanism to prevent accidental disconnection and allow simple hookup to your Dante or AES67 audio network. Directly control gain, pad, and phantom power settings for the DT164-W's preamps via your dLive or SQ mixer. With primary and backup powering methods and multiple mounting options, the DT164-W is well suited for permanent installation in small- or large-scale venues.Features
- 16 mic/line inputs and four line outputs in a versatile wallmount design for permanent installation
- Reversible mounting frame allows for in-wall or on-wall mounting
- Compatible with a standard 12×12" NEMA box or equivalent, or mounted in a floor pocket for stage use
- Acclaimed Allen & Heath preamps with 96 kHz converters
- Primary and secondary locking etherCON ports
- Supports operation in redundant mode for simultaneous connection to primary and secondary Dante networks or in switched mode for daisy-chaining Dante expanders or configuring a digital split between FOH (Front of House) and monitor mixers
- Add up to 16 units to an dLive or SQ system when equipped with an SQ Dante or dLive 96 kHz Dante card (all available separately)
- Gain, pad, and phantom power settings are controllable from dLive or SQ mixers
- 16 phantom power status LEDs
- Compatible with AES67
- Ready for Dante Domain Manager
- IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation
- DC power can be used as redundant power supply
- Compatible with ACE Backstage 174SLBK stage pocket system
Tech Specs
Power Source: |
AC Input, AC Adapter with Power Brick (Included) |
AC Input Power: |
100 to 240 VAC, 50 / 60 Hz |
DC Input Power: |
12 VDC at 3 A |
Power Consumption: |
40 W (Maximum) |
Dimensions: |
8.3 x 8.3 x 3.4" (Excluding Box) 16.3 x 14.8 x 9.8" (Including Box) |
